LANCOM 1724 VoIP
Business VoIP Router with integrated IP PBX for ISDN and SIP telephony at sites with up to 4 ISDN exchange lines
- IP PBX for ISDN and 8 SIP subscribers (up to 32 with VoIP-32 Option)
- Four ISDN ports (NT/TE) for 8 parallel ISDN channels
- SIP proxy for registration with providers and upstream VoIP PBXs
- SIP gateway with transparent transition between SIP and ISDN
- Intelligent call routing and number translation
- Stateful-inspection firewall and VPN gateway
|
|
 Data Sheet | Declaration of Conformity | Compatibility of LANCOM VoIP |
| Options | RoHS/WEEE declaration of conformity | Manual - PBX functionalities |
| Accessories | ||
| Rear view |
| Distribution |
|
The Business VoIP Router LANCOM 1724 VoIP is a powerful IP PBX with up to 8 parallel ISDN voice channels at the exchange line or for integrating smaller or mid-sized sites with existing complex ISDN infrastructures.
Four switchable ISDN ports offer flexibility and investment protection when migrating existing ISDN PBXs to Voice over IP. It can cater for up to 32 direct telephony subscribers, or it can break-out any number of subscribers to Internet SIP gateways.
It supports ISDN point-to-point connections, i.e. with a main number and extension numbers, and it supports SIP trunking as well, all of which makes the LANCOM 1724 VoIP a business solution that is ready for the future.
More than just a new PBX.
The combination with ISDN or SIP telephones like the LANCOM VP-100 makes a separate PBX completely superfluous. All of the basic functions of the traditional telephone are provided by the LANCOM router's VoIP Call Manager – for up to 32 subscribers and four ISDN outside lines.
At the same time, the professional security, routing and network functions, including VPN, provide everything that modern companies need for their data networks.
Even Voice over VPN or Voice over WLAN (with separate Access Points) can be used in parallel with data networking. Free updates to the solution provide savings through consolidation for true protection of this future-proof investment.
More Telephony.
Voice connections can be automatically directed over existing VPN connections between company sites. Not only are these calls secured from interception; by using flat rate connections, there are no additional costs, either.
Small and mid-sized companies can even save themselves complete local PBXs by equipping new installations with a LANCOM VoIP router instead. LANCOM opens up a cost-effective migration path between technologies of the "old and new world" because existing ISDN telephones and PBXs can be integrated and operated side by side with VoIP terminal equipment.
Four ISDN ports can be freely configured as internal or external connections and offer eight parallel ISDN voice channels. This allows, for example, an existing ISDN PBX to be additionally equipped with SIP and connected to an upstream VoIP PBX. Subscribers can simultaneously make calls via ISDN telephones, SIP equipment, or softphones to other SIP or ISDN subscribers, both internally and externally. The transition between SIP and ISDN is automatic and invisible to the user.
ISDN backup, load balancing and VRRP combined with an Ethernet port as an additional WAN interface provide SIP connections with redundancy and high reliability. This ensures that telephony is just as reliable as ever, even with VoIP.
More Security.
The integrated firewall with the latest security functions such as stateful inspection, Intrusion Detection and Denial-of-Service protection is supplemented by dynamic bandwidth management and comprehensive functions for backup, high-availability and redundancy. The integrated VPN gateway that fulfills the IPSec standard, and the optional hardware accelerator provide optimal security for connecting telecommuters and branch offices thanks to the high-security 3-DES or AES encryption and support of digital certificates.
More Benefits.
The versatile functions for address translation and routing allow the connection of completely different networks over common infrastructure. Existing networks at partner companies, home-office workstations or subsidiaries can be integrated into the VPN without problem. The management systems LANconfig and LANmonitor are included and offer not only cost-effective remote maintenance of entire installations along with highly convenient setup wizards, but also full real-time monitoring and logging. What’s more, service providers benefit from the broad range of scripting methods and professional access with individual access rights for administrators via SSH, HTTPS, TFTP and ISDN dial-in.
More Certainty for the Future.
From the very start, LANCOM products are designed for a product life of several years. They are equipped with hardware dimensioned for the future. Even reaching back to older product generations, updates to the LANCOM Operating System—LCOS—are available several times a year, free of charge and offering major features.
LANCOM offers unbeatable protection of your investment!
|
Detailled information regarding this topic
Manual VoIP PBX Functionalities
Compatibility of LANCOM Voice over IP

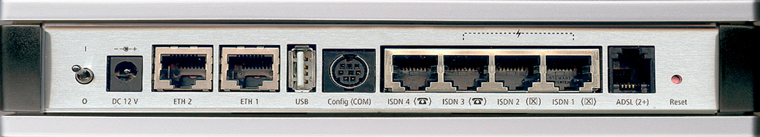

Rear view
 |
|
