Instances

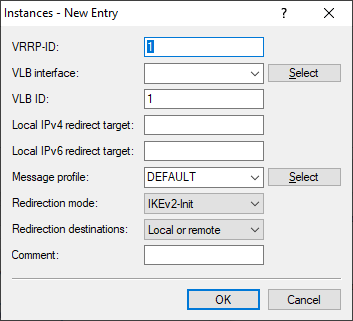

Configure IKEv2 load balancer instances in the Instances table.

VRRP-ID

VRRP-ID (Router ID) to be used for this IKEv2 load balancer instance. VRRP must be enabled and configured for this VRRP-ID on this device.Possible values:

0 to 255

Default: 1

VLB Interface

Defines the interface or logical network on which the IKEv2 load balancer should accept VPN tunnels. VRRP must also be configured and active on this interface.

VLB ID

Defines the unique identifier of the load balancer instance. Default: 1

Local IPv4 redirect target

IPv4 address or FQDN where the device should accept VPN tunnels. A VPN client will be redirected to this address by the master in the load balancer group.

Note: This is not the virtual VRRP IP address.

Local IPv6 redirect target

Global IPv6 address or FQDN where the device should accept VPN tunnels. A VPN client will be redirected to this address by the master in the load balancer group. Link-local addresses are not supported.

Note: This is not the virtual VRRP IP address.

Message profile

Message profile used for this instance. The message profile includes the parameters for the status protocol, which the device uses to communicate its status information to the load balancer group.Default: DEFAULT.

Important: If an IPv6 address is configured here, the IPv6 firewall rule ALLOW_VLB must also be enabled.

Redirection mode

Defines the phase during the IKEv2 negotiation in which the VPN gateway redirects clients to another gateway.

Note: This parameter is only effective if the device is the VRRP master.

Possible values:

IKEv2-Init (Default)

The redirect message is sent within the IKE_SA_INIT response of the VPN gateway.

IKEv2-Auth

The redirect message is sent during the IKE_AUTH phase after the client has authenticated with the VPN gateway.

Redirection destinations

Defines the redirection target to which VPN clients are forwarded.

Note: This parameter is only effective if the device is the VRRP master.

Possible values:

Local or remote

Clients are redirected to both the device's own IP address and other remote gateways in the group.

Remote only

Clients are only redirected to other VPN gateways. This results in VPN clients being evenly distributed among all other gateways except the master gateway.

Note: This configuration is suitable for scenarios where the load balancer master only distributes clients but does not terminate VPN tunnels itself.

Comment

Provide a meaningful description for this entry.
