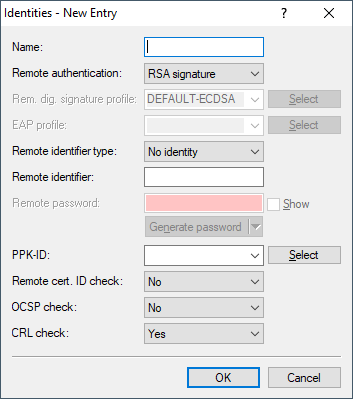

Identities

Use this table to configure additional remote identities. You select this name when grouping remote identities in the Identity list.





Name
Contains the unique name of this entry.
Remote authentication
Sets the authentication method for the remote identity.
Rem. dig. signature profile
If the Remote authentication is set to "Digital signature", enter the name of the remote digital signature profile here.
Remote identifier type
Displays the ID type that the device expects from the remote identifier. The device interprets the entry under "Remote identifier" accordingly. Possible entries are:
  • No identity: The device accepts any ID from the remote device. The device to ignores entries in the "Remote identifier" field.
  • IPv4 address: The device expects an IPv4 address as the remote ID.
  • IPv6 address: The device expects an IPv6 address as the remote ID.
  • Domain name (FQDN): The device expects a domain name as the remote ID.
  • E‑mail address (FQUN): The device expects an e‑mail address as the remote ID.
  • ASN.1 Distinguished Name: The device expects a distinguished name as the remote ID.
  • Key ID (group name): The device expects the group name as the remote ID.
Remote identifier
Contains the remote identity. The significance of this entry depends on the setting under "Remote identifier type".
Remote password
Contains the password of the remote identity.
PPK ID
Enter the name of the PPK-ID (Post-quantum Preshared Keys as per RFC 8784) from the table of PPKs (Post-quantum Preshared Keys).
Remote certificate ID check
This option determines whether the device checks that the specified remote identity is included in the received certificate.
OCSP check
With this setting you enable the Online Certificate Status Protocol (OCSP), which checks the validity of the remote station's certificate in real time. In order to use the OCSP check for individual VPN connections, you must first enable the global OCSP client for VPN connections and then create profile lists of the valid certificate authorities used by the device to perform the real-time check.
Important: Please note that the check via OCSP only checks the locking status of a certificate, but it does not check the mathematical correctness of its signature, validity period, or other usage restrictions.
CRL check
This setting enables the checking of an X.509 certificate by certificate revocation list (CRL), which checks the validity of the remote station's certificate.
Important: You should only switch this off if you are checking by other means, e.g. with OCSP.
