DHCPv6 options

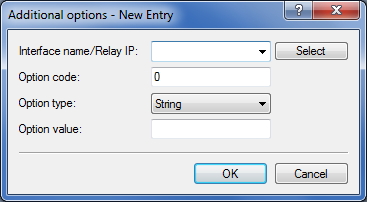

This feature allows the DHCPv6 server to assign DHCPv6 options to its DHCPv6 clients.

Interface name/Relay IP
Sets the name of the IPv6 interface or the remote IPv6 address of a relay agent for which the DHCPv6 server should distribute the additional option
Important: In order for this option to be delivered to clients, the request sent by a client must must also contain the corresponding option code.
Option code
Contains the code of the DHCPv6 option.
Option type
Specifies the type of the DHCPv6 option. You can select from:
String
Accepts the characters as a string.
Important: All other types use comma- and space-delimited lists; empty list elements are ignored; a list may be empty and results in an option of length 0.
Integer types
Accepts whole numbers. These are decimal, octal with a leading 0, and hexadecimal with a leading 0x; capitalization is ignored. The value range for Integer8 is from -128 to 127; for Integer16 from -32768 to 32767; and for Integer32 from -2147483648 to 2147483647. A leading + or - sign is generally allowed.
IPv6 address
Accepts IPv6 addresses (case insensitive) in all permissible notations, including the mixed IPv4/IPv6 notation of mapped V4 addresses (e.g., "::ffff:1.2.3.4").
Domain list
Accepts all strings that produce labels of maximum 63 characters in length. Empty labels are allowed but are ignored. A domain list always ends with the empty label 0.
Hexdump
Expects each block to have hex numbers only, without a leading 0x. Each block is filled with a leading 0 for an even length and ends with the block bigendian.
Option value
Contains the contents of the DHCPv6 option, formatted according to the option type.
