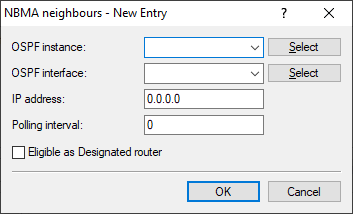

NBMA neighbors

Non-broadcast multi-access networks are networks containing multiple routers, but where broadcast is not supported. In this type of network, OSPF emulates operations in a broadcast network. Initially, a default router is selected for this purpose.
Note: The communication takes place not by multicast, but by unicast. Neighborhood connections must be configured manually, as the routers are unable to discover one another automatically by multicast.
OSPF instance
Contains the name of the OSPF instance.
OSPF interface
Contains the interface (IPv4 network or WAN remote site) on which OSPF is to be activated.
IP address
Contains the IPv4 address of the neighboring router (router at the remote end).
Poll interval
Contains the interval in which Hello messages are sent to this router.
Note: The value zero disables the transmission of Hello messages.
Eligible as default router
Specifies whether the local device itself is selectable as default router.
