Commands

Two commands are available under /Setup/Cloud-Provider/AWS:

Example: Using the commands in the action table

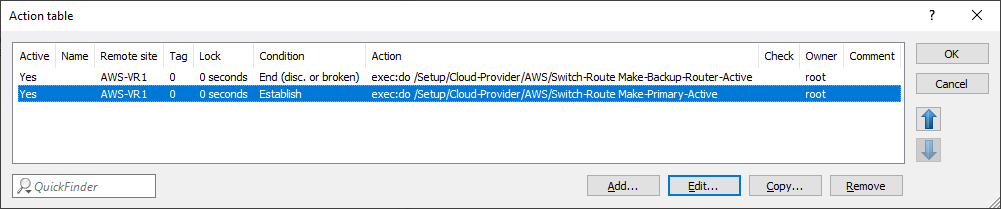

The backup vRouter has the following entries configured in the action table (Communication > General > Action table):





There are two profiles in the HA redundancy table that are referenced in the action table in the Switch-Route command. The first entry causes the backup vRouter to make itself the active router in the AWS routing table if the VPN tunnel (remote site AWS-VR1) to the primary router is disconnected or broken. If the VPN tunnel is reestablished, i. e. the primary router is available again, the primary router is reset as the next hop in the routing table.
