1-Click-VPN for networks (site-to-site)

The site-to-site-to-site connectivity of networks is now very simple with the help of the 1-Click-VPN wizard. It is even possible to simultaneously couple multiple routers to a central network.

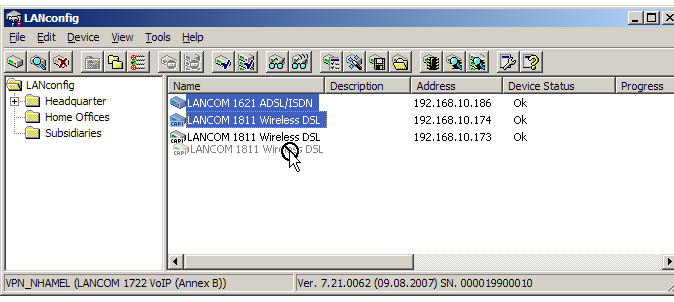

  1. In LANconfig, mark the routers at branch offices which are to be coupled to a central router via VPN.
  2. Use drag&drop by mouse to place the devices onto the entry for the central router.

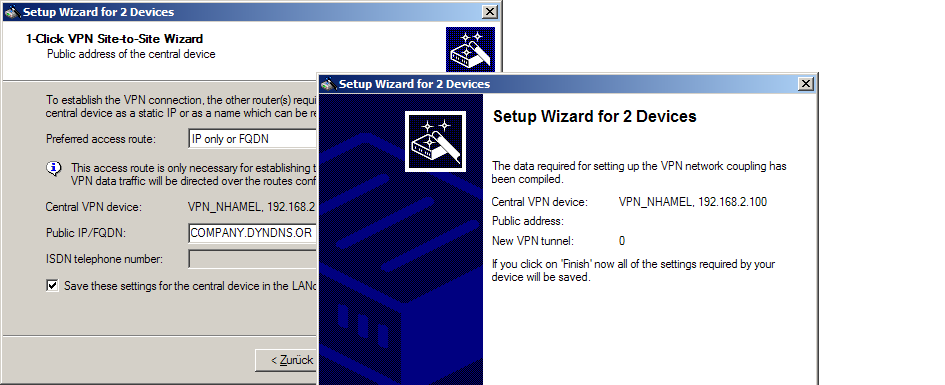

  3. The 1-Click VPN Site-to-Site Wizard opens. Enter a name for this access and select the address under which the router is accessible from the Internet.




  1. Select whether connection establishment is to take place via the name or IP address of the central router, or via an ISDN connection. Enter the address or name of the central router, or its ISDN number.
  2. The final step is to define how the networks are to intercommunicate:
    • The INTRANET at headquarters only is to be provided to the branch offices.
    • All private networks at the branch offices can also be connected to one another via headquarters.
    Note: All entries for the central device are made just once and are then stored to the device properties.
