Setting up RIP for separate networks

In most cases, it is not desirable for the local network structure to be propagated to the DMZ via RIP. Furthermore it is sometimes desirable to propagate routes to a network, but not to learn routes from that network (e.g. in the WAN). For this reason, the RIP function can be configured separately for each network.

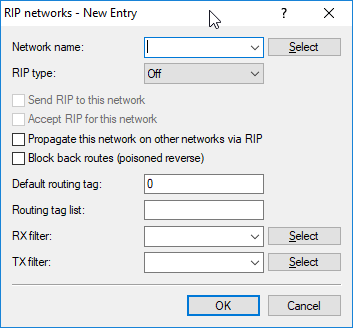

LANconfig: Routing protocols > RIP > RIP networks





Command line: Setup > IP-Router > RIP > LAN-Sites
