Standard settings in the LANCOM Content Filter

The following elements have been created in the default configuration of the LANCOM Content Filter:

Firewall rule
The preset firewall rule is named CONTENT-FILTER and uses the action object CONTENT-FILTER-BASIC.
Firewall action objects
There are three firewall action objects:
  • CONTENT-FILTER-BASIC
  • CONTENT-FILTER-WORK
  • CONTENT-FILTER-PARENTAL-CONTROL
These action objects work with the corresponding content-filter profiles.

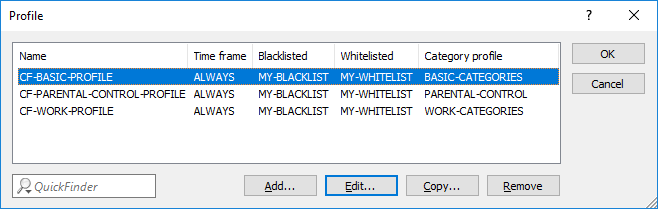

Content filter profiles
There are three content filter profiles. All content-filter profiles use the timeframe ALWAYS, the blacklist MY-BLACKLIST and the whitelist MY-WHITELIST. Each content-filter profile uses one of the predefined category profiles:
  • CF-BASIC-PROFILE: This content-filter profile features a low level of restrictions and works with the category profile BASIC-CATEGORIES.
  • CF-PARENTAL-CONTROL-PROFILE: This content-filter profile protects minors (e.g. trainees) from unsuitable Internet content, and it works with the category profile PARENTAL-CONTROL.
  • CF-WORK-PROFILE: This content-filter profile is intended for companies wishing to place restrictions on categories such as Job Search or Chat. It works with the category profile WORK-CATEGORIES.




Timeframe
There are two predefined timeframes:
  • ALWAYS: 00.00-23.59 hrs
  • NEVER: 00.00-0.00 hrs
Blacklist
The preset blacklist is named MY-BLACKLIST and it is empty. Here you can optionally enter URLs which are to be forbidden.
Whitelist
The preset whitelist is named MY-WHITELIST and it is empty. Here you can optionally enter URLs which are to be allowed.
Category profiles
There are three category profiles: BASIC-CATEGORIES, WORK-CATEGORIES and PARENTAL-CONTROL. The category profile specifies the categories which are to be allowed and forbidden, and for which one an override can be activated.
