This table is used to configure the RPKI validator or RPKI cache. The supported transport protocol is TCP.

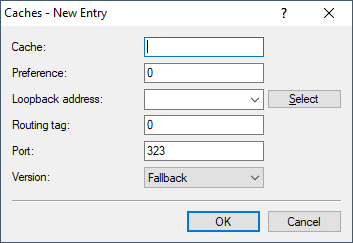

The settings for the RPKI caches in LANconfig are located under .
- Cache
- IPv4, IPv6 address, or hostname where the RPKI cache is reached.
- Preference
- Preferred cache where multiple caches are used. Lower values result in a higher preference. Default: 0
- Loopback address
- You can optionally specify a source address that the RPKI client uses as the target address, instead of the one that would normally be selected automatically. If you have configured loopback addresses, you can specify them here as sender address.
- Routing tag
- Enter the routing tag for setting the route to the cache. Default: 0
- Port
- The port of the RPKI cache. Default: 323
- Version
- Protocol version of the PRKI-RTR protocol operated. Possible values:
- Fallback
- Communication with the cache starts with version 1 and falls back to version 0 if necessary.
- Zero
- Protocol version 0 is used to communicate with the cache.
- One
- Protocol version 1 is used to communicate with the cache.
