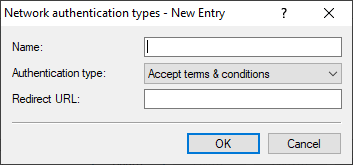

Network authentication types

Using this table, you manage addresses to which the device forwards stations for an additional authentication step after the station has been successfully authenticated by the hotspot operator or any of its roaming partners. Only one forwarding entry is allowed for each authentication type.

Important: Please remember to set the ASRA bit in the Interfaces table if you set up an additional authentication step.
Name
Assign a name for the table entry, for example Accept Terms & Conditions. This name will appear later in the ANQP profile in the selection for Network auth. type list.
Authentication type
Choose the context from the list, which applies before forwarding. Possible values are:
Accept terms & conditions
An additional authentication step is set up that requires the user to accept the terms of use.
Online enrollment
An additional authentication step is set up that requires the user to enroll online first.
HTTP redirection
An additional authentication step is set up to which the user is forwarded via HTTP.
DNS redirection
An additional authentication step is set up to which the user is forwarded via DNS.
Redirect URL
Enter the address to which the device forwards stations for additional authentication.
