Configuration management with LANconfig

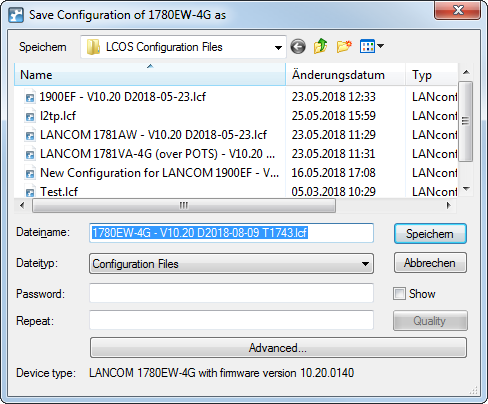

You can use LANconfig to save a configuration file by right-clicking on the corresponding device in the list of devices. From the context dialog, open the save dialog under Configuration management > Save as file.





The following entries are available:

File name
LANconfig composes the file name from various pieces of information (including version number, date and time). Change the name to suit your needs.
File type
Choose whether this is a configuration file or something else.
Password
Specify a password if you want to encrypt the configuration file before downloading it.

Under Advanced you can set optional parameters that are processed by the device when a configuration file is loaded automatically (auto-load). Use this to customize the configuration.

You can use LANconfig to upload a configuration file to the device by right-clicking on the device where the configuration is to be uploaded. From the context dialog, open the restore dialog under Configuration management > Restore from file.

Select the required configuration file, enter the password (if applicable) and click Open to upload the configuration to the device.
