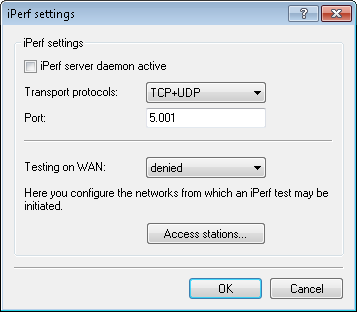

In LANconfig, you configure iPerf under and clicking on iPerf settings.
- iPerf server daemon active
- Activates or deactivates the iPerf server daemon. Rather than setting up the iPerf server to run permanently at this point, you can optionally start a one-off test by accessing the command-line console via SSH and starting a temporary iPerf server.
- Transport protocols
- Here you set which transport protocols are to be measured for bandwidth.
- Port
- This port is used for communications between the iPerf client and server ("5001" by default).
- Testing on WAN
- Here you determine whether measurements are also permitted over a WAN connection.
Note: Depending on the provider contract, additional connection charges may arise from measurements over WAN connections.

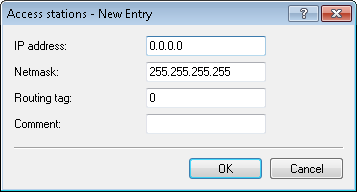

- Access stations
- In order restrict iPerf access to certain stations only, enter the connection data into this table.
- IP address
- Enter the IPv4 address of the remote station.
- Netmask
- Enter the netmask of the remote station.
- Routing tag
- Enter the routing tag that specifies the connection to the remote station.
- Comment
- Enter a descriptive comment for this entry.
