Collectors

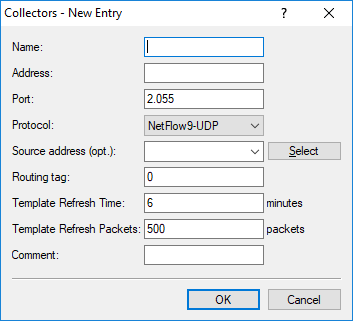

You can configure the collectors for NetFlow/IPFIX under Logging/Monitoring > Protocols > NetFlow/IPFIX > Collectors.





Name
Unique name of the NetFlow collector. This name is referenced in other tables.
Address
IPv4, IPv6 address or host name of the collector.
Port
NetFlow collector port. Usually port 2055 for NetFlow 9 and 4739 for IPFIX.
Protocol
Protocol version used by the NetFlow collector. Possible values are NetFlow 9 over UDP or IPFIX over UDP.
Source address
Optionally, specify a source address.
Routing tag
Specify a routing tag if a particular route is to be used to the collector.
Template refresh time
Specifies the time in minutes after which a NetFlow template record is refreshed. The value 0 deactivates the periodic refresh of template records.
Note: A NetFlow template packet is refreshed either after the specified time in minutes or after the corresponding number of Flow packets, whichever comes first.
Template refresh packets
Specifies the number of packets after which a NetFlow template record is refreshed. The value 0 deactivates the refresh of template records based on a packet counter.
Note: A NetFlow template packet is refreshed either after the specified time in minutes or after the corresponding number of Flow packets, whichever comes first.
Comment
Optionally enter a meaningful comment as a description.
