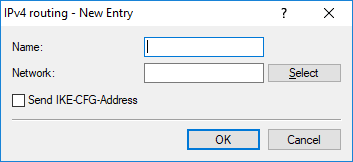

IPv4 routing

Use this table to configure the IPv4 networks that the device propagates via dynamic routing as per IKEv2.

Name

Contains the unique name of this entry.

Network

Contains the comma-separated list of IP subnets. Networks are entered in the following available formats:

• IP address
• IP address/netmask
• IP address/netmask@tag
• IP address/prefix length
• IP address/prefix length@tag
• IP interface name
• IP interface name@tag

The specification with routing tag is used for HSVPN. See also HSVPN in section Connection list. The IP subnets are configured under IPv4 > General in the section Own addresses.

Send IKE-CFG address

As a client, the device sends the retrieved CFG-mode address to the VPN peer (server).

Note: This option is required only if the remote site does not automatically create a routing entry for assigned IP addresses. LANCOM routers generate the necessary routes automatically.
