This menu item enables you to adjust the settings for the trace data and the device time.

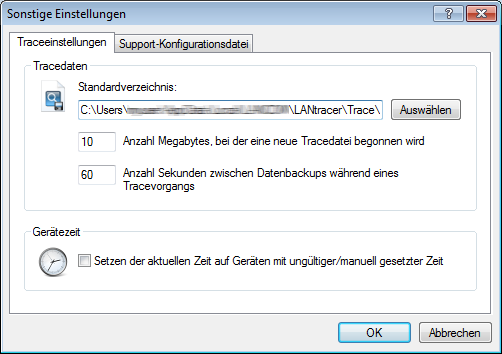

Trace data
When starting a trace with LANconfig or LANmonitor, a backup file with the current trace data is saved automatically. The settings for the trace backup are located in the Trace data section. Enter
- ... the maximum size of a trace-backup file in megabytes. When this size is reached with an ongoing trace, a new trace backup file is created automatically.
- ... an interval (in seconds) after which the LANtracer stores the trace output to the file.
- ... a directory where LANtracer stores the trace files by default.
Device time
To obtain trace output containing the correct time, enabling this option allows LANtracer to check the device time before running a trace: If the time of the device is wrong or was set manually, it is corrected automatically.
