Manage bandwidth profiles

Using the window Public-Spot > Wizard > Bandwidth profiles, you have the ability to set up profiles that limit the available bandwidth (uplink and downlink) for Public Spot users. You can select a predefined profile or create your own bandwidth profiles that meet your needs. These profiles can be assigned to new users when access is created for the Public Spot by calling the Setup-Wizard Cerate Public Spot account in WEBconfig.

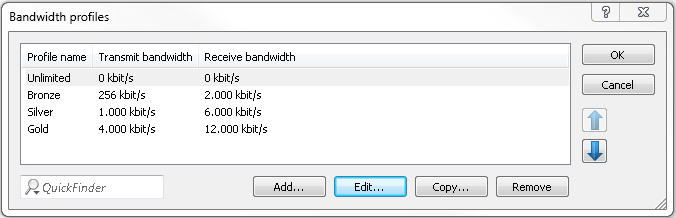

Integrating predefined bandwidth profiles

From the four predefined profiles, select the bandwidth profile that closest meets your requirements:




Unlimited
No restriction in the transmit and receive bandwidth.
Note: These values refer to the transmit bandwidth (TX) and receive bandwidth (RX) from the perspective of the client.
Bronze
The transmit (TX) bandwidth is 256 kbps, the receive (RX) bandwidth is 2 Mbps.
Silver
The transmit (TX) bandwidth is 1 Mbps, the receive (RX) bandwidth is 6 Mbps.
Gold
The transmit (TX) bandwidth is 4 Mbps, the receive (RX) bandwidth is 12 Mbps.

You have the option of customizing the predefined entries to meet your requirements. Select the profile for editing and click the button Edit. Alternatively, you can create your own profiles.

Creating your own bandwidth profiles

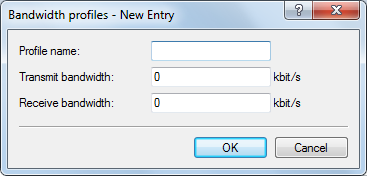

In order to add manual entries to the table Bandwidth profiles, click on the button Add....

The entries in the edit window have the following meaning:
