In order to configure the device as the L2TP network server (LNS) for authenticating RAS clients without configuring a RADIUS server in the device, you have two options:
-

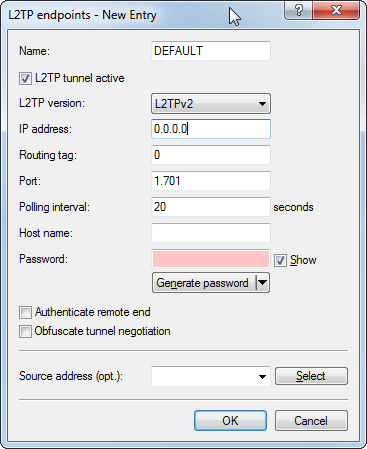

Under in the table L2TP endpoints, create an entry "DEFAULT".
The entry for the IP address is "0.0.0.0", because the IP address of the L2TP-LAC is unknown to the device.
-

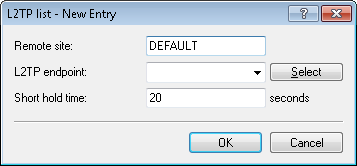

Then, under in the table L2TP list, configure a "DEFAULT" entry.
If the L2TP tunnel is to be connected permanently, set the short hold time to "9999".
-

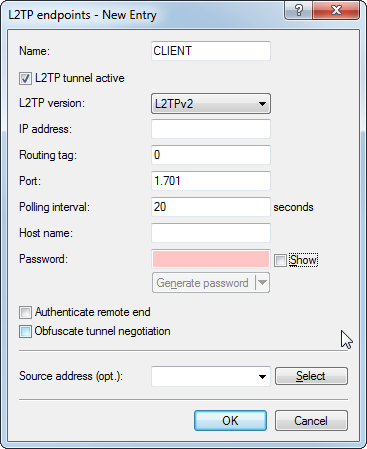

Alternatively, you make a separate entry for the RAS client (e.g., "CLIENT") under in the L2TP endpoints table.
-

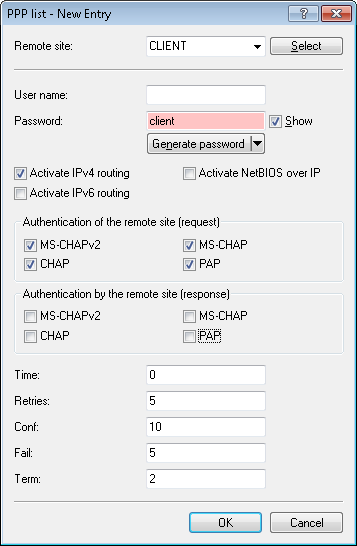

You then configure a new entry for the client under in the PPP list.
