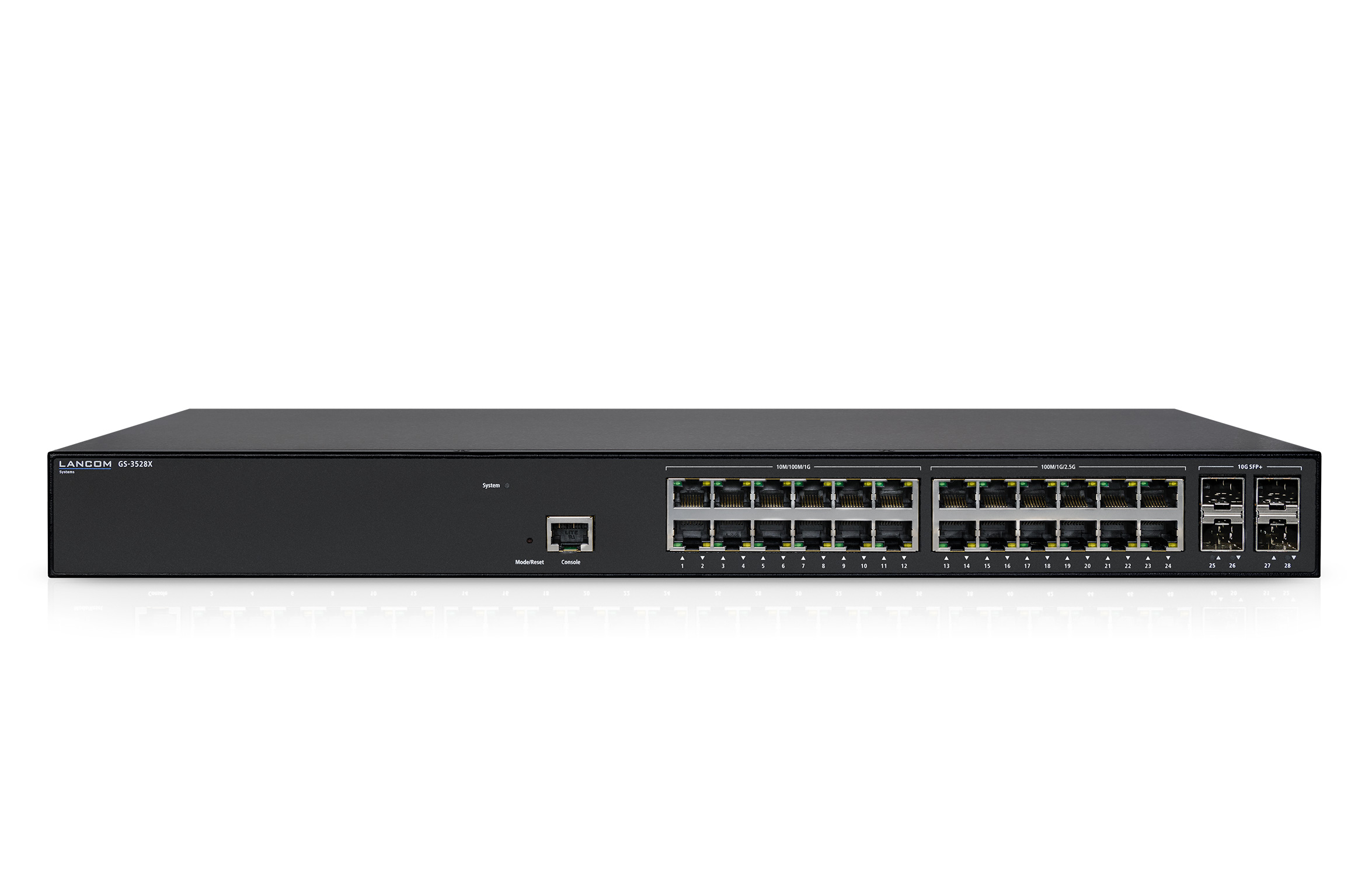

Multi-Gigabit Ethernet access switch for data-intensive networks

This 28-port multi-Gigabit access switch is the ideal solution for data-intensive infrastructures. With 12x 2.5-Gigabit Ethernet ports, it provides the high-performance basis necessary for operating Wi-Fi 6 access points and other network components with high performance requirements. Also featuring 12x Gigabit Ethernet ports, 4x SFP+ ports, and basic layer-3 features such as static routing and DHCP server, this is the expert device for smart management with numerous security features for small and medium-sized networks.

Technical features

  • Multi-Gigabit access switch with 12x 2.5-Gigabit Ethernet ports, 12x 1-Gigabit Ethernet ports, and 4x SFP+
  • Basic layer-3 features like static routing and DHCP server
  • Security with configurable access control on all ports as per IEEE 802.1X
  • Secure remote management through TACACS+, SSH, SSL, and SNMPv3
  • SD-LAN – for quick and easy configuration via the LANCOM Management Cloud
  • Ideal in combination with Wi-Fi 6 access points like the LX-6400 and LX-6402
  • IPv6 and IPv4 support for modern enterprise networks
  • 5-year warranty on all components

Ready for Wi-Fi 6!

More throughput, lower latency. What exactly do these key words behind the new WLAN standard Wi-Fi 6 signify?

How you can benefit from the new technology with the ax-enabled LANCOM devices is shown in our "Wi-Fi 6 Video" and on the Technology page.

LANCOM Switch2Cloud promotion promo banner

Promotion for resellers

Order a LANCOM Fully Managed Switch now and receive the cost- and time-saving "software-defined networking" for three years free of charge with it!

Starting immediately and until June 30, 2020, every LANCOM Fully Managed Switch comes with a free 3-year license of the LANCOM Management Cloud.

Advantages

High power output on 28 ports

The LANCOM GS-3528X is equipped with 12x 2.5-Gigabit Ethernet ports and 4 SFP+ ports that support transmission rates of up to 10 Gbps. With a data throughput of 164 Gbps on the backplane, it offers full performance even under load. This makes the multi-Gigabit access switch a high-performance basis for modern network infrastructures in any industry or field of application.

A high-performance basis for Wi-Fi 6

Thanks to 12 high-performance 2.5-Gigabit Ethernet ports, the LANCOM GS-3528X is the ideal LAN-side basis for integrating the new Wi-Fi 6 standard into modern infrastructures. The increased data rates when using Wi-Fi 6 requires 2.5-Gigabit Ethernet, as the performance requirements exceed those of a 1-Gigabit Ethernet port. This switch enables the operation of up to 12 Wi-Fi 6 access points or other network components with high performance requirements.

Static routing for fast data exchange

The LANCOM GS-3528X supports the basic layer-3 feature static routing and thus the shift of certain routing tasks from the router to the switch. Administrator-predefined network routes, through one or multiple network segments, enable fast data transfer especially in scenarios with high data volumes and relieve the router accordingly. Newly available router capacities can then additionally be used to manage external data traffic. As a result, the entire network efficiency is increased.

DHCP server functionality

As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3528X supports this basic layer-3 function and thus takes over the IP management of the connected network.

Configurable access control

The LANCOM GS-3528X excludes rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single-based, multi-based, and MAC-based).

Secure remote management

Secure communication protocols such as SSH, SSL and SNMPv3 make the LANCOM GS-3528X ideal for professional remote network management. The switch also support the TACACS+ protocol for authentication, authorization, and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.

SD-LAN - days become minutes

The LANCOM GS-3528X offers fast and easy network integration and automatic configuration assignment with the LANCOM Management Cloud - without manual configuration. In this way, even complex networking scenarios are easy to administer. SD-LAN eliminates the need for a single device configuration for holistic network orchestration. In addition, automatic VLAN assignment to the desired switch ports is possible. The configurations can be coordinated with each other across locations and network architectures, and at the same time rolled out or updated at the click of a mouse.

IPv6 and IPv4 support

Thanks to its dual-stack implementation, the LANCOM GS-3528X operates in pure IPv4, pure IPv6 or in mixed networks. Applications such as SSL, SSH, Telnet or TFTP can continue to be operated on IPv6 networks. Supported IPv6 features includes stateless auto configuration, neighbor detection, and MLD snooping.
