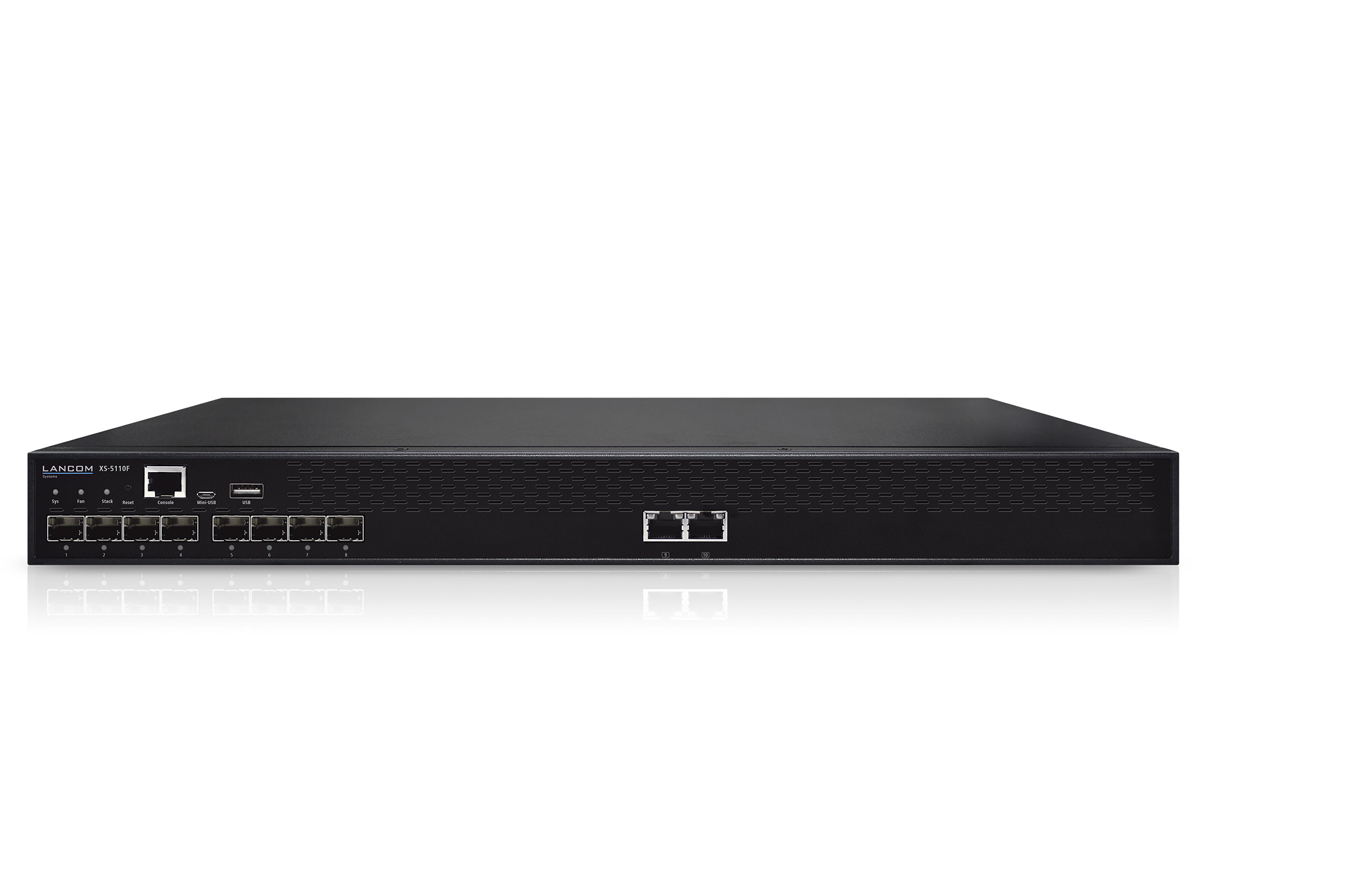

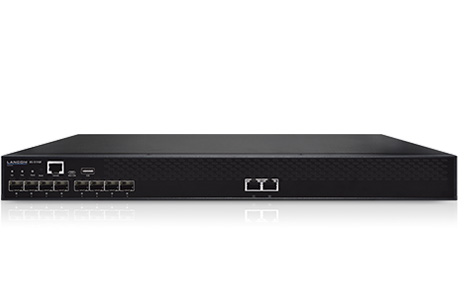

Preview: LANCOM XS-5110F

Managed 10G fiber aggregation switch for smaller distributed networks

Due to its 8 future-proof fiber-optics SFP+ ports this 10G aggregation switch acts as a superordinated instance for connecting further access switches in smaller distributed networks. Two further multi-Gigabit Ethernet ports (10/5/2,5/1G) enable a flexible and cost-efficient integration of high-performance network components. Thanks to the holistic LANCOM network management the device can be configured dynamicallyand automatically via the LANCOM Management Cloud (SD-LAN) or via cloud-enabled web GUI as well as via cloud-enabled CLI.

Technical features

  • Multi-gigabit aggregation switch with 8x SFP+ ports (10G) and 2x combo ports (10/5/2.5/1 multi-gigabit ethernet / SFP+)
  • Layer-3 features such as static routing and DHCP server
  • Ready for policy-based dynamic routing (activation by future software upgrade)
  • 5-year warranty on all components
  • Security with configurable access control on all ports as per IEEE 802.1X and access control lists
  • Secure remote management through TACACS+, SSH, SSL, and SNMPv3
  • SD-LAN – for quick and easy configuration via the LANCOM Management Cloud

Advantages

Scenario of LANCOM network topologies with aggregation and access switches

Flexible network topologies

The LANCOM XS-5110F is an ideal aggregation instance for the networking of access switches. Depending on the size of the installation, it integrates into the network topology either at the top level facing the WAN (2-tier design) or at the second level between a core switch and the access switches (3-tier design).

Maximum performance on all ports

With its fiber-optics and multi-Gigabit Ethernet (mGbE) ports, the LANCOM XS-5110F offers future-proof port performance for networks that meet the increasing demands occuring from increasingly powerful clients, a growing number of IoT devices, and cloud applications. Equipped with 8 SFP+ ports (10G) and 2 further backward-compatible 10G mGbE ports, this powerful networking device is used to connect access switches and is ideal for smaller distributed networks.

LANCOM configurable access control

Configurable access control

The LANCOM XS-5110F stops rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single, multi, and MAC-based) or by ACLs (access control lists).

Static routing & DHCP server

The LANCOM XS-5110F can handle layer-3 tasks to offer, for example, a DHCP server for IP-address management or to define fixed network routes across one or more network segments. This takes load off of the router or firewall and increases the overall speed of data exchange. Capacities are freed up to handle the external data traffic and improve the overall network efficiency.

Software defined device management in the LANCOM Management Cloud WEBconfig

SD-LAN – easy management of complex networking scenarios

With the LANCOM Management Cloud, the LANCOM XS-5110F offers quick and easy network integration as well as automatic provision of the configuration. With SD-LAN, holistic network orchestration replaces the configuration of individual devices and allows the automatic assignment of VLANs to the required switch ports. Configurations are customized to the multi-site network architecture and, with a click of a mouse, they are rolled-out or updated simultaneously to every site.

Secure remote management

Secure communication protocols such as SSH, SSL and SNMPv3 mean that the LANCOM XS-5110F is ideal for the professional management of remote networks. The switch also supports the TACACS+ protocol for authentication, authorization and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.

LANCOM - IT security made in Germany

Security "Made in Germany"

As a holder of the "IT Security made in Germany" trust mark, LANCOM is committed to keeping its products free of secret backdoors. This makes the LANCOM switches ideal for operation in sensitive environments and always in accordance with General Data Protection Regulations (GDPR). In addition, the implemented secure boot function already offers hardware-side protection against secretly infiltrated malware.

Secure Terminal Access

This function provides access to the command line of the LANCOM switch ("CLI tunneling") or its web GUI ("GUI Tunneling") directly from the LANCOM Management Cloud—encrypted and without leaving the cloud interface. Be it trace or ping commands for rapid troubleshooting, access to low-level configuration parameters and detailed statistics in the LCOS SX operating system, or secure remote access to third-party devices in the local network via the integrated SSH client—Secure Terminal Access offers expert functions and extensive diagnostic and troubleshooting commands on your devices.

Software Lifecycle Management with update guarantee

LANCOM regularly offers free updates for maximum investment protection. Major releases with new features, release updates with minor improvements and bug fixes are available not only for the entire product life cycle, but also for a period of two years after the product’s discontinuation. With a warranty in place, critical security fixes and the associated support are also guaranteed for two years after the announced end-of-sales.

Options & accessories

Recommended access switches

For best possible performance in your distributed networks, we recommend the switch aggregation via SFP+ (10G). The LANCOM access switches listed here are equipped with SFP+ ports and are hence the ideal combination with the LANCOM XS-5110F.

LANCOM GS-3528 series LANCOM GS-3528XP
LANCOM GS-3152 series LANCOM GS-3152XSP LANCOM GS-3152XP LANCOM GS-3152X
LANCOM GS-2328 series LANCOM GS-2328 LANCOM GS-2328F
