LANCOM 1784VA

Business VoIP & VPN router for professional telephony and high-speed Internet via VDSL2 / ADSL2+

The LANCOM 1784VA offers interfaces for VoIP and ISDN end devices, optionally for up to two ISDN connections or up to four internal ISDN connections (2 x TE / NT und 2 x NT). This way the LANCOM 1784VA is especially suited for locations with a former ISDN connection, as existing ISDN telephony systems can be continued operated at the new SIP trunk connections after converting to All-IP. The router also offers high-speed Internet thanks to its VDSL2/ADSL2+ modem and secure site connectivity with IPSec VPN.

Advantages

Continued use of existing ISDN and analog components

The LANCOM 1784VA translates between ISDN, analog, and VoIP. Along with current VoIP equipment, you can continue to operate your existing ISDN and analog components without having to replace them - a cost-saving and professional solution, as the LANCOM 1784VA with its four ISDN interfaces is ideal for locations with former ISDN connections. Already existing telephony systems can still be operated with new SIP trunk connections.

Professional telephony with the LANCOM VCM (Voice Call Manager)

The LANCOM Voice Call Manager is already integrated into the LANCOM 1784VA and provides advanced telephony support. It handles the telephony management and controls all of the PBX components and functions of the router.

Integrated Session Border Controller

The LANCOM Voice Call Manager provides common functionalities of a Session Border Controller: For instance, it enables the secure separation of external (insecure) and internal (secure) networks. Ensuring a high voice quality, voice packets are preferred due to bandwidth reservation (Quality of Service). On top of that, the VCM as a SIP proxy enables the professional management of signaling and voice data for a high security during establishment, processing, and termination of phone calls. - including the necessary conversion of protocols via transcoding.

High-speed Internet access

The LANCOM 1784VA is a professional, high-performance VPN router for high-speed Internet access with its integrated VDSL2/ADSL2+ modem. Thus it offers maximum flexibility for the transition from ADSL to the high-speed Internet with VDSL - thanks to VDSL2 Vectoring support offering up to 100 Mbps.

Professional VPN solution

VPN solutions from LANCOM offer flexible, economical and secure networking of headquarters, subsidiaries, branches, sites, and home-office workplaces in small, mid-sized and large enterprises. The LANCOM 1784VA supports up to 5 simultaneous IPsec VPN channels, with optional upgrades for 25 channels.

Security Made in Germany

LANCOM provides maximum security "Made in Germany": The entire LANCOM core portfolio is developed, manufactured and tested based on highest data security and quality standards. On top of that, the proprietary "closed-source" firmware LCOS is developed by our own employees at our German headquarters in a certified high-security environment - ensuring highest security, encryption, and quality standards.

Maximum agility with LANCOM SD-WAN

Get set with SD-WAN! Benefit from LANCOM SD-WAN and our holistic approach to gain even more agility in handling your site connectivity. Replace your traditional, static and manually configured network infrastructure by an automated, software-defined WAN. Learn more here.

LANCOM SD-WAN

Technical features

  • Business VoIP VPN router for the continued operation of existing ISDN components after converting to All-IP
  • Professional telephony functions with the integrated LANCOM VCM (Voice Call Manager) & SBC (Session Border Controller)
  • Flexible professional router for high-speed Internet access thanks to VDSL2 and ADSL2+ modem

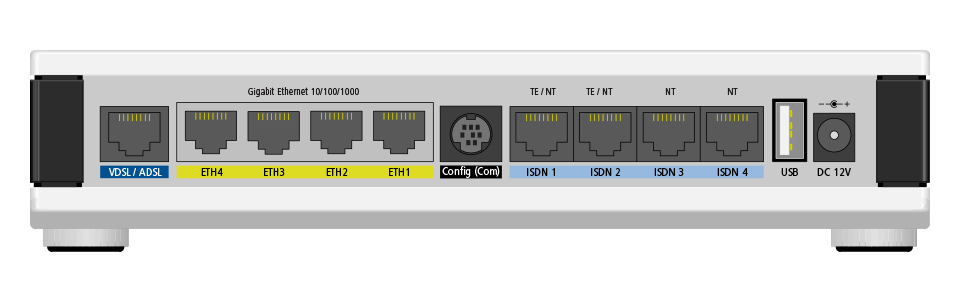

  • 4x internal ISDN connections for the connection to PBX systems with up to 4 S0 connections (2x NT and 2x TE/NT
  • Up to 8 simultaneous ISDN voice channels
  • 5 IPSec VPN channels (25 optional) for professional and secure site connectivity
  • Security Made in Germany
  • Maximum security, reliability, and future-proofness
