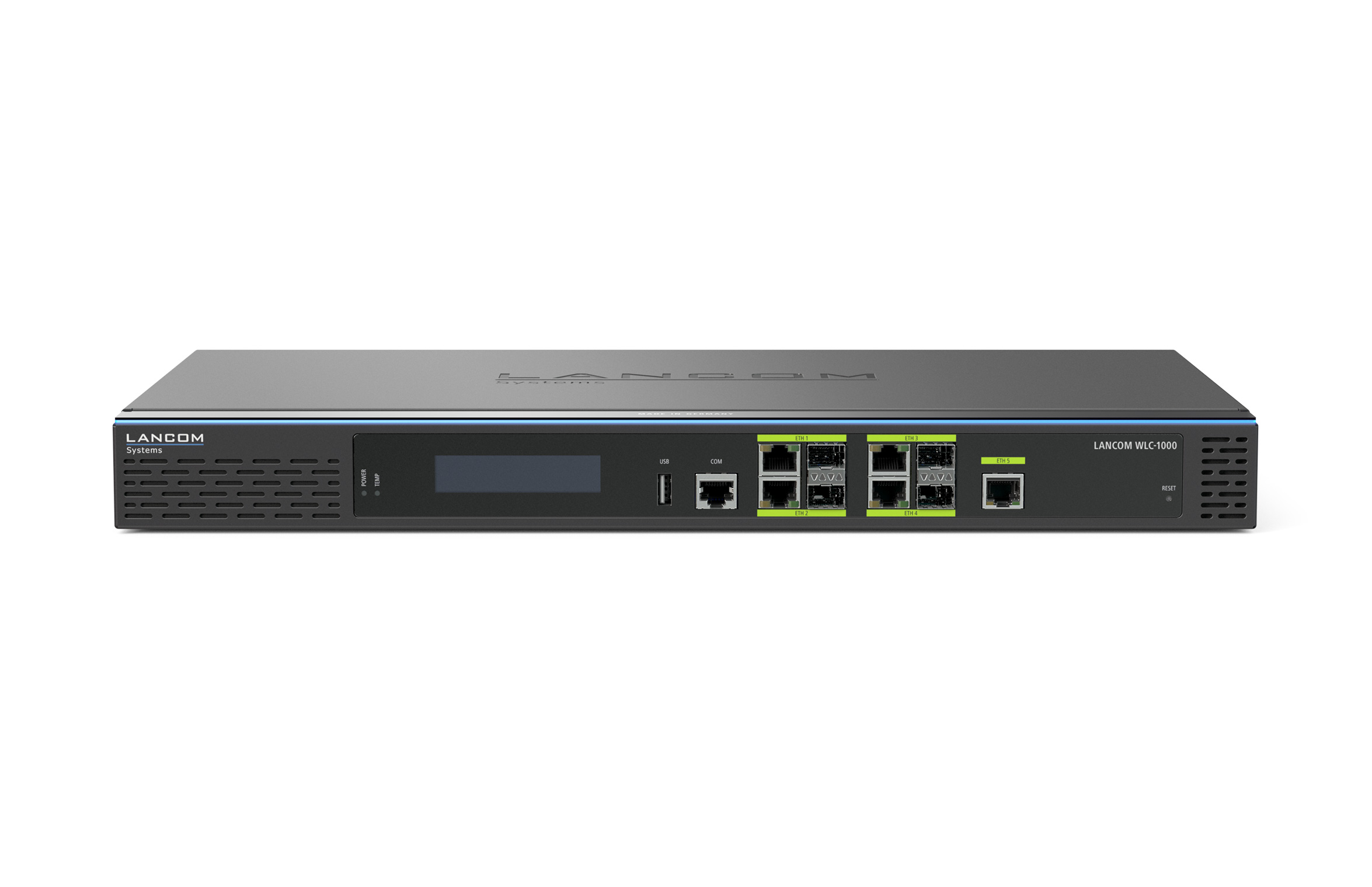

• LANCOM WLC-1000


WLAN management - centrally, intelligently, in your hands

As the central WLAN controller, the LANCOM WLC-1000 provides full control over mid-sized installations with 25 to 1,000 access points and WLAN routers, while keeping administrator workloads to a minimum. Zero-touch deployment automatically installs new access points and provisions them with custom configurations. Smart features, such as roaming optimization and the selection of bandwidth and Wi-Fi channels, ensure the best possible performance across even complex wireless networks. The LANCOM WLC-1000 saves time for the administrator and offers an outstanding Wi-Fi user experience.

Technical features

  • Central management of 25 to 1,000 access points and WLAN routers
  • Zero-touch deployment of access points
  • Optimized roaming behavior of Wi-Fi clients thanks to IEEE 802.11r and OKC
  • Comprehensive VLAN, RADIUS and IEEE 802.1X/EAP functions
  • Highest operational reliability without single points of failure
  • Dynamic WLAN optimization thanks to LANCOM Active Radio Control (ARC)
  • High availability of WLAN infrastructures through the High Availability Clustering option
  • Integrated LANCOM Public Spot XL Option


Central firmware rollout, monitoring & management

Positioned locally, the LANCOM WLC-1000 centrally configures and controls up to 1,000 access points and WLAN routers, so relieving the workload on network administrators and bringing massive time savings. WLAN controllers ensure uniform network control, security and reliability.

Zero-touch deployment

Quick and easy network integration of new access points as well as automatic provision of the configuration—without manual intervention. Once authenticated with the network, the Wi-Fi device immediately receives the appropriate configuration from the LANCOM WLC-1000.

Optimized roaming behavior of Wi-Fi clients

LANCOM WLAN controllers enable communications between managed access points and WLAN routers. This ensures that clients moving between two radio fields are efficiently transferred from one Wi-Fi device to the next—without disconnections.

VLAN, RADIUS and IEEE 802.1X/EAP features

A comprehensive array of virtualization and security features allows the highly efficient design of Wi-Fi networks in close accordance with the company's own security policies. The integrated VLAN feature supports multiple securely isolated Wi-Fi networks on a shared infrastructure. Professional security features give administrators precise control over who is authorized for network access.

Highest operational reliability

The LANCOM Smart Controller principle ensures the highest operational reliability: While the administrative data are routed through the controller, client payload data are sent directly from the access point to the router. If a controller fails, the access point switches to “stand-alone mode” and the communication between the client and access point remains intact. This avoids downtimes during everyday business due to employees losing access to the network or the failure of WLAN-controlled production facilities.

Active Radio Control for dynamic radio-field optimization

The LANCOM WLC-1000 supports the WLAN optimization feature LANCOM Active Radio Control. This intelligent combination of innovative features included with the LCOS operating system—such as Client Management (for client and band steering), adaptive noise immunity and RF optimization—improves Wi-Fi performance and supports administrators with professional tools for Wi-Fi management.

High availability

Combined with the LANCOM High Availability Clustering option, multiple WLAN controllers are grouped into one highly available device group. In this way, configuration changes, features and enhancements made on one WLC are automatically transferred between the other WLCs in the cluster: Not having to make manual changes on each individual device means massive time savings for administrators.

Maximum future viability

From the very start, LANCOM products are designed for a product life of several years. They are equipped with hardware dimensioned for the future. Even reaching back to older product generations, updates to the LANCOM Operating System family are available several times a year, free of charge and offering major features.

Options & accessories

Service & support

Included services

check icon3 years hardware warranty within the EU

check iconFree technical support for LANcommunity partners with valid warranty directly from LANCOM*

Charged technical manufacturer support for end customers and a warranty extension to 5 years are optionally available.

Optional services**

LANCOM Service Pack 24/7
Extended manufacturer support incl. 24/7 emergency hotline with next
business day (NBD) advance replacement in case of defect for 1, 3, or 5 years
as an option per device
Availability: 24h / 7d, delivery: NBD

S: 10230 / 10234 / 10238, M: 10231 / 10235 / 10239
L: 10232 / 10236 / 10240, XL: 10233 / 10237 / 10241
LANCOM Service Pack 10/5
Extended manufacturer support with next business day (NBD) advance
replacement in case of defect for 1, 3, or 5 years as an option per device
Availability: 10h / 5d, delivery: NBD

S: 10242 / 10243 / 10244, M: 10245 / 10246 / 10247
L: 10248 / 10249 / 10250, XL: 10251 / 10252 / 10253
LANCOM Warranty Advanced Option
Warranty extension to 5 years within the EU with next business day (NBD)
advance replacement in case of defect and extension with security
updates until the End of Life status of the device as an option per device

S: 10715, M: 10716
L: 10717, XL: 10718
LANCOM Warranty Basic Option
Warranty extension to 5 years within the EU and extension with security
updates until the End of Life status of the device as an option per device

S: 10710, M: 10711
L: 10712, XL: 10713
LANCOM MSP-Care 24/7
Extended manufacturer support incl. 24/7 emergency hotline for projects
Availability: 24h / 7d
(on request)
LANCOM Premium Support Access
Extended manufacturer support for projects
Availability: 10h / 5d
(on request)

* Availability: 8-10h / 5d, response time: 4h-1d (depending on partner level)
** Notes: Times are given in hours (h) per days (d). The options are available for different service categories (S, M, L, XL) as well as durations (1 year / 3 years / 5 years for LANCOM Service Packs) and can be easily added using the article numbers. The service category of each LANCOM device can be found in the LANCOM price list.
