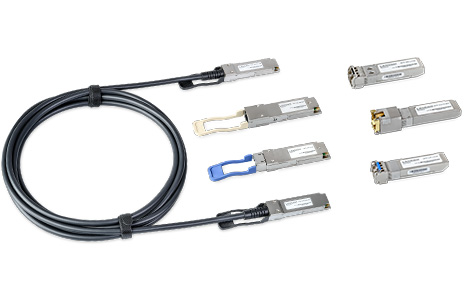

LANCOM SFP modules
Flexible connections for your switches, router and firewalls!
LANCOM switches, routers and firewalls with integrated SFP ports are characterized by maximum versatility in use. Be it for high-speed fiber-optic networking or as a copper-cabled Ethernet port: LANCOM SFP modules provide the specialized connections you need for your LANCOM device. And thanks to the tried-and-tested compatibility with LANCOM products, LANCOM SFP modules offer the best connections and highest reliability.
Fiber-optic SFP modules
The LANCOM SFP modules for fiber-optic networking of components in Gigabit speed are compatible with SFP ports of all of the switches, routers and Unified Firewalls listed in the table below.
LANCOM SFP-SX-LC1
Medium distances of up to 550 m
- 1000BASE-SX standard (SFP)
- Supports 50/125 µm (550 m cable length) and 62.5/125 µm (300 m cable length) multimode fiber
- Wavelength 850nm
- LC connector
- Up to 1-Gbps link speed
- Full-duplex mode
- Operating temperature 0°C – 70°C
- Support of digital diagnostic monitoring (DDM)*
LANCOM SFP-SX-LC10
Medium distances of up to 300 m
- 10GBASE-SR/SW standard (SFP+)
- Supports 50/125 µm (300 m cable length) multimode fiber
- Wavelength 850nm
- LC connector
- Up to 10-Gbps link speed
- Full-duplex mode
- Operating temperature 0°C – 70°C
- Support of digital diagnostic monitoring (DDM)*
LANCOM SFP-LX-LC1
Distances of up to 10 km
- 1000BASE-LX standard (SFP)
- Supports 9/125 µm (10 km cable length) single mode fiber
- Wavelength 1310nm
- LC connector
- Up to 1-Gbps link speed
- Full-duplex mode
- Operating temperature 0°C – 70°C
- Support of digital diagnostic monitoring (DDM)*
LANCOM SFP-LX-LC10
Distances of up to 10 km
- 10GBASE-LR/LW standard (SFP+)
- supports 9/125 µm (10 km cable length) singlemode fiber
- Wavelength 1310nm
- LC Connector
- Up to 10 Gbps link speed
- Full-duplex mode
- Operating temperature 0°C - 70°C
- Support of digital diagnostic monitoring (DDM)*
* This functionality is only supplied by SFP modules of the latest generation (to be recognized from the LANCOM logo).
LANCOM SFP-LR-LC25
Distances of up to 10 km
- 25GBASE-LR/LW SFP module
- Supports 9 µm singlemode fiber (max. distance 10 km)
- Wavelength 1310 nm
- Up to 25 Gbps Gigabit link speed
- Connection to SFP28 ports
- Swappable during system operation
LANCOM SFP-LR-LC40
Distances of up to 10 km
- 40GBASE-LR/LW-SFP module (QSFP+)
- Supports 9 µm singlemode fiber (max. distance 10 km)
- Wavelength 1310 nm
- Up to 40 Gbps Gigabit link speed
- Connection to QSFP+ ports
- Swappable during system operation
LANCOM SFP-SR-LC25
Medium distances of up to 300 m
- 25GBASE-SR/SW SFP module
- Supports 50 µm and 125 µm multi mode fiber (max. distance 300 m)
- Wavelength 850 nm
- Up to 25 Gbps Gigabit link speed
- Connection to SFP28 ports
- Swappable during system operation
LANCOM SFP-SR-MPO40
Medium distances of up to 300 m
- 40GBASE-SR/SW SFP module (QSFP+)
- Supports 50/125 µm multi mode fiber (max. distance 300 m)
- Wavelength 850 nm
- Up to 40 Gbps Gigabit link speed
- Module equipped with MPO port for connection to QSFP+-Port
- Swappable during system operation
Copper SFP modules
In order to use a SFP port of the devices listed in the table below for Gigabit speed over copper lines, we offer the following SFP modules:
LANCOM SFP-CO1
In order to use a SFP port of a router or switch for copper lines
- RJ45 Ethernet transceiver 1000BASE-T
- Up to 1-Gbps link speed
- Full-duplex mode
- Operating temperature 0°C – 70°C
Note: For operating LANCOM SFP-CO1 in a LANCOM switch, a firmware LCOS SX 3.30 RU3 or higher is required. The firmware is available in our download section.
LANCOM SFP-CO10-MG
10G media converter for using CAT6 Ethernet cables in SFP+ ports
- Multi-Gigabit Ethernet copper SFP module
- Up to 10 Gbps Gigabit link speed
- Cable length 30 m
- Multi-Gigabit (10/5/2.5/1) Ethernet capable
- Swappable during system operation
SFP Direct Attach Cable
Our range of direct attach cables for the networking of LANCOM switches:

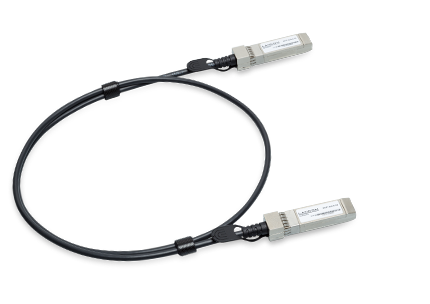

LANCOM SFP-DAC10-1M
1 m cable length
- Up to 10 Gbps link speed (1G / 10G)
- Full duplex operation
- Operating temperature 0°C - 70°C
- Swappable during system operation

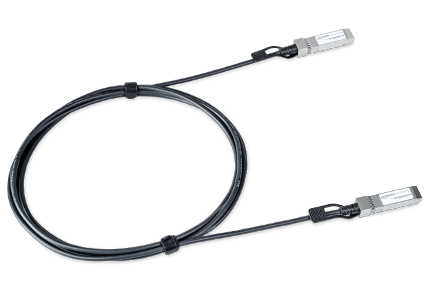

LANCOM SFP-DAC10-3M
3 m cable length
- Up to 10 Gbps link speed (1G / 10G)
- Full duplex operation
- Operating temperature 0°C - 70°C
- Swappable during system operation

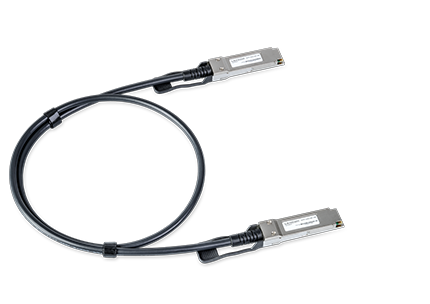

LANCOM SFP-DAC40-1M
1 m cable length
- Up to 40 Gbps link speed
- Full duplex operation
- Operating temperature 0°C - 70°C
- Swappable during system operation

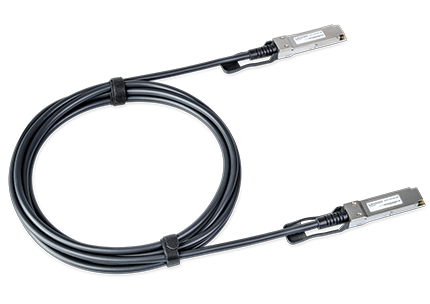

LANCOM SFP-DAC40-3M
3 m cable length
- Up to 40 Gbps link speed
- Full duplex operation
- Operating temperature 0°C - 70°C
- Swappable during system operation

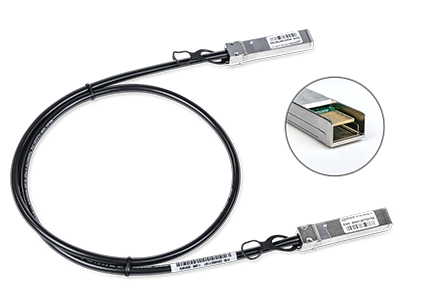

LANCOM SFP-DD-DAC50-1M
1 m cable length
- SFP-DD DAC stacking cable
- Up to 50 Gbps link speed (2x25G)
- Full duplex operation
- Connection to SFP-DD ports
- Operating temperature 0°C - 70°C
- Swappable during system operation
LANCOM SFP-DD-DAC50-2.5M
2.5 m cable length
- SFP-DD DAC stacking cable
- Up to 50 Gbps link speed (2x25G)
- Full duplex operation
- Connection to SFP-DD ports
- Operating temperature 0°C - 70°C
- Swappable during system operation
Note: For operating LANCOM SFP-DACs in a LANCOM switch, the firmware LCOS SX 3.30 RU3 or higher is required. The firmware is available in our download section.
Supported devices
Compatibility of SFP modules with LANCOM devices
| Supported devices | SFP-SX-LC1 / SFP-LX-LC1 |
SFP-SX-LC10 / SFP-LX-LC10 |
SFP-LR-LC25 / SFP-SR-LC25 |
SFP-LR-LC40 | SFP-SR-MPO40 | SFP-CO1 | SFP-CO10-MG |
| XS-6128QF | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| XS-5116QF | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| XS-5110F | ✔ | ✔ | ✔ | ||||
| GS-3528X series | ✔ | ✔ | ✔ | ||||
| GS-3510XP | ✔ | ✔ | ✔ | ||||
| GS-3126X series | ✔ | ✔ | ✔ | ||||
| GS-3152X series | ✔ | ✔ | ✔ | ||||
| GS-2352P | ✔ | ✔ | ✔ | ||||
| GS-2328 series | ✔ | ✔ | ✔ | ||||
| GS-2326P | ✔ | ✔ | |||||
| GS-2326+ series | ✔ | ||||||
| GS-2310 series | ✔ | ||||||
| GS-1326 | ✔ | ||||||
| WLC-1000 | ✔ | ||||||
| ISG-8000 | ✔ | ✔ | |||||
| ISG-4000 | ✔ | ✔ | |||||
| ISG-1000 | ✔ | ||||||
| 1906VA series | ✔ | ||||||
| 1900EF | ✔ | ||||||
| 1790EF | ✔ | ||||||
| R&S®UF-910 / UF-900 | ✔ | ✔ | |||||
| R&S®UF-500 | ✔ | ✔ |
Compatibility of direct attach cables with LANCOM devices
| Supported devices | SFP-DAC10-1M | SFP-DAC10-3M | SFP-DAC40-1M | SFP-DAC40-3M | SFP-DD-DAC50-1M | SFP-DD-DAC50-2.5M |
| XS-6128QF | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| XS-5116QF | ✔ | ✔ | ✔ | ✔ | ||
| XS-5110F | ✔ | ✔ | ||||
| GS-3528X series | ✔ | ✔ | ||||
| GS-3510XP | ✔ | ✔ | ||||
| GS-3126X series | ✔ | ✔ | ||||
| GS-3152X series | ✔ | ✔ | ||||
| GS-2352 series | ✔ | |||||
| GS-2328 series | ✔ | |||||
| ISG-8000 | ✔ | ✔ | ||||
| ISG-4000 | ✔ | ✔ | ||||
| R&S®UF-910 / UF-900 | ✔ | ✔ | ||||
| R&S®UF-500 | ✔ | ✔ |
