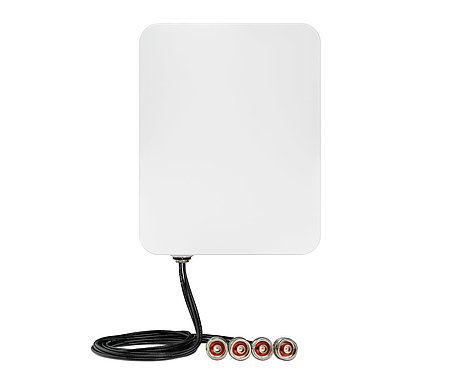

AirLancer ON-QT60

60° outdoor Wi-Fi sector antenna with 4x4 MIMO

The weatherproof LANCOM AirLancer ON-QT60 sector antenna with a beam angle of 60° is ideal for Wi-Fi coverage over larger areas, such as warehouses and factories. With 4x4 MIMO support, it ensures maximum performance for reliable Wi-Fi client connectivity in difficult environments, especially where reflections and scattering occur. Due to its tri-band capability on all four ports, this antenna is perfect for mixed operation in the 2.4, 5, and 6 GHz bands.

Technical features

WLAN sector antenna with approx. 60° beam angle and +7 dBi gain in 2.4 GHz, 5 GHz, and 6 GHz
4x4 MIMO technology for reliable WLAN coverage in harsh environments
Future-proof due to support of the new 6 GHz band

Mounting kit for wall and pole mounting, cable and adapter included
Connects to LANCOM indoor access points via the adapter AirLancer AN-RPSMA-NJ
Especially suitable for use with the LANCOM outdoor access points OX-6402 and OW-602

Comparison of the LANCOM Wi-Fi outdoor antennas

In which application scenario and with which LANCOM access points are the LANCOM Wi-Fi accessories best suited? What is the safest way to connect access points and antennas outdoors?

Get to know the different types of antennas in the AirLancer portfolio and compare features such as frequency bands, antenna gain, connectors, and cables.

Comparison table Wi-Fi outdoor antennas
