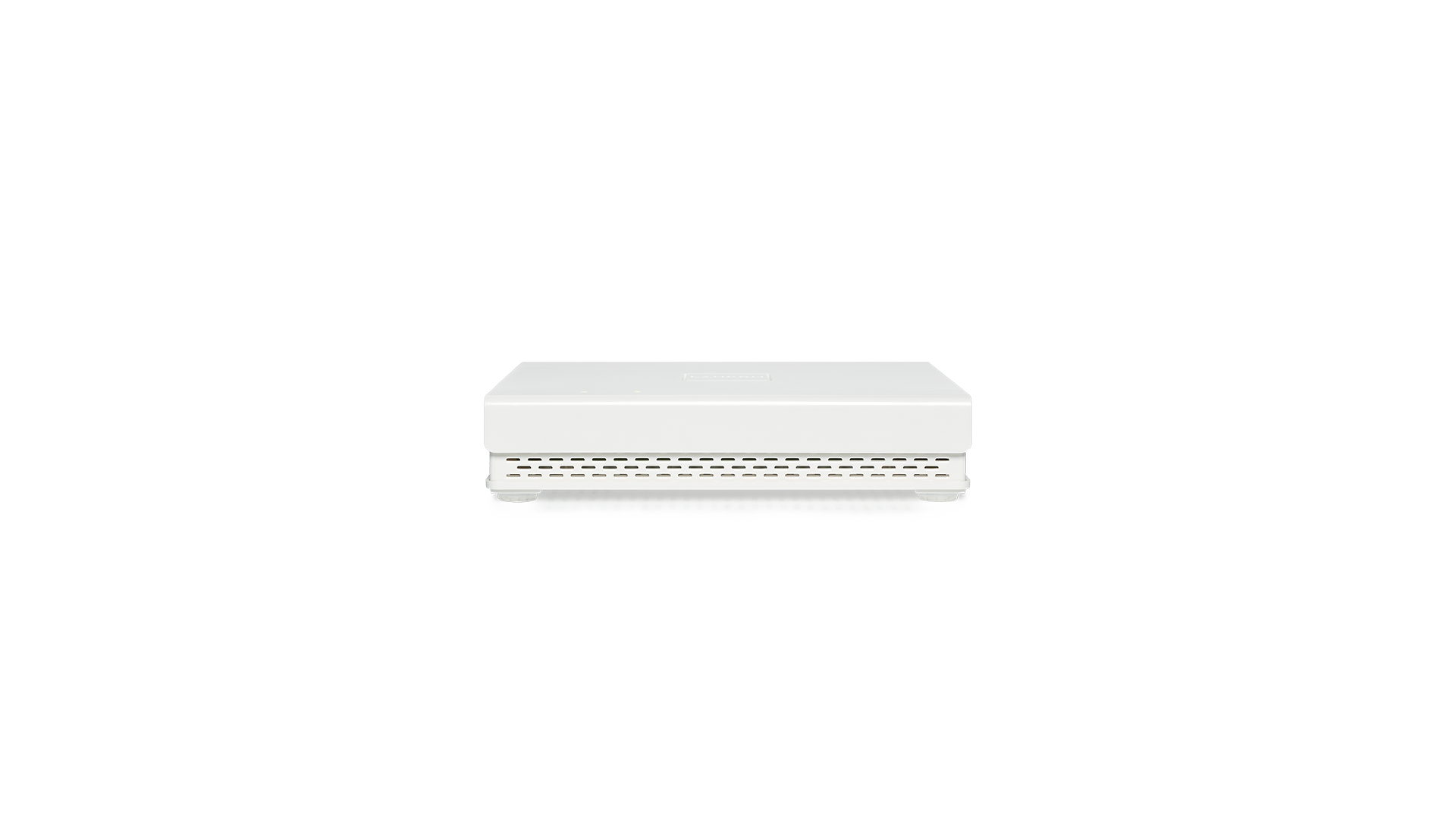

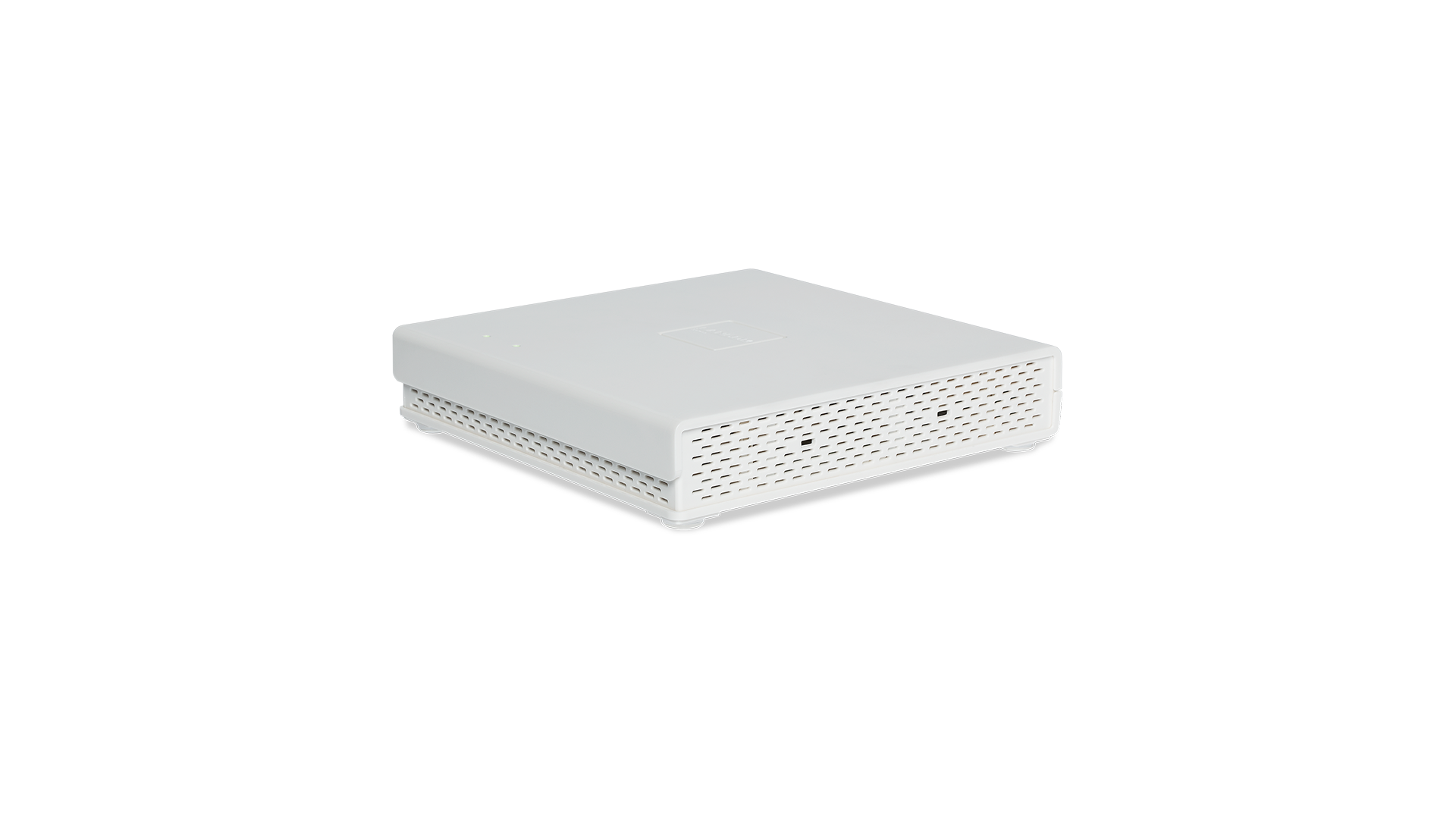

LANCOM LX-6200

Fast Wi-Fi 6 for small and medium user densities

With the LANCOM LX-6200, you get high-throughput performance from the latest Wi-Fi 6 generation. This makes it the ideal device wherever the fastest Wi-Fi is needed for a small to medium-sized number of users, such as in hotels, smaller offices, medical practices, or branch offices. The integrated USB interface (2.0) also provides the basis for integrating IoT wireless systems into existing WLAN infrastructures.

Technical features

  • Dual concurrent Wi-Fi – parallel operation at 2.4 GHz and 5 GHz with Wi-Fi 6 (IEEE 802.11ax)
  • 2x2 multi-user MIMO for simultaneous beam-steering for multiple clients in down- an uplink mode
  • USB 2.0 port for connecting wireless IoT systems
  • 5.1 Bluetooth Low Energy radio module
  • Automated operation via the LANCOM Management Cloud (LMC)
  • WLAN controller support (including layer-3 tunneling)
  • Support of the security standard WPA3
  • Uncompromising and future-proof standards for warranty, support, and software lifecycle management
  • Suitable for use with medical electrical equipment in a non-life-supporting environment (EN 60601-1-2)

Advantages

Dual concurrent Wi-Fi with an aggregated datarate of up to 1,775 Mbps

The LANCOM LX-6200 offers the Wi-Fi 6 standard (IEEE 802.11ax) for fast wireless LAN for clients in the 2.4- and 5-GHz bands. Wi-Fi 6 technology achieves transmission rates of up to 1,200 Mbps at 5 GHz and simultaneously up to 575 Mbps at 2.4 GHz.

2x2 Multi-User MIMO for downlinks and uplinks

Multi-user MIMO (MU-MIMO for short) simultaneously distributes all of the available spatial streams of the LANCOM LX-6200 between several different clients, rather than one after the other as was formerly the case. The available bandwidth is used efficiently and delays in the wireless network are substantially reduced. With Wi-Fi 6, MU-MIMO is not, as before, only usable in the downlink but now also in the uplink as well.

Professional IoT support via BLE and USB

With the LANCOM LX-6200, you can easily dive into the world of the Internet-of-Things (IoT). Support for Bluetooth Low Energy (5.1) and USB 3.0 opens up many possibilities for you to communicate with modern WLAN sensors in devices or objects and use innovative applications such as asset tracking or digital signage with Wireless ePaper. In this way, you can easily operate solutions for digital room signage, electronic shelf labels, and other ePaper applications via the optionally available LANCOM Wireless ePaper USB.

Managed via LANCOM Management Cloud, WLAN controller, or stand-alone

The LANCOM LX-6200 offers the greatest possible versatility in operation: Managed through the LANCOM Management Cloud, it integrates into a holistic, automated network orchestration system based on software-defined networking technology. It is also able to operate with central management by LANCOM WLAN controller or even in stand-alone mode.

Wi-Fi security standard WPA3

WPA3, the successor of WPA2, offers important upgrades and security features for small ("WPA3-Personal") and large networks ("WPA3-Enterprise").

Connectors


Further information & news

Wi-Fi optimization at the push of a button: LANCOM Active Radio Control 2.0

With the new automation solution LANCOM Active Radio Control 2.0 (ARC 2.0), you rely on holistic, self-learning optimization of your Wi-Fi installation. Real usage data from your LANCOM access points integrated in the LANCOM Management Cloud (except LANCOM LW-500) provide the basis for a predicted, optimal channel distribution, channel width utilization, and transmission power.

All you have to do is activate the LANCOM Active Radio Control 2.0 Wi-Fi scan and have the predicted improvements displayed. One more click and the optimization is applied.

Get to know LANCOM Active Radio Control 2.0

Wi-Fi 6: More throughput, lower latency times

What exactly do these key words behind the new Wi-Fi standard Wi-Fi 6 signify? Especially in so-called "high-density environments", i.e. in areas with large numbers of Wi-Fi clients, Wi-Fi 6, alias IEEE 802.11ax, brings more stability and reliability to intensively used wireless LANs by making more efficient use of the available bandwidths and channels

How you can benefit from the technology with the ax-enabled LANCOM devices is shown in our Wi-Fi 6 video, on the technology page, and in the whitepaper:

Whitepaper: The Wi-Fi standard Wi-Fi 6

Accessories and options

Service & support

Included services

  • 3 years hardware warranty
  • Technical manufacturer support as part of a support contract
    (LANcommunity partner, LANcare Direct, or LANcare Premium Support)

Optional services

Click below to get more information as well as the item numbers for convenient additional booking.

Click below to get more information as well as the item numbers for convenient additional booking.

Notes: Times are given in hours (h) or minutes (m) per days (d). The products are available for different service categories (S, M, L, XL) as well as validity and can be easily added using the item numbers.


  • LANcare Direct 10/5
    Direct manufacturer support and security updates for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    Item numbers: S: 10740 / 10741 / 10742, M: 10743 / 10744 / 10745, L: 10746 / 10747 / 10748, XL: 10749 / 10750 / 10751

  • LANcare Direct Advanced 10/5
    Direct manufacturer support, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10764 / 10765 / 10766, M: 10767 / 10768 / 10769, L: 10770 / 10771 / 10772, XL: 10773 / 10774 / 10775

  • LANcare Direct 24/7
    Direct manufacturer support incl. 24/7 emergency hotline and security updates for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    Item numbers: S: 10752 / 10753 / 10754, M: 10755 / 10756 / 10757, L: 10758 / 10759 / 10760, XL: 10761 / 10762 / 10763

  • LANcare Direct Advanced 24/7
    Direct manufacturer support incl. 24/7 emergency hotline, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10776 / 10777 / 10778, M: 10779 / 10780 / 10781, L: 10782 / 10783 / 10784, XL: 10785 / 10786 / 10787

  • LANcare Basic
    Security updates and manufacturer support* until EOL as well as 5 years replacement service
    Availability: 8h / 5d, shipment: 5 days
    *support contract required, e. g. LANcommunity Partner or LANcare Direct
    Item numbers: S: 10720, M: 10721, L: 10722, XL: 10723

  • LANcare Advanced
    Security updates and manufacturer support* until EOL as well as 5 years advance relacement
    Availability: 8h / 5d, delivery: NBD
    *support contract required, e. g. LANcommunity Partner or LANcare Direct
    Item numbers: S: 10730, M: 10731, L: 10732, XL: 10733

  • LANcare Premium Support 10/5
    Manufacturer support and security updates for projects
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    (on request)

  • LANcare Premium Support 24/7
    Manufacturer support incl. 24/7 emergency hotline and security updates for projects
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    (on request)
