LANCOM LW-700

Powerful Wi-Fi 7 - compact and economical

The smart entry into the world of Wi-Fi 7: This access point delivers excellent performance and a compelling price-performance ratio—ideal for small to medium environments with moderate Wi-Fi requirements. Thanks to its modern, discreet design, it integrates seamlessly into a wide range of settings—whether in hotels, offices,or medical practices. It can be conveniently managed via the LANCOM Management Cloud (LMC), the intuitive WEBconfig web interface, or alternatively through a WLAN controller.

Technical features

  • Wi-Fi 7 access point with dual-radio Wi-Fi – concurrent operation in 2.4 GHz and 5 GHz
  • 2x2 MU-MIMO for simultaneous communication with multiple clients in downlink and uplink
  • Discreet, practical design with integrated antennas

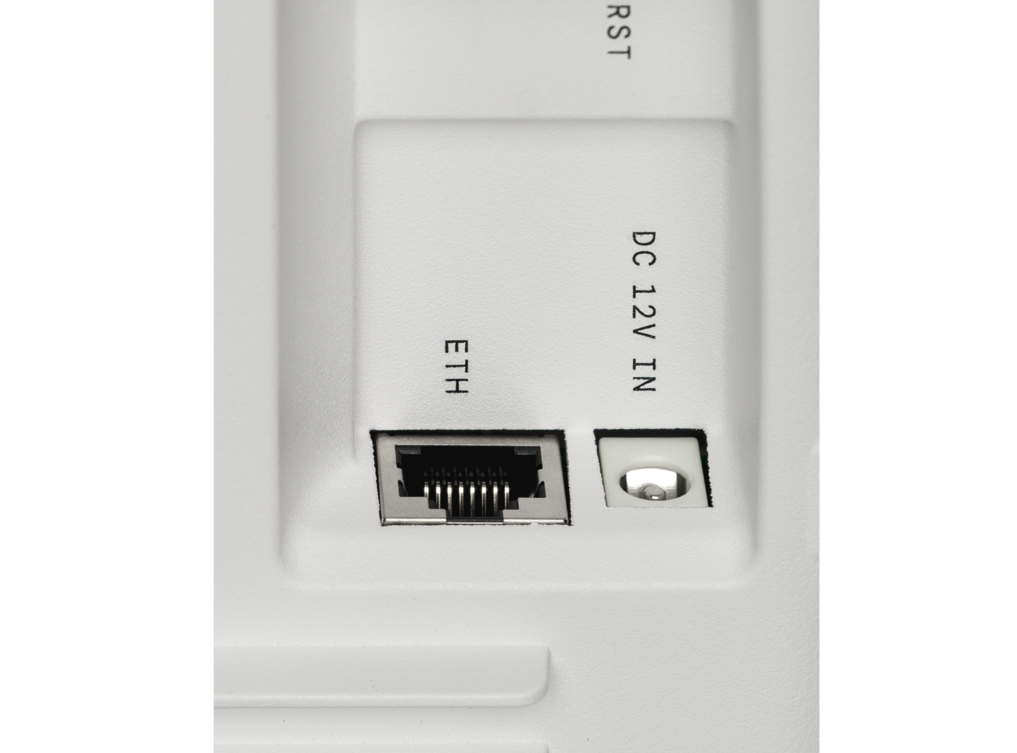

  • 2.5 Gigabit Ethernet port
  • Simple management and monitoring thanks to the intuitive web interface (WEBconfig)
  • Automated operation via the LANCOM Management Cloud (LMC)
  • WLAN controller support (including Layer 3 tunneling)
  • Uncompromising and future-proof standards for warranty, support, and software lifecycle management
  • Support for the WPA3 security standard

Highlights

Faster data transfer

Wi-Fi 7 sets new standards in stability and efficiency for wireless networks. Thanks to Multi-Link Operation (MLO), the optimal available frequency band is always used, or multiple bands are utilized in parallel to maximize bandwidth utilization and minimize latency. Multi-RU (Resource Units) enables even more flexible and efficient use of the radio spectrum during OFDMA transmissions, particularly in environments with numerous simultaneously active client devices. The enhanced 4096-QAM modulation further increases data rates and ensures even more efficient use of channel capacity. The LANCOM LW-700 achieves an aggregated maximum data transfer rate of up to 3.6 Gbps across the supported frequency bands.

More about the benefits of Wi-Fi 7

Reduced overall energy consumption thanks to LANCOM Active Power Control

In light of rising energy costs and the growing societal demand for sustainable solutions, LANCOM Active Power Control provides the ideal answer for your network infrastructure. This intelligent, cloud-based optimization solution dynamically adjusts the available Wi-Fi capacity, reducing the energy consumption of your Wi-Fi infrastructure without compromising operational reliability. In "Sustainability Mode," the functions of the access points are minimized during idle phases, leading to a lower power requirement. A centralized energy monitoring system provides full transparency of your energy consumption.

Learn more in the tech paper

Housing design optimized for field use

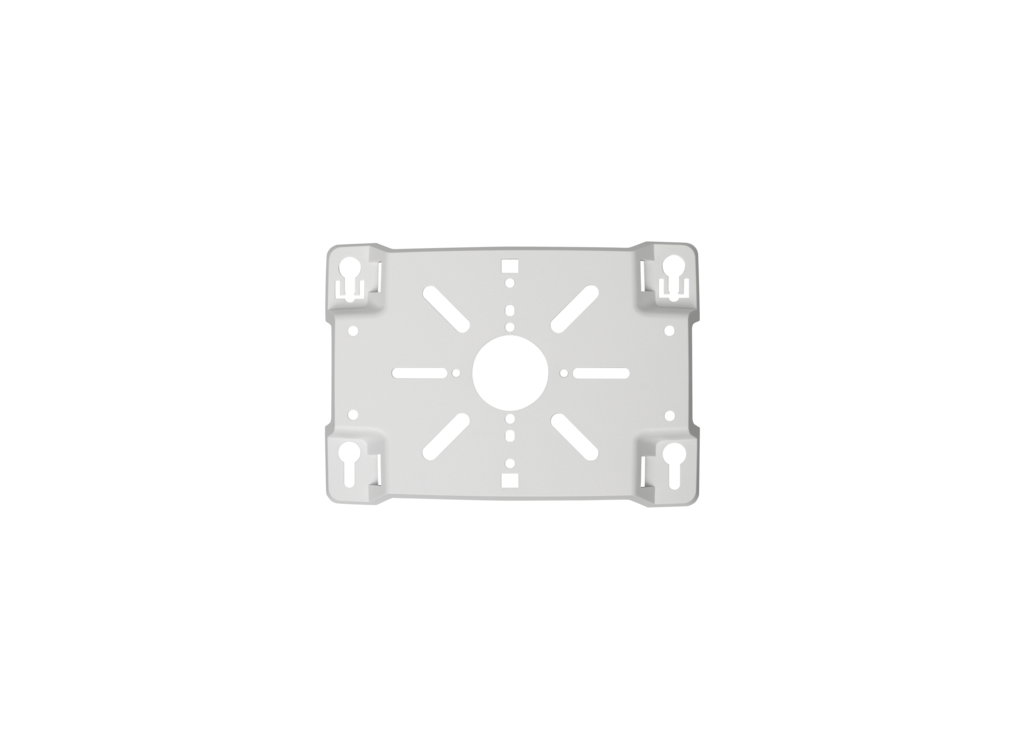

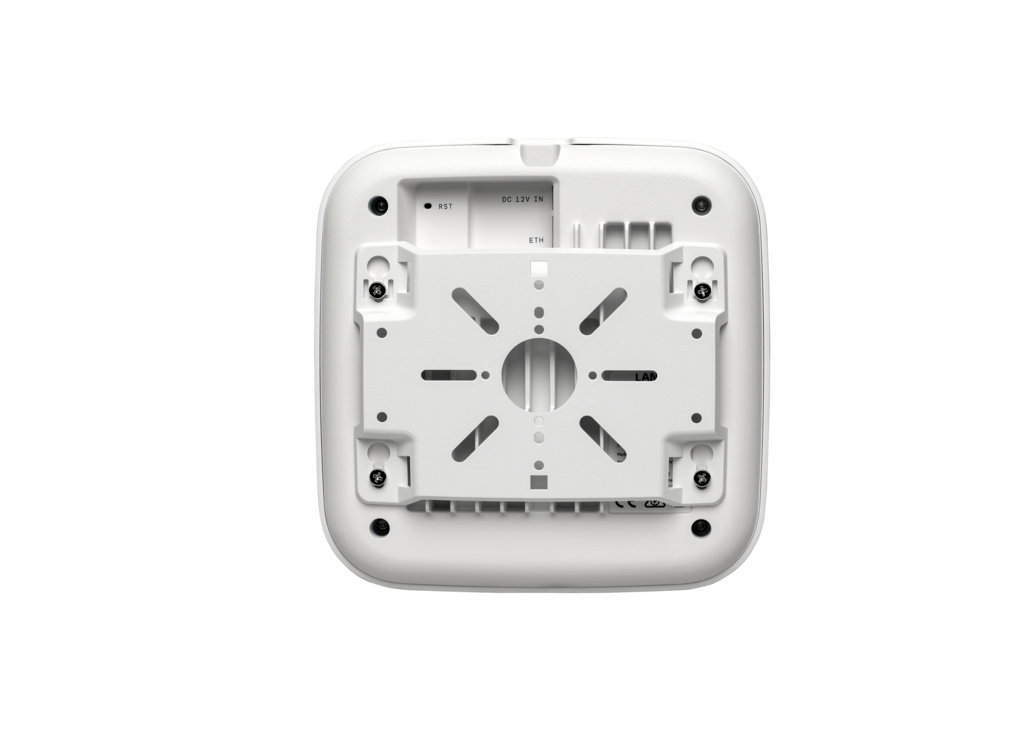

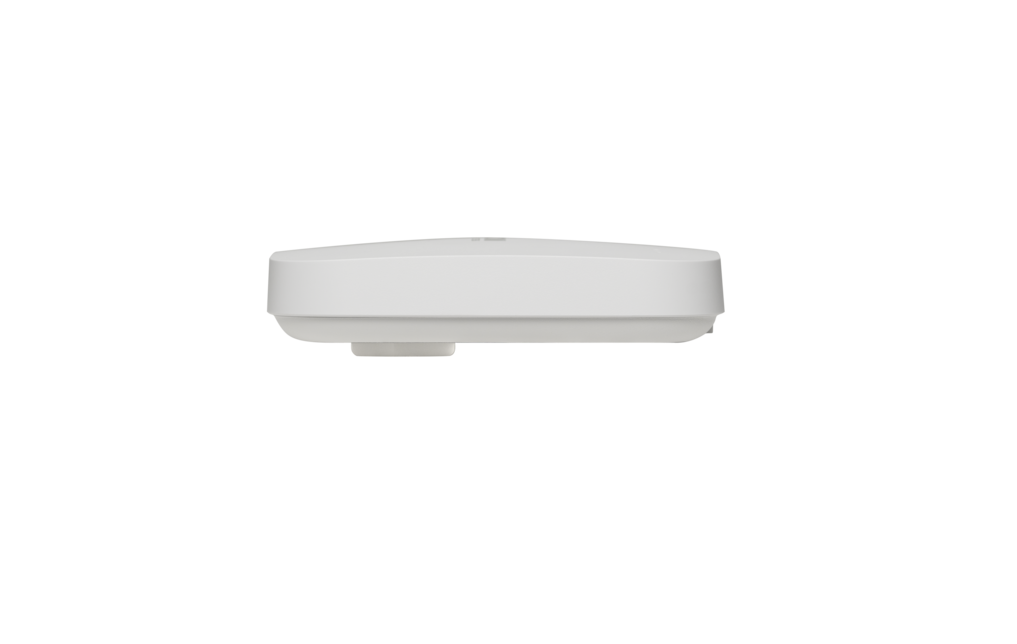

The design of the LANCOM LW-700 is based on decades of market experience and valuable user feedback. The flattened shape on the sides gives it a discreet appearance that blends seamlessly into any environment. The mounting plate included in the accessories is compatible with the drill holes of the previous models LANCOM LW-600 and LANCOM LW-500.

Especially when it comes to new technologies, it is important to strengthen your own decision-making authority and to rely on trustworthy partners. By choosing a LANCOM WLAN infrastructure, you are making a conscious decision to strengthen your digital sovereignty and thus to protect and control hardware, software, data, IT resources, and processes for greater data security, planning reliability, and risk minimization.

Advantages

Perfect Wi-Fi at the Push of a Button – with LANCOM Active Radio Control 2.0

Scan, analyze, and optimize — that’s all it takes to make your Wi-Fi more efficient, even at locations with data-intensive applications, high user densities, or interfering external networks. That’s exactly the task handled by the LANCOM Active Radio Control 2.0 (ARC 2.0) automation solution! Even under complex conditions, you benefit from holistic, self-learning optimization of your Wi-Fi installation with improved channel distribution, channel width usage, and transmit power. Additionally, ARC 2.0 can prioritize access points managed via the LANCOM Management Cloud according to their actual usage, providing capacity exactly where it is needed based on real usage patterns. This saves your IT administrators manual effort and ensures you get the most out of your Wi-Fi installation.

Read the Techpaper: LANCOM Active Radio Control 2.0

Carpooling in the radio field – OFDMA for more efficient data traffic

Orthogonal Frequency Division Multiple Access (OFDMA) also aims to optimize the use of the radio field: The frequency range of a Wi-Fi channel is divided into several frequency blocks within a unit of time, creating sub-channels (sub-carriers) with a narrow channel width of up to 2 MHz. This prevents small data packets, which often originate from IoT devices, from taking up and blocking an entire channel with a width of 20, 40 or even 80 MHz. In addition, the LW-700 bundles several sub-channels and transports them together like a kind of carpool to enable the freest and smoothest possible radio traffic.

Flexible operation via LANCOM Management Cloud, modern web interface or WLAN controller

Choose freely between operation via the LANCOM Management Cloud, stand-alone via WEBconfig or a WLAN controller! In cloud mode, the LANCOM LW-700 becomes part of a user-friendly, holistic and automated network management system. Even in stand-alone operation, the LW-700 offers fast configuration and comprehensive management and monitoring thanks to the intuitive, clear web interface of the new WEBconfig. As a third option, management can also be selected centrally via a WLAN controller.

powered by:

Wi-Fi out of the box

“The sound planning and implementation of a professional Wi-Fi according to the needs of the companies contributes to providing a reliable and secure wireless IT network connection. If the number of devices with their data transfer requirements exceeds the capacity of the IT network, the performance suffers, the susceptibility to interference increases and work processes are slowed down or even interrupted. Data loss and economic damage such as loss of productivity and revenue are the consequences. Outdated IT networks with low radio frequencies can no longer meet the growing data transfer challenges and quickly turn into bottlenecks.” – techconsult survey from 2023

Get the entire whitepaper now

Further information & news

Options & accessories

Service & support

Included services

  • 3 years replacement service (return & replace)
  • Technical manufacturer support for LANcommunity partners and end customers with LANcare Direct or LANcare Premium Support

Optional services

Click below to get more information as well as the item numbers for convenient additional booking.

Click below to get more information as well as the item numbers for convenient additional booking.

Notes: Times are given in hours (h) or minutes (m) per days (d). The products are available for different service categories (S, M, L, XL) as well as validity and can be easily added using the item numbers.


  • LANcare Direct 10/5
    Direct manufacturer support and security updates for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    Item numbers: S: 10740 / 10741 / 10742, M: 10743 / 10744 / 10745, L: 10746 / 10747 / 10748, XL: 10749 / 10750 / 10751

  • LANcare Direct Advanced 10/5
    Direct manufacturer support, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10764 / 10765 / 10766, M: 10767 / 10768 / 10769, L: 10770 / 10771 / 10772, XL: 10773 / 10774 / 10775

  • LANcare Direct 24/7
    Direct manufacturer support incl. 24/7 emergency hotline and security updates for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    Item numbers: S: 10752 / 10753 / 10754, M: 10755 / 10756 / 10757, L: 10758 / 10759 / 10760, XL: 10761 / 10762 / 10763

  • LANcare Direct Advanced 24/7
    Direct manufacturer support incl. 24/7 emergency hotline, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10776 / 10777 / 10778, M: 10779 / 10780 / 10781, L: 10782 / 10783 / 10784, XL: 10785 / 10786 / 10787

  • LANcare Basic
    Security updates until EOL as well as 5 years replacement service
    Availability: 8h / 5d, shipment: 5 days
    Item numbers: S: 10720, M: 10721, L: 10722, XL: 10723

  • LANcare Advanced
    Security updates until EOL as well as 5 years advance relacement
    Availability: 8h / 5d, delivery: NBD
    Item numbers: S: 10730, M: 10731, L: 10732, XL: 10733

  • LANcare Premium Support 10/5
    Manufacturer support and security updates for projects
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    (on request)

  • LANcare Premium Support 24/7
    Manufacturer support incl. 24/7 emergency hotline and security updates for projects
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    (on request)

All at a glance

Always keep track of all services and options for LANCOM hardware products with the practical Overview of the LANCOM Service & Support.
