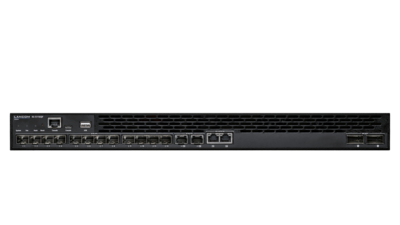

Product photo LANCOM Aggregation Switch XS-5116QF

10G fiber aggregation switch for mid-sized distributed networks

This 10G aggregation switch offers future-proof fiber-optics performance and acts as a superordinated instance in distributed networks and provides high-performance 14 SFP+ ports for aggregating access switches and further 2 QSFP+ ports. Professional redundancy functionalities and two hot-swappable power supplies guarantee fail-safe operations. Thanks to the holistic LANCOM network management the device can be configured dynamically and automatically via the LANCOM Management Cloud or via cloud-enabled web GUI, and even via cloud-enabled CLI.

Technical features

  • Multi-gigabit aggregation switch with 12x SFP+ ports (10G) and 2x combo ports (10/5/2.5/1 multi-gigabit ethernet / SFP+) and 2x QSFP+ (40G) uplink ports
  • Full layer 3 functionality through VRRP, DHCP, static and policy-based dynamic routing via OSPF v2/v3
  • Backplane stacking via uplink ports
  • 2x hot-swappable PSU for maximum reliability
  • Front-to-back airflow for optimal cooling in 19” racks
  • Security with configurable access control on all ports as per IEEE 802.1X and access control lists
  • Secure remote management through TACACS+, SSH, SSL, and SNMPv3
  • Cloud-managed LAN and switch stacking for quick configuration and convenient management via the LMC
  • Limited Lifetime Warranty (LLW) included
  • Includes security updates for 5 years after end of sale and major releases for 2 years after end of sale


Maximum performance on all ports

With its fiber-optics and multi-Gigabit Ethernet (mGbE) ports, the LANCOM XS-5116QF offers future-proof port performance for resilient networks that meet the increasing demands occuring from increasingly powerful clients, a growing number of IoT devices, and cloud applications. 14 SFP+ ports (10G), 2 of which can be used as mGbE combo ports, serve as a high-performance distribution instance for establishing switch structures. A powerful uplink featuring 2x QSFP+ ports (40G), which can alternatively be used for stacking, makes the LANCOM XS-5116QF the ideal solution for mid-sized distributed networks with high performance requirements.

Flexibility and investment protection thanks to stacking technology

Stacking makes child’s play of expanding your network, as several physical switches combine into a single logical unit for convenient maintenance and management. When you expand your network, the new switch automatically receives a configuration from the stack master and is ready to use within seconds. Furthermore, device or network redundancies can be implemented with stacking for maximum reliability. With the LANCOM XS-5116QF, stack processing with a separate backplane CPU remains independent of network load thanks to the QSFP+ uplink ports. In addition, LANCOM also offers the option of mixed stacks with the GS-45xx series. The following matrix shows the different combinations.

Full layer 3 functionality

The LANCOM XS-5116QF is capable of performing layer 3 tasks such as DHCP server functionality, i.e. IP address management, or the predefinition of network routes across one or more network segments. Thanks to dynamic routing, the switch can also react quickly to network changes. The optimal route for data traffic within the network is thus constantly redefined by the LANCOM XS-5116QF based on the load level. This results in a load reduction on the router, so that these capacities are then additionally available for handling external data traffic and increase the efficiency of the entire network.

Secure remote management

Secure communication protocols such as SSH, SSL and SNMPv3 mean that the LANCOM XS-5116QF is ideal for the professional management of remote networks. The switch also supports the TACACS+ protocol for authentication, authorization and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.

Configurable access control

The LANCOM XS-5116QF stops rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single, multi, and MAC-based) or by ACLs (access control lists).

Cloud-managed LAN and switch stacking

With the LANCOM Management Cloud, the XS-5116QF offers quick and easy network integration as well as automatic provision of the configuration across locations with the a click of a mouse. Cloud-managed LAN replaces the configuration of individual devices and enables automatic assignment of VLANs
to switch ports. Cloud-managed switch stacking also enables convenient management and monitoring of the entire stack. Learn more in the  Design guide switch stacking.

Flexible network topologies

The LANCOM XS-5116QF is an ideal aggregation instance for the networking of access switches. Depending on the size of the installation, it integrates into the network topology either at the top level facing the WAN (2-tier design) or at the second level between a core switch and the access switches (3-tier design).

High operational security

The LANCOM XS-5116QF features two integrated hot-swappable PSUs (power supply units). This allows a quick and uninterrupted replacement of defective power supply units. Front-to-back airflow design improves cooling in 19-inch racks and extends the product lifetime. Stacking is a major contribution to highly resilient scenarios.

LANCOM Limited Lifetime Warranty (LLW)

This enterprise switch is reliably covered ex factory by the LANCOM Limited Lifetime Warranty. Regardless of the switch's operating time, the warranty is valid until the End of Life status of the device (max. 10 years). Learn more in the Infopaper LANCOM Limited Lifetime Warranty.

Perfect complement: Ensure minimal downtime in the event of a hardware defect with next-business-day delivery of a replacement device.
We recommend the LANCOM Next Business Day Replacement Option as well as the LANCOM Service Pack 24/7, or the LANCOM Service Pack 10/5.

LANCOM switch series comparison

As a reliable basis for high-performance network infrastructures, the LANCOM switch portfolio is the first choice. But how do the switch series differ? Find out with the help of the LANCOM Switch series comparison.

Options & accessories

Recommended access switches

For best possible performance in your distributed networks, we recommend the switch aggregation via SFP+ (10G). The LANCOM access switches listed here are equipped with SFP+ ports and are hence the ideal combination with the LANCOM XS-5116QF.

Service & support

Included services

  • Limited Lifetime Warranty (LLW): Hardware warranty until the End of Life status of the device (maximum 10 years)
  • Security and feature updates within the LLW
  • Free technical support for LANcommunity partners directly from LANCOM (availability: 8-10h / 5d, response time: 4h-1d (depending on partner level))

Charged technical manufacturer support for end customers is optionally available.

Optional services

Click below to get more information on these service & support products as well as the item numbers for convenient additional booking.

Click below to get more information on these service & support products as well as the item numbers for convenient additional booking.


Notes: Times are given in hours (h) per days (d). The options are available for different service categories (S, M, L, XL) as well as validity (1 year / 3 years / 5 years for LANCOM Service Packs) and can be easily added using the item numbers. The service category of each LANCOM device can be found in the LANCOM price list.


  • LANCOM Service Pack 24/7
    Extended manufacturer support incl. 24/7 emergency hotline with next business day (NBD) advance replacement in case of defect for 1, 3, or 5 years as an option per device
    Availability: 24h / 7d, delivery: NBD
    Item numbers: S: 10230 / 10234 / 10238, M: 10231 / 10235 / 10239, L: 10232 / 10236 / 10240, XL: 10233 / 10237 / 10241
  • LANCOM Service Pack 10/5
    Extended manufacturer support with next business day (NBD) advance replacement in case of defect for 1, 3, or 5 years as an option per device
    Availability: 10h / 5d, delivery: NBD
    Item numbers: S: 10242 / 10243 / 10244, M: 10245 / 10246 / 10247, L: 10248 / 10249 / 10250, XL: 10251 / 10252 / 10253
  • LANCOM Next Business Day Replacement Option
    Next business day (NBD) advance replacement in case of defect until the End of Life status of the device (maximum 10 years) as an option per device
    Availability: NBD
    Item numbers: L: 61321, XL: 61323
  • LANCOM MSP-Care 24/7
    Extended manufacturer support incl. 24/7 emergency hotline for projects
    Availability: 24h / 7d
    (on request)
