LANCOM LX-7500

Preview

High-end Wi-Fi 7 for high-demand wireless networks

The Wi-Fi 7 access point LANCOM LX-7500 is synonymous with greater security, sustainability, and automated operation of Wi-Fi infrastructures. It represents a quantum leap in terms of functionality, speed, and efficiency in large, high-traffic wireless networks. The use of the Wi-Fi exclusive 6 GHz frequencies and the additional scan radio ensure interference-free operation with minimum latency and maximum data throughput. With its innovative design, the access point can be integrated into any environment and can be put into operation with minimal effort thanks to practical mounting options.

Technical features

  • Wi-Fi 7 access point with 4x4 MU-MIMO tri-band Wi-Fi – parallel operation in 2.4 GHz, 5 GHz, and 6 GHz for up to 19 Gbps
  • OFDMA for more efficient Wi-Fi channel utilization
  • Dedicated scan radio for continuous radio field monitoring
  • 1x 10 GE and 1x 2.5 GE ports, 2x PoE++ (IEEE 802.3bt)
  • Dual PoE for seamless failover in the event of a power failure on one port; alternatively configurable load balancing to combine different PoE classes on the two ports
  • IoT support: Bluetooth Low Energy (5.1) and USB 3.0
  • Housing with protection class IP50 and UL-2043
  • Innovative design incl. theft-resistant and flexible mounting plate
  • Automatic wall/ceiling mounting detection
  • Certified fire resistance and low smoke properties in the event of fire (UL2043)
  • Power-saving functions with precise consumption measurement
  • Automated deployment, operation, and optimization via the LANCOM Management Cloud (LMC)
  • WLAN controller support (including layer 3 tunneling)

Datasheet

Whitepaper: Wi-Fi 7

Quick Reference Guide (coming soon)

Quick Installation Guide (coming soon)

Highlights

Faster data transfer

With Wi-Fi 7, you benefit in practice from a speed boost of up to 240% compared to Wi-Fi 6(E). This is due to the doubled maximum channel width (320 MHz instead of the previous 160 MHz) and the increased information density during transmission processes (4096 QAM instead of the previous 1024 QAM) compared to Wi-Fi 6E. The LANCOM LX-7500 thus offers a maximum transmission rate of 19 Gbps aggregated across all frequency bands.

More stable transmission quality

Multi-link operation (MLO) automatically uses the frequency band with better quality or even uses two frequency bands simultaneously. In addition, Multi-RU & Puncturing effectively mitigates the previously serious consequences of interference signals. This ensures significantly more reliable transmission and reception quality, especially in radio environments with high signal density.

Housing design optimized for field use

The design of the LANCOM LX-7500 is the result of our decades of market experience and practical feedback from users. Its wedge-shaped design with a flattened shape ensures a discreet appearance that fits into any environment. With protection class IP50 including rubber sealing of the ports, the access point is dustproof. It also comes with certified fire resistance and low-smoke properties in the event of fire (UL-2043). The compact mounting bracket with mounting lock counteracts opportunistic theft.

Specially developed mounting options with the option of using existing drill holes from various manufacturers, as an alternative to accelerated and ergonomic attachment to T-beams on grid ceilings, save time and reduce costs.

More than just up-to-date: Get to know Wi-Fi 7 with LANCOM

Our Wi-Fi 7 access points were designed with a clear vision: making professional networks more secure and sustainable and at the same time relieving administrators with a high degree of automation. Discover the holistic technology!

Icon: Blue arrow with "SECURE" lettering and protective shield with magnifying glass
  • Security scan: radio field monitoring with dedicated scan radio
  • Dual-PoE-in: fully redundant power supply to the second switch for maximum reliability
  • Firmware Engineered in Germany: guaranteed absents of backdoors, secure boot from exclusively authorized LANCOM software, and maximum reliability and future viability thanks to regular feature and security updates
  • Integrated assembly lock: counteracts opportunist theft
Icon: Green arrow with "SUSTAINABLE" lettering and globe with leaf
  • LANCOM Sustainability Mode: Reduced energy consumption in the Wi-Fi thanks to technological options and logical control
  • Energy monitoring for the entire network: transparency regarding energy consumption, savings,CO2 emissions, and CO2 reduction
  • Environmentally friendly packaging: Plastic-free packaging based on paper fibers - a contribution to uncomplicated and sorted disposal
  • Optimized scope of delivery: avoidance of packaging waste and electronic waste as well as CO2 pollution in logistics
  • Optimized scope of delivery: avoidance of packaging waste and electronic waste as well as CO2 pollution in logistics
Icon: Blue arrow with "AUTOMATED" lettering and clock symbol
  • Cloud-managed Wi-Fi: zero-touch commissioning, auto config, 24/7 monitoring & alerting, and Wi-Fi anomaly detection via the LANCOM Management Cloud (LMC) for less manual effort
  • Radio resource management: self-learning automation solution LANCOM Active Radio Control 2.0 for optimized WLAN installations at the touch of a button – the scan radio allows constant radio field monitoring
  • Energy savings without risk: Intelligent, cloud-based, dynamically adapting optimization solution LANCOM Active Power Control reduces the energy consumption of the Wi-Fi infrastructure while maintaining operational reliability

Especially when it comes to new technologies, it is important to strengthen your own decision-making authority and to rely on trustworthy partners. By choosing a LANCOM WLAN infrastructure, you are making a conscious decision to strengthen your digital sovereignty and thus to protect and control hardware, software, data, IT resources, and processes for greater data security, planning reliability, and risk minimization.

Further features

Interference-free use of the 6 GHz frequency band for modern and future applications

Take a seat in the VIP lounge in the Wi-Fi: The LANCOM LX-7500 offers an exclusive Wi-Fi radio field free of interference in the 6 GHz frequency band. While the 2.4 and 5 GHz bands can be used by other wireless technologies such as alarm systems or audio applications, the broadband 6 GHz spectrum is…

Take a seat in the VIP lounge in the Wi-Fi: The LANCOM LX-7500 offers an exclusive Wi-Fi radio field free of interference in the 6 GHz frequency band. While the 2.4 and 5 GHz bands can be used by other wireless technologies such as alarm systems or audio applications, the broadband 6 GHz spectrum is intended for exclusive Wi-Fi use. This enables interference-free Wi-Fi connections with minimal latency and maximum data throughput. Fast-response connections and time-critical Wi-Fi applications in particular benefit from this.

Reduced overall energy consumption thanks to LANCOM Active Power Control

In light of rising energy costs and the increasing quest for sustainable solutions in society, LANCOM Active Power Control offers the ideal answer for your network infrastructure. This intelligent, cloud-based optimization solution adapts dynamically and reduces the energy consumption of your Wi-Fi…

In light of rising energy costs and the increasing quest for sustainable solutions in society, LANCOM Active Power Control offers the ideal answer for your network infrastructure. This intelligent, cloud-based optimization solution adapts dynamically and reduces the energy consumption of your Wi-Fi infrastructure without compromising operational security. In "Sustainability Mode", the functionalities of the access points are reduced to a minimum during idle phases, resulting in lower PoE power consumption. Centralized energy monitoring provides you with transparency about your energy consumption.

Carpooling in the radio field – OFDMA for more efficient data traffic

Orthogonal Frequency Division Multiple Access (OFDMA) also aims to optimize the use of the radio field: The frequency range of a Wi-Fi channel is divided into several frequency blocks within a unit of time, creating sub-channels (sub-carriers) with a narrow channel width of up to 2 MHz. This prevents small data packets, which often originate from…

Orthogonal Frequency Division Multiple Access (OFDMA) also aims to optimize the use of the radio field: The frequency range of a Wi-Fi channel is divided into several frequency blocks within a unit of time, creating sub-channels (sub-carriers) with a narrow channel width of up to 2 MHz. This prevents small data packets, which often originate from IoT devices, from taking up and blocking an entire channel with a width of 20, 40 or even 80 MHz. In addition, the LX-7500 bundles several sub-channels and transports them together like a kind of carpool to enable the freest and smoothest possible radio traffic.

Flexible operation via LANCOM Management Cloud, modern web interface or WLAN controller

Choose freely between operation via the LANCOM Management Cloud, stand-alone via WEBconfig or a WLAN controller! In cloud mode, the LANCOM LX-7500 becomes part of a user-friendly, holistic and automated network management system. Even in stand-alone operation, the LX-7500 offers fast configuration…

Choose freely between operation via the LANCOM Management Cloud, stand-alone via WEBconfig or a WLAN controller! In cloud mode, the LANCOM LX-7500 becomes part of a user-friendly, holistic and automated network management system. Even in stand-alone operation, the LX-7500 offers fast configuration and comprehensive management and monitoring thanks to the intuitive, clear web interface of the new WEBconfig. As a third option, management can also be selected centrally via a WLAN controller.

Dual PoE-in ensures greater reliability and investment protection

The LANCOM LX-7500 can be operated flexibly on each of the two PoE ports (10GE / 2.5GE) via Power over Ethernet (PoE) according to IEEE 802.3bt. For unrestricted operation, a corresponding PoE switch in accordance with IEEE 802.3bt, also known as a PoE++ switch, is ideally used.The dual PoE-in…

The LANCOM LX-7500 can be operated flexibly on each of the two PoE ports (10GE / 2.5GE) via Power over Ethernet (PoE) according to IEEE 802.3bt. For unrestricted operation, a corresponding PoE switch in accordance with IEEE 802.3bt, also known as a PoE++ switch, is ideally used.The dual PoE-in functionality enables the simultaneous use of both PoE ports in order to create power supply redundancy in addition to data redundancy. Maximum reliability is achieved by redundant cabling of the LANCOM LX-7500 to one PoE++-capable port on each of two independent IEEE 802.3bt-capable switches. Alternatively, the dual PoE-in technology is suitable for bundling the power supply of two PoE+ (IEEE 802.3at) switches to provide sufficient power for unrestricted operation of the LANCOM LX-7500.

Professional IoT support

With the LANCOM LX-7500, you can easily immerse yourself in the world of the Internet of Things (IoT). Support for Bluetooth Low Energy (5.1) and USB 3.0 opens up many possibilities for you to communicate with modern BLE sensors in devices or objects and to use innovative applications such as asset…

With the LANCOM LX-7500, you can easily immerse yourself in the world of the Internet of Things (IoT). Support for Bluetooth Low Energy (5.1) and USB 3.0 opens up many possibilities for you to communicate with modern BLE sensors in devices or objects and to use innovative applications such as asset tracking or digital signage. You can easily operate solutions for electronic shelf labels and other IoT applications via the optionally available LANCOM Wireless ePaper USB.

powered by:


Further information & news


Special accessories

LANCOM Low-profile mounting plate

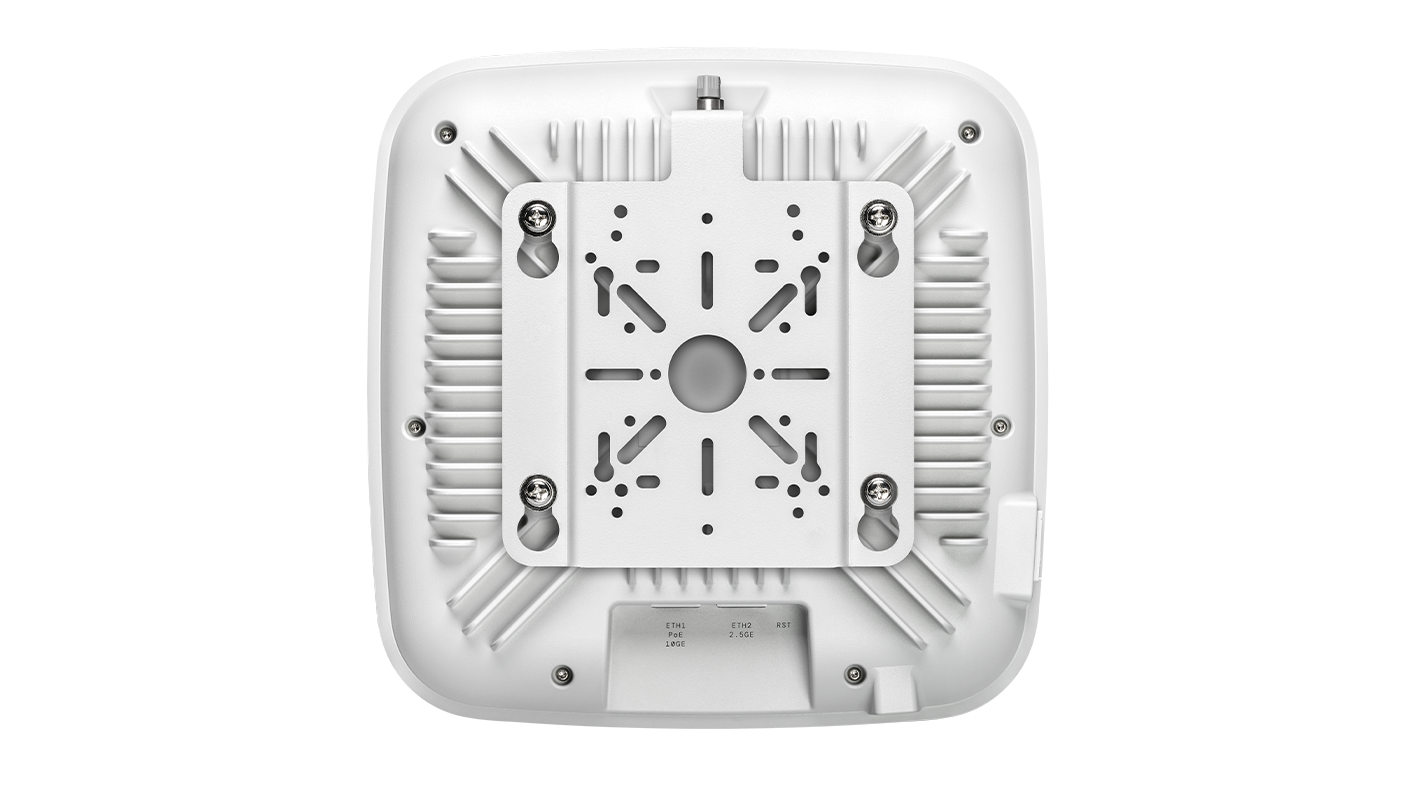

The scope of delivery includes the compact mounting plate, which is prepared for the use of existing drill holes when replacing various models on the market.

LANCOM LX-7000 Universal Mount

Compatible with drill holes of previous LANCOM access points for even less effort during installation.

LANCOM LX-7000 T-bar Mount

Enables cost-saving and ergonomic installation of the access point on T-beams of cassette ceilings, significantly reducing tiring overhead work.

Accessories and options

Service & support

Included services

  • 3 years replacement service (return & replace)
  • Technical manufacturer support for LANcommunity partners and end customers with LANcare Direct or LANcare Premium Support

Optional services

Click below to get more information as well as the item numbers for convenient additional booking.

Click below to get more information as well as the item numbers for convenient additional booking.

Notes: Times are given in hours (h) or minutes (m) per days (d). The products are available for different service categories (S, M, L, XL) as well as validity and can be easily added using the item numbers.


  • LANcare Direct 10/5
    Direct manufacturer support and security updates for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    Item numbers: S: 10740 / 10741 / 10742, M: 10743 / 10744 / 10745, L: 10746 / 10747 / 10748, XL: 10749 / 10750 / 10751

  • LANcare Direct Advanced 10/5
    Direct manufacturer support, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10764 / 10765 / 10766, M: 10767 / 10768 / 10769, L: 10770 / 10771 / 10772, XL: 10773 / 10774 / 10775

  • LANcare Direct 24/7
    Direct manufacturer support incl. 24/7 emergency hotline and security updates for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    Item numbers: S: 10752 / 10753 / 10754, M: 10755 / 10756 / 10757, L: 10758 / 10759 / 10760, XL: 10761 / 10762 / 10763

  • LANcare Direct Advanced 24/7
    Direct manufacturer support incl. 24/7 emergency hotline, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10776 / 10777 / 10778, M: 10779 / 10780 / 10781, L: 10782 / 10783 / 10784, XL: 10785 / 10786 / 10787

  • LANcare Basic
    Security updates until EOL as well as 5 years replacement service
    Availability: 8h / 5d, shipment: 5 days
    Item numbers: S: 10720, M: 10721, L: 10722, XL: 10723

  • LANcare Advanced
    Security updates until EOL as well as 5 years advance relacement
    Availability: 8h / 5d, delivery: NBD
    Item numbers: S: 10730, M: 10731, L: 10732, XL: 10733

  • LANcare Premium Support 10/5
    Manufacturer support and security updates for projects
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    (on request)

  • LANcare Premium Support 24/7
    Manufacturer support incl. 24/7 emergency hotline and security updates for projects
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    (on request)
