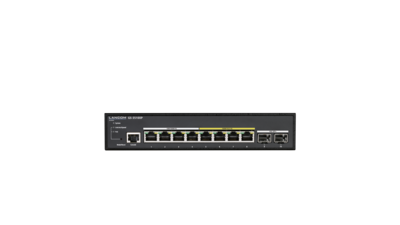

LANCOM GS-3510XP

Perfect for small offices: multi-Gigabit access switch with PoE

The LANCOM GS-3510XP is a reliable basis in smaller network infrastructures for integrating components with high performance requirements, such as Wi-Fi 6 access points. Equipped with 4x 2.5G and 4x 1G Ethernet ports as well as 2x 10G SFP+ uplink ports, it networks up to 10 devices optionally with Power over Ethernet (130-watt PoE budget) for installations without additional power supplies or power cabling. With the Zero-dB design and therefore silent design, it is predestined for use in small and home offices or at the edge of a network in larger installations. Basic layer-3 functions such as static routing and a DHCP server offer intelligent management with numerous security functions.

Technical features

  • Fully managed access switch with 4x 2.5G, 4x 1G Ethernet downlink ports and 2x 10G SFP+ uplink ports
  • PoE support as per IEEE 802.3af/at for the efficient and centralized supply of power (130 watt) to all devices connected to it
  • Basic layer-3 features like static routing and a DHCP server
  • Security with configurable access control on all ports as per IEEE 802.1X
  • 5-year warranty on all components
  • Ideal in combination with Wi-Fi 6 access points like the LX-6400 and LX-6402
  • Secure remote management through TACACS+, SSH, SSL, and SNMPv3
  • SD-LAN – for quick and easy configuration via the LANCOM Management Cloud
  • IPv6 and IPv4 support for modern enterprise networks
  • Zero-dB design

Advantages

High performance on 10 ports

The LANCOM GS-3510XP is equipped with 4x 2.5G ports, 4x 1G Ethernet ports and 2x 10G SFP+ uplink ports. With a data throughput of 68 Gbps on the backplane, it offers full performance even under load. This switch is a high-performance basis for modern network infrastructures in small and home offices.

A high-performance basis for Wi-Fi 6

Thanks to 4 high-performance 2.5-Gigabit Ethernet ports, the LANCOM GS-3510XP is the ideal LAN-side basis for integrating the new Wi-Fi 6 standard into modern infrastructures. The increased data rates when using Wi-Fi 6 requires 2.5-Gigabit Ethernet, as the potential performance requirements exceed those of a 1-Gigabit Ethernet port. Given a sufficient PoE supply, this switch enables the operation of up to 4 Wi-Fi 6 access points or other network components with high performance requirements—without additional electrical installations.

Centralized power supply without additional electrical installations

The LANCOM GS-3510XP is a high-performance PoE switch that directly powers PoE devices connected to it; there is no need for additional power supply units or cabling. It supports the two Power-over-Ethernet standards, IEEE 802.3af and IEEE 802.3at (PoE+). It has high power-output reserves and an PoE budget of 130 watts makes it an effective power supply for PoE devices, even with its Zero-dB design with a cooling function starting at 40°C ambient temperatur.

Static routing for fast data exchange

The LANCOM GS-3510XP supports the basic layer-3 feature static routing and thus the shift of certain routing tasks from the router to the switch. Administrator-predefined network routes, through one or multiple network segments, enable fast data transfer especially in scenarios with high data volumes and relieve the router accordingly. Newly available router capacities can then additionally be used to manage external data traffic. As a result, the entire network efficiency is increased.

DHCP server functionality

As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3510XP supports this basic layer-3 function and thus takes over the IP management of the connected network.

Configurable access control

The LANCOM GS-3510XP excludes rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single-based, multi-based, and MAC-based).

Secure remote management

Secure communication protocols such as SSH, SSL and SNMPv3 make the LANCOM GS-3510XP ideal for professional remote network management. The switch also support the TACACS+ protocol for authentication, authorization, and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.

SD-LAN – days become minutes

The LANCOM GS-3510XP offers fast and easy network integration and automatic configuration assignment with the LANCOM Management Cloud - without manual configuration. In this way, even complex networking scenarios are easy to administer. SD-LAN eliminates the need for a single device configuration for holistic network orchestration. In addition, automatic VLAN assignment to the desired switch ports is possible. The configurations can be coordinated with each other across locations and network architectures, and at the same time rolled out or updated at the click of a mouse.

IPv6 and IPv4 support

Thanks to its dual-stack implementation, the LANCOM GS-3510XP operates in pure IPv4, pure IPv6 or in mixed networks. Applications such as SSL, SSH, Telnet or TFTP can continue to be operated on IPv6 networks. Supported IPv6 features includes stateless auto configuration, neighbor detection, and MLD snooping.

Switch series comparison

As a reliable basis for high-performance network infrastructures, the LANCOM switch portfolio is the first choice. But how do the switch series differ? Find out with the help of the LANCOM switch series comparison.


Further information & news

Wi-Fi 6: More throughput, lower latency times

What exactly do these key words behind the new Wi-Fi standard Wi-Fi 6 signify? Especially in so-called "high-density environments", i.e. in areas with large numbers of Wi-Fi clients, Wi-Fi 6, alias IEEE 802.11ax, brings more stability and reliability to intensively used wireless LANs by making more efficient use of the available bandwidths and channels

How you can benefit from the technology with the ax-enabled LANCOM devices is shown in our Wi-Fi 6 video, on the technology page, and in the whitepaper:

Whitepaper: The Wi-Fi standard Wi-Fi 6

Options & accessories

¹ Compatible SFP modules: SFP-SX-LC1, SFP-SX2-LC1, SFP-LX-LC1, SFP-SX-LC10, SFP-LX-LC10, SFP-LR40-LC10, SFP-BiDi1550-SC1, SFP-BiDi1310-LC10, and SFP-CO10-MG

² Compatible Direct Attach Cable: SFP-DAC10-1M / -3M
