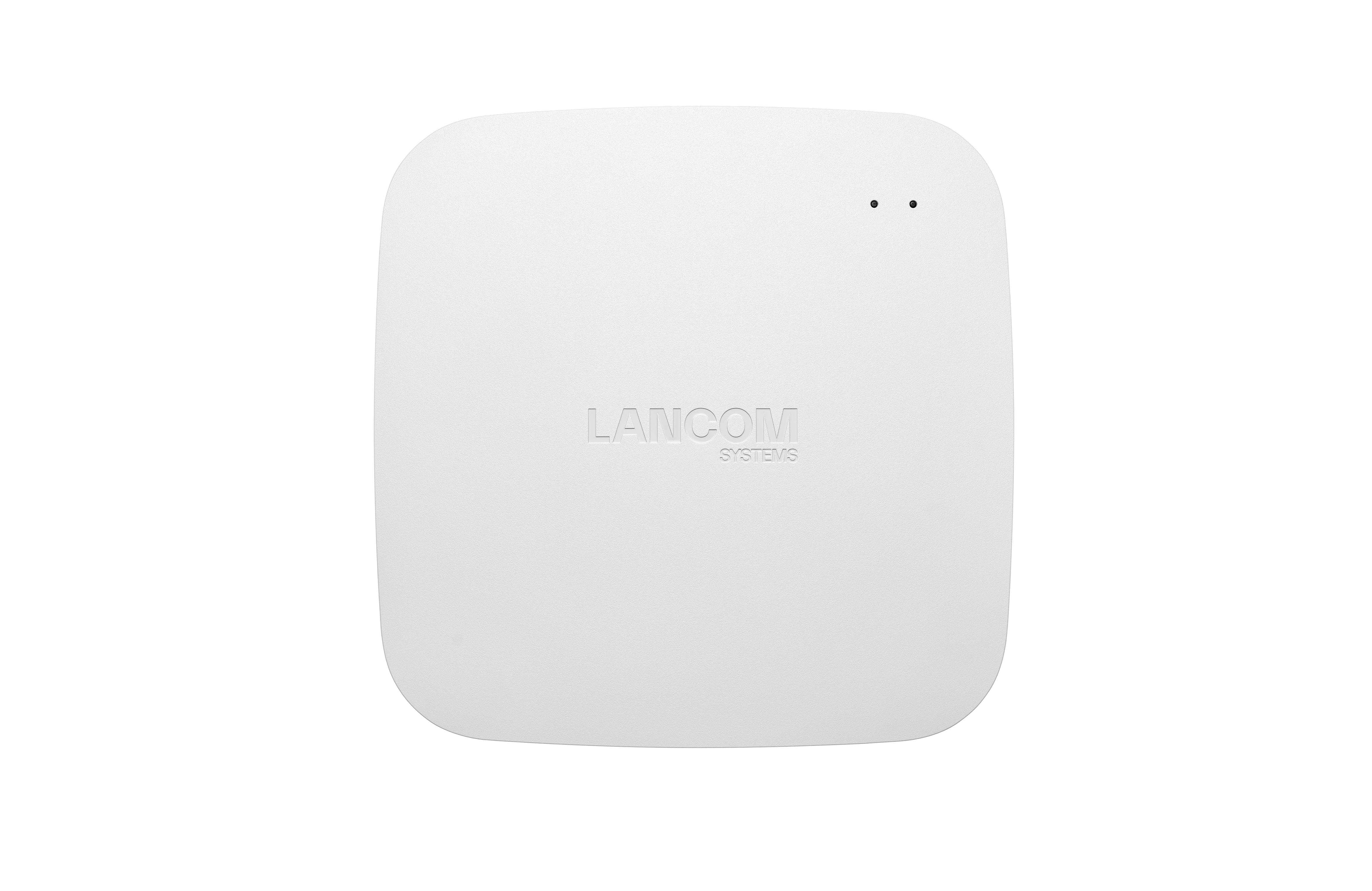

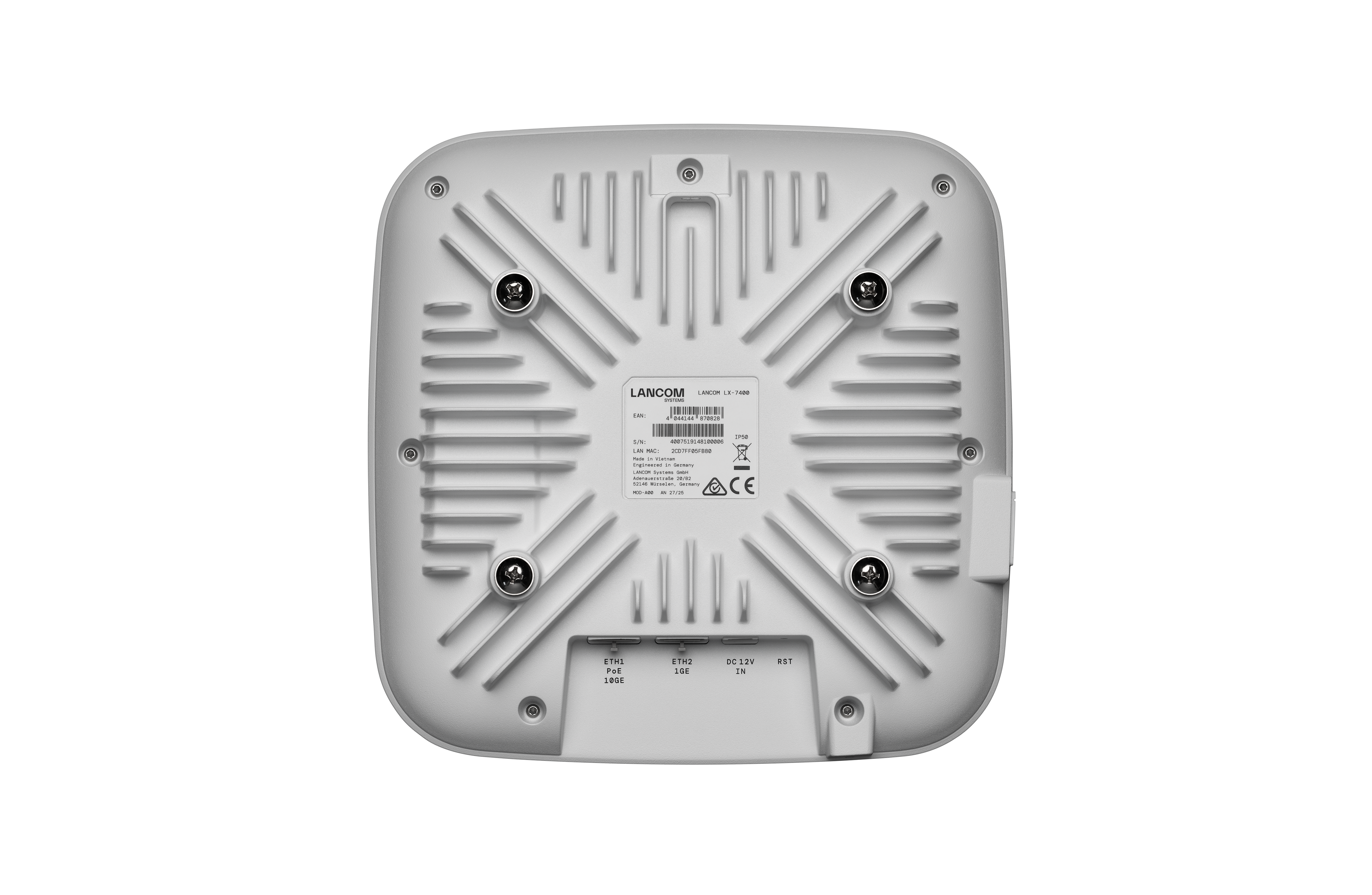

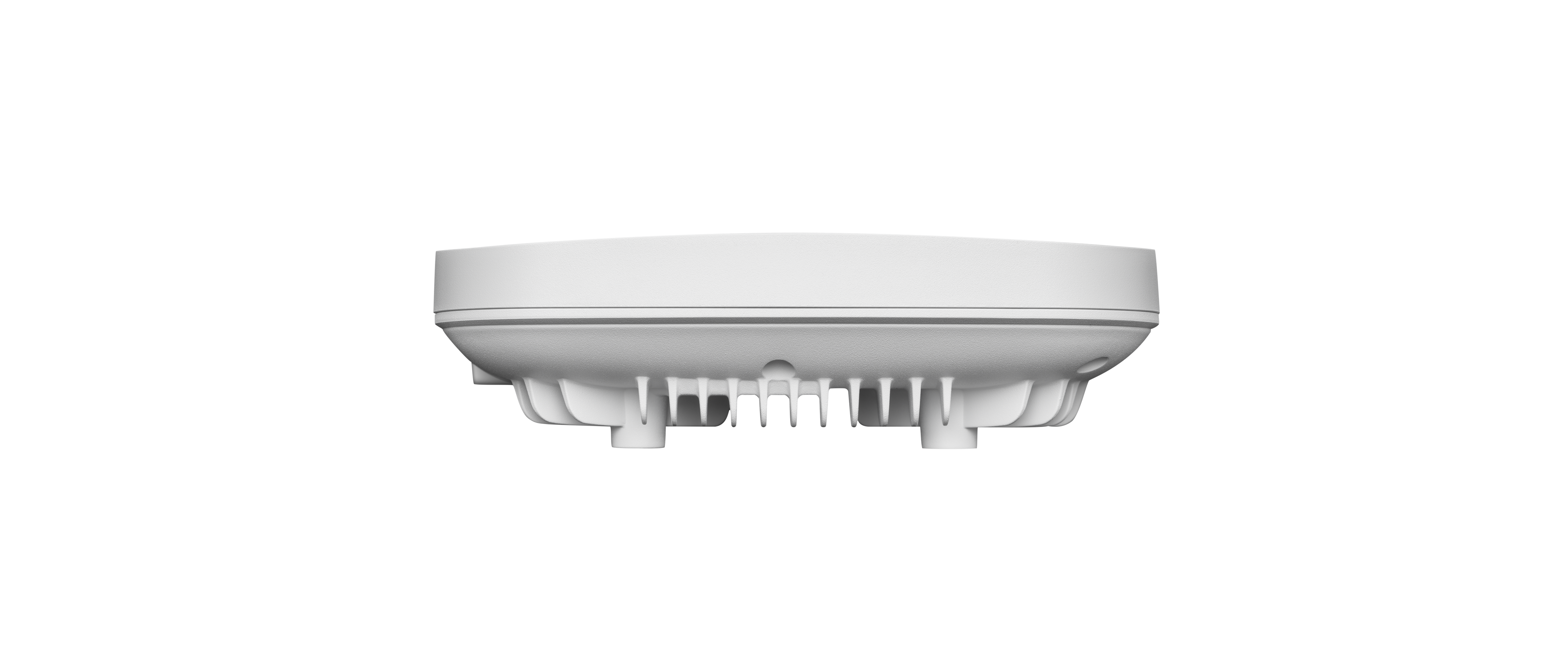

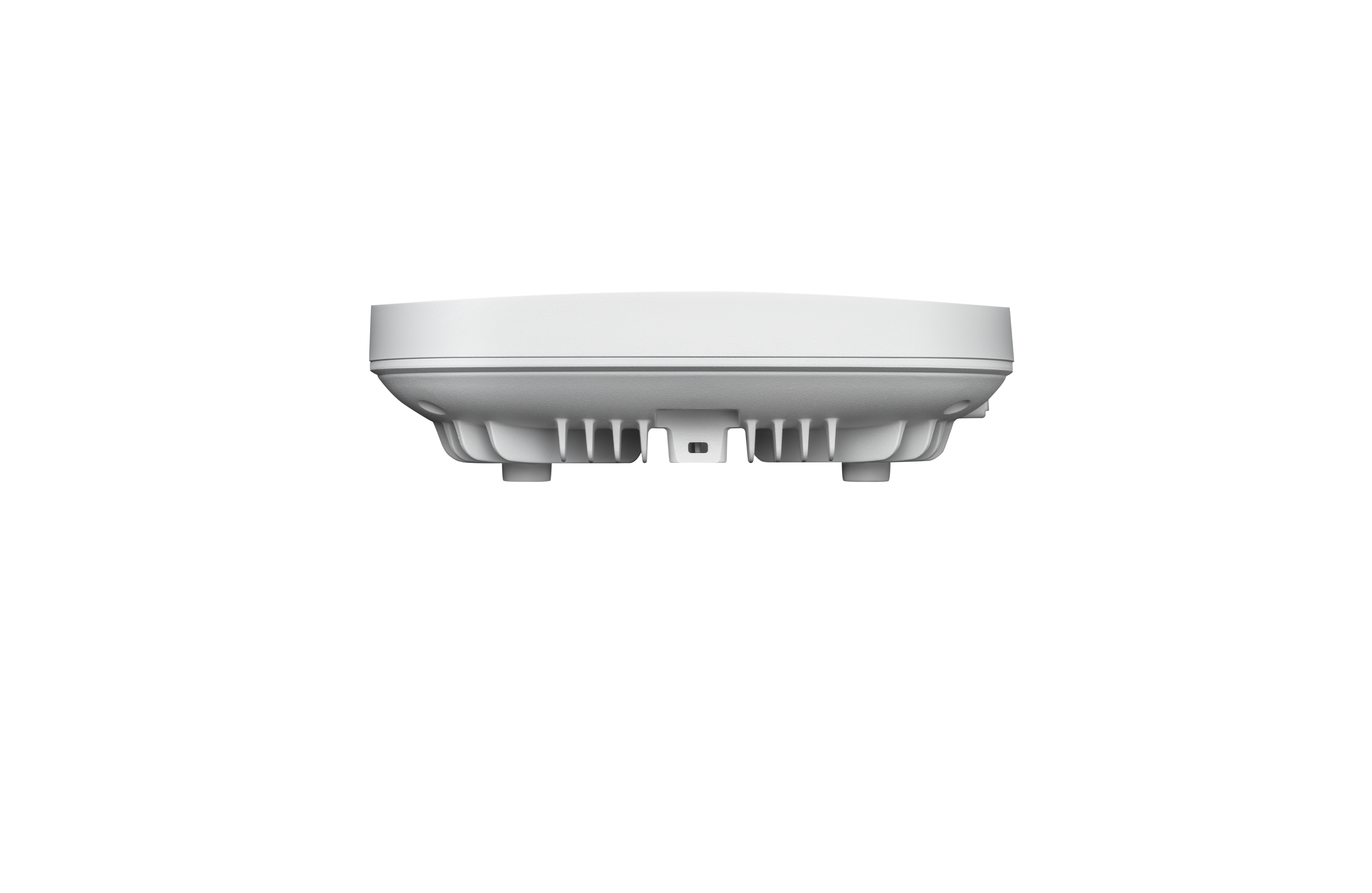

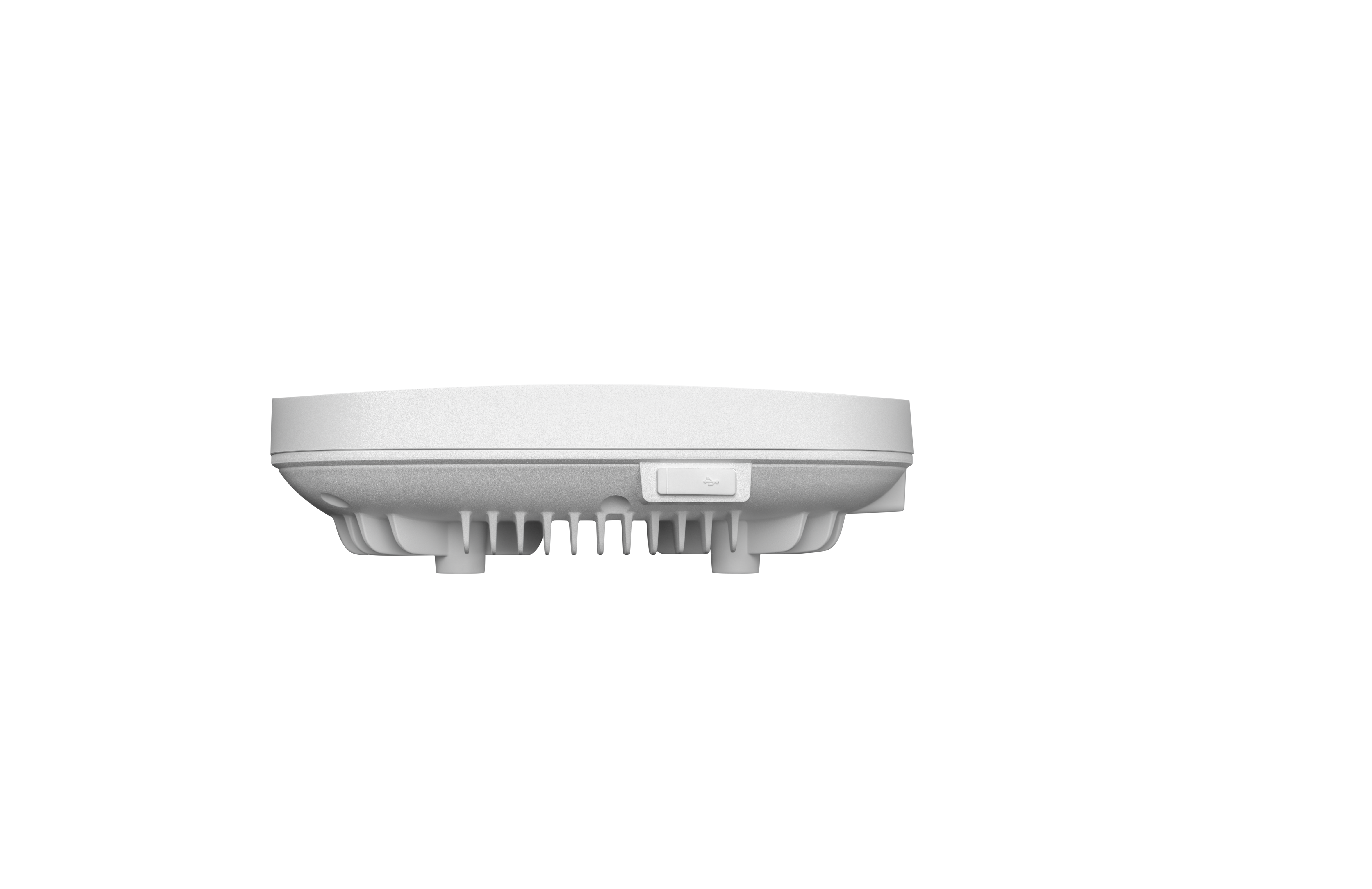

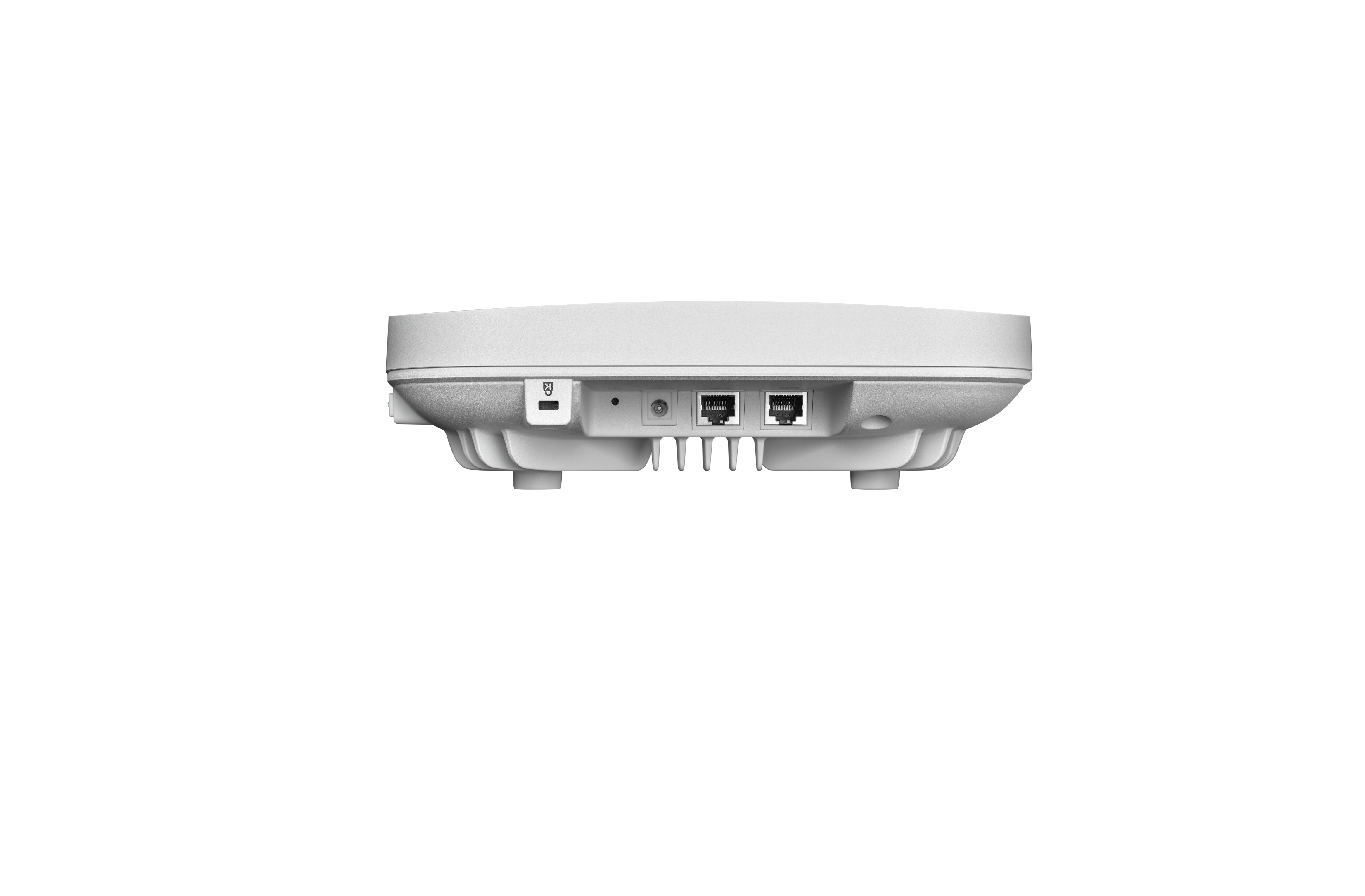

LANCOM LX-7400

Powerful Wi-Fi 7 all-rounder for modern business environments

The new LANCOM LX-7400 Wi-Fi 7 access point is the ideal choice for modern Wi-Fi projects in offices, schools, and hotels. As a powerful all-round Wi-Fi solution, it combines high performance with flexible application options, making it perfect for environments with medium to high usage. Featuring the latest Wi-Fi technology, it ensures fast connections and high stability—even when many end devices are connected simultaneously. A wide range of connectivity options, such as an additional 12V power supply input (power supply not included), USB for IoT dongles, and BLE 5.4, enable a broad range of applications. Simple and quick installation ensures seamless integration into existing networks.

Technical features

  • Wi-Fi 7 access point with 2x2 MIMO at 2.4 GHz and 4x4 MIMO at 5 and 6 GHz, delivering a maximum data rate of 18 Gbps
  • OFDMA for more efficient use of Wi-Fi channels

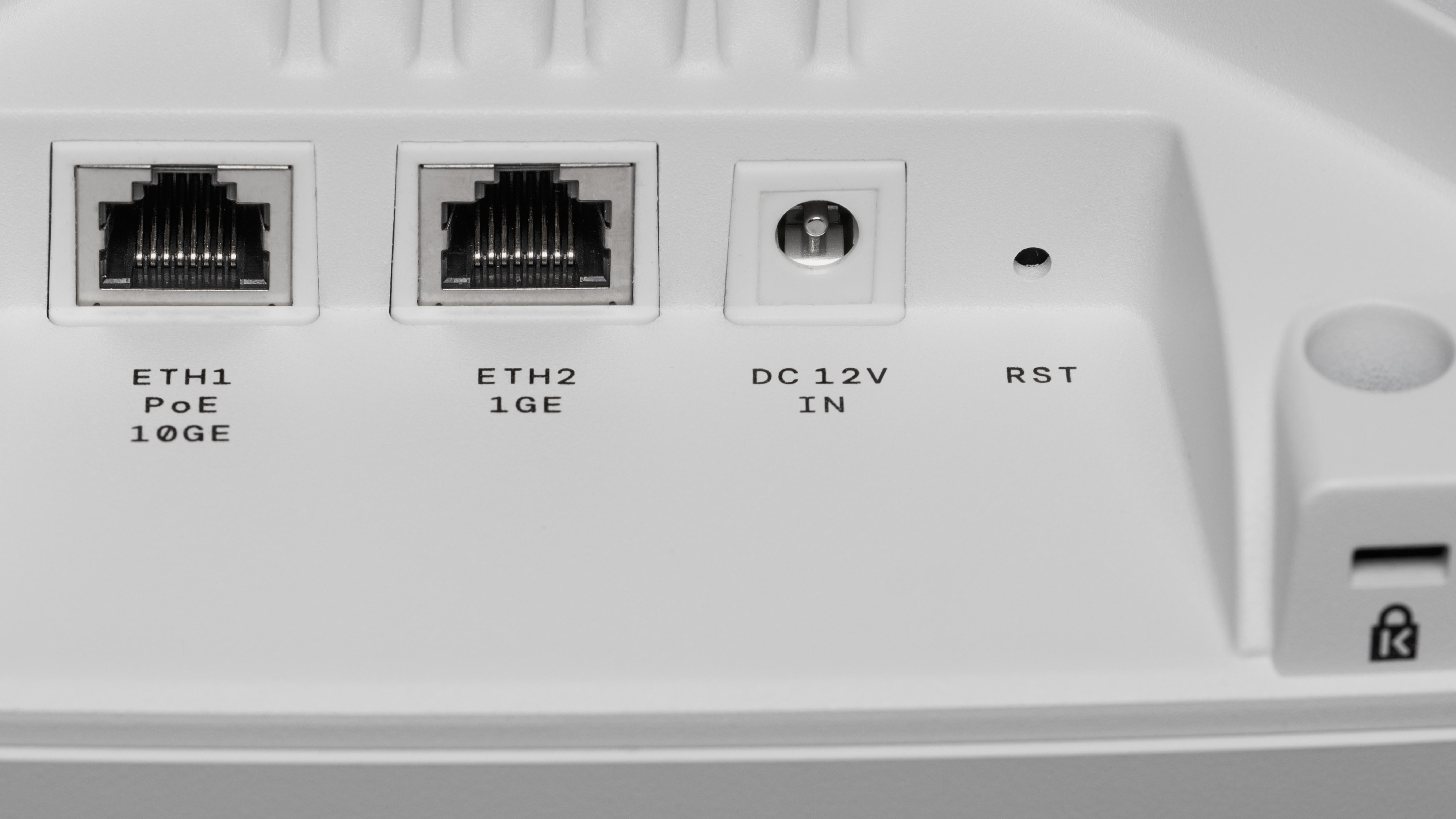

  • 1x 10 GE port with PoE++ (IEEE 802.3bt) and 1x 1 GE port
  • IoT support: BLE 5.4 and USB 2.0
  • 1x 12V power input (power supply not included)
  • Holistic, automated Wi-Fi optimization with LANCOM Active Radio Control 2.0
  • Housing with IP50 protection rating and UL 2043 compliance (certified fire resistance and low smoke emission in case of fire)
  • Innovative design with flexible, theft-proof mounting plate
  • Automatic detection of wall or ceiling mounting via position sensor
  • Energy-saving functions with precise power consumption monitoring (LANCOM Active Power Control)
  • Automated provisioning, operation, and optimization via the LANCOM Management Cloud (LMC)
  • Support for Wi-Fi controller (including Layer 3 tunneling)
  • Suitable for use with electrical medical devices (EN 60601-1)

Highlights

Faster data transfer

With Wi-Fi 7, you benefit from a speed boost of up to 240% compared to Wi-Fi 6 in real-world applications. This is made possible by a doubling of the available frequency spectrum for Wi-Fi through additional 6 GHz frequencies, a doubled maximum channel width (320 MHz instead of the previous 160 MHz), and an increased data density during transmissions (4096 QAM instead of 1024 QAM in Wi-Fi 6). As a result, the LANCOM LX-7400 delivers a maximum aggregated data rate of 18 Gbps across all frequency bands.

Housing design optimized for field use

The design of the LANCOM LX-7400 is based on decades of market experience and valuable user feedback. Its flattened side contours give it a discreet appearance, allowing it to blend seamlessly into any environment. With IP50 protection rating, including rubber-sealed ports, the access point is dustproof. Additionally, it features certified fire resistance and low-smoke emissions in case of fire (UL 2043). The compact mounting bracket with a security lock not only helps prevent opportunistic theft but is also compatible with standard mounting hole patterns from various manufacturers.

Optionally, the LANCOM LX-7000 series offers a specially designed mounting system for ergonomic and time-saving installation on T-bars of suspended ceilings.

Always keeping track – position sensor for optimal Wi-Fi performance

With the integrated position sensor, you always have full control over the physical orientation of your access points. Models in the LX-7000 series automatically detect whether they are correctly mounted on a wall or ceiling. This status is clearly displayed in the LANCOM Management Cloud or via WEBconfig, making it easy to verify both during initial setup and ongoing monitoring—without the need for on-site inspections.
This saves valuable time during troubleshooting and ensures consistently high Wi-Fi performance.

Especially when it comes to new technologies, it is important to strengthen your own decision-making authority and to rely on trustworthy partners. By choosing a LANCOM WLAN infrastructure, you are making a conscious decision to strengthen your digital sovereignty and thus to protect and control hardware, software, data, IT resources, and processes for greater data security, planning reliability, and risk minimization.

Further features

Interference-free use of the 6 GHz frequency band for modern and future applications

Take a seat in the VIP lounge in the Wi-Fi: The LANCOM LX-7400 offers an exclusive Wi-Fi radio field free of interference in the 6 GHz frequency band. While the 2.4 and 5 GHz bands can be used by other wireless technologies such as alarm systems or audio applications, the broadband 6 GHz spectrum is…

Take a seat in the VIP lounge in the Wi-Fi: The LANCOM LX-7400 offers an exclusive Wi-Fi radio field free of interference in the 6 GHz frequency band. While the 2.4 and 5 GHz bands can be used by other wireless technologies such as alarm systems or audio applications, the broadband 6 GHz spectrum is intended for exclusive Wi-Fi use. This enables interference-free Wi-Fi connections with minimal latency and maximum data throughput. Fast-response connections and time-critical Wi-Fi applications in particular benefit from this.

Professional IoT support

With the LANCOM LX-7400, you can easily dive into the world of the Internet-of-Things (IoT). Support for BLE 5.1 and USB 3.0 opens up many possibilities for you to communicate with modern WLAN sensors in devices or objects and use innovative applications such as asset tracking or digital signage with Wireless ePaper. In this way, you can easily operate solutions for digital room signage, electronic shelf labels, and other ePaper applications via the optionally available LANCOM Wireless ePaper USB.

Flexible operation via LANCOM Management Cloud, modern web interface or WLAN controller

Choose freely between operation via the LANCOM Management Cloud, stand-alone via WEBconfig or a WLAN controller! In cloud mode, the LANCOM LX-7200 becomes part of a user-friendly, holistic and automated network management system. Even in stand-alone operation, the LX-7200 offers fast configuration and comprehensive management and monitoring thanks to the intuitive, clear web interface of the new WEBconfig. As a third option, management can also be selected centrally via a WLAN controller.

Carpooling in the radio field – OFDMA for more efficient data traffic

Orthogonal Frequency Division Multiple Access (OFDMA) also aims to optimize the use of the radio field: The frequency range of a Wi-Fi channel is divided into several frequency blocks within a unit of time, creating sub-channels (sub-carriers) with a narrow channel width of up to 2 MHz. This prevents small data packets, which often originate from…

Orthogonal Frequency Division Multiple Access (OFDMA) also aims to optimize the use of the radio field: The frequency range of a Wi-Fi channel is divided into several frequency blocks within a unit of time, creating sub-channels (sub-carriers) with a narrow channel width of up to 2 MHz. This prevents small data packets, which often originate from IoT devices, from taking up and blocking an entire channel with a width of 20, 40 or even 80 MHz. In addition, the LX-7400 bundles several sub-channels and transports them together like a kind of carpool to enable the freest and smoothest possible radio traffic.

More stable transmission quality

Multi-link operation (MLO) automatically uses the frequency band with better quality or even uses two frequency bands simultaneously. In addition, Multi-RU & Puncturing effectively mitigates the previously serious consequences of interference signals. This ensures significantly more reliable transmission and reception quality, especially in radio environments with high signal density.

Reduced overall energy consumption thanks to LANCOM Active Power Control

In light of rising energy costs and the growing societal demand for sustainable solutions, LANCOM Active Power Control provides the ideal answer for your network infrastructure. This intelligent, cloud-based optimization solution dynamically adjusts the available Wi-Fi capacity, reducing the energy…

In light of rising energy costs and the growing societal demand for sustainable solutions, LANCOM Active Power Control provides the ideal answer for your network infrastructure. This intelligent, cloud-based optimization solution dynamically adjusts the available Wi-Fi capacity, reducing the energy consumption of your Wi-Fi infrastructure without compromising operational reliability. In "Sustainability Mode," the functions of the access points are minimized during idle phases, leading to a lower PoE power requirement. A centralized energy monitoring system provides full transparency of your energy consumption.
Read the Techpaper to find out how Active Power Control makes your LANCOM networks even more sustainable and cost-efficient.

Perfect Wi-Fi at the Push of a Button – with LANCOM Active Radio Control 2.0

Retail stores are often located in urban environments with a high density of external Wi-Fi networks, which can directly impact Wi-Fi quality. LANCOM Active Radio Control 2.0 is an intelligent optimization solution that automatically ensures the best possible performance – without requiring any specialized Wi-Fi expertise.

powered by:

Connectors

Wi-Fi out of the box

“The sound planning and implementation of a professional Wi-Fi according to the needs of the companies contributes to providing a reliable and secure wireless IT network connection. If the number of devices with their data transfer requirements exceeds the capacity of the IT network, the performance suffers, the susceptibility to interference increases and work processes are slowed down or even interrupted. Data loss and economic damage such as loss of productivity and revenue are the consequences. Outdated IT networks with low radio frequencies can no longer meet the growing data transfer challenges and quickly turn into bottlenecks.” – techconsult survey from 2023

Get the entire whitepaper now

Further information & news

Options & accessories

Special accessories

LANCOM LX-7000 Low-profile mounting plate
(included in delivery)

The scope of delivery includes the compact mounting plate, which is prepared for the use of existing drill holes when replacing various models on the market.

LANCOM LX-7000 Universal Mount
(optional accessories)

Compatible with drill holes of previous LANCOM access points for even less effort during installation.

LANCOM LX-7000 T-bar Mount
(optional accessories)

Enables cost-saving and ergonomic installation of the access point on T-beams of cassette ceilings, significantly reducing tiring overhead work.
