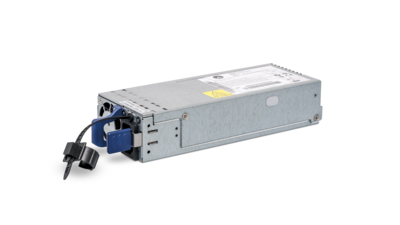

LANCOM SPSU-920

Hot swappable power supply unit for selected LANCOM access switches

This modular power supply unit, as an optional extension of the LANCOM GS-3152XSP, LANCOM GS-4554XP, or GS-4530XP is the ideal solution for business-critical network environments that require maximum reliability or a maximum PoE budget. Use of this PSU (Power Supply Unit) either creates a redundant power supply, with the possibility of changing the power supply unit during operation or doubles the PoE budget and thus the maximum supply of all PoE ports with 30 watts each.

Technical features

  • 920 watts power supply unit
  • Improved failover of the LANCOM GS-3152XSP, GS-4554XP, or GS-4530XP
  • Hot-swappable – can be applied during operation
  • 820 watts PoE power supply and 1,440 watts PoE power supply when used as a second PSU for the LANCOM GS-3152XSP or LANCOM GS-4554XP (boost mode)
  • 720 watts PoE power supply for the LANCOM GS-4530XP (limited by the number of ports)
  • Input voltage: 110 VAC and 230 VAC
  • Over current protection
  • Over voltage protection
  • Over temperature protection
  • Operating temperature: 0°C to 50°C
