LANCOM GS-3152X

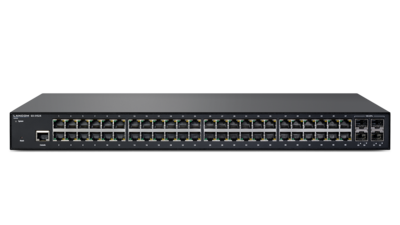

Product photo LANCOM GS-3152X

Layer 3 lite access switch for intelligent networking scenarios

Wherever a large number of network components are used, this fully managed switch is the ideal device. Equipped with 48 Gigabit Ethernet ports, 4 SFP+ ports, and basic layer-3 features such as static routing and DHCP server, this switch provides intelligent management and numerous security features for large networks. Orchestrated via the LANCOM Management Cloud and Cloud-managed LAN, the configuration is dynamic, automated, and efficient.

Technical features

  • Fully Managed access switch with 48x Gigabit Ethernet ports and 4x SFP+
  • Basic layer 3 features like static routing and DHCP server
  • Security through configurable access control on all ports according to IEEE 802.1X
  • Secure remote management through TACACS+, SSH, SSL, and SNMPv3
  • SD-LAN - for easy and fast configuration via the LANCOM Management Cloud
  • IPv6 and IPv4 support for modern enterprise networks
  • 5-year warranty on all components

Advantages

High performance on 52 ports

The LANCOM GS-3152X is equipped with 48 Gigabit Ethernet ports and 4 SFP+ ports supporting transfer rates of up to 10 Gbps. In addition, with a data throughput of 176 Gbps on the backplane, it offers full performance even at high workload. This makes the access switch the powerful foundation for modern network infrastructures in all industries and applications.

Static routing for fast data exchange

The LANCOM GS-3152X supports the basic layer-3 feature static routing and thus the shift of certain routing tasks from the router to the switch. Administrator-predefined network routes, through one or multiple network segments, enable fast data transfer especially in scenarios with high data volumes and relieve the router accordingly. Newly available router capacities can then additionally be used to manage external data traffic. As a result, the entire network efficiency is increased.

DHCP server functionality

As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3152X supports this basic layer- 3 function and thus takes over the IP management of the connected network.

Configurable access control

The LANCOM GS-3152X excludes rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single-based, multi-based, and MAC-based).

Secure remote management

Secure communication protocols such as SSH, SSL, and SNMPv3 make the LANCOM GS-3152X ideal for professional remote network management. The switch also support the TACACS+ protocol for authentication, authorization, and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.

SD-LAN - days become minutes

The LANCOM GS-3152X offers fast and easy network integration and automatic configuration assignment with the LANCOM Management Cloud - without manual configuration. In this way, even complex networking scenarios are easy to administer. SD-LAN eliminates the need for a single device configuration for holistic network orchestration. In addition, automatic VLAN assignment to the desired switch ports is possible. The configurations can be coordinated with each other across locations and network architectures, and at the same time rolled out or updated at the click of a mouse.

IPv6 and IPv4 support

Thanks to its dual-stack implementation, the LANCOM GS-3152X operates in pure IPv4, pure IPv6 or in mixed networks. Applications such as SSL, SSH, Telnet or TFTP can continue to be operated on IPv6 networks. Supported IPv6 features includes stateless auto configuration, neighbor detection, and MLD snooping.

LANCOM switch series comparison

As a reliable basis for high-performance network infrastructures, the LANCOM switch portfolio is the first choice. But how do the switch series differ? Find out with the help of the LANCOM Switch series comparison.

Options & accessories

Service & support

Included services

  • 5 years hardware warranty
  • Free technical support for end customers with valid warranty directly from LANCOM
  • Free technical support for LANcommunity partners with valid warranty directly from LANCOM (availability: 8-10h / 5d, response time: 4h-1d (depending on partner level))

Optional services

Click below to get more information on these service & support products as well as the item numbers for convenient additional booking.

Click below to get more information on these service & support products as well as the item numbers for convenient additional booking.



Notes: Times are given in hours (h) per days (d). The options are available for different service categories (S, M, L, XL) as well as validity (1 year / 3 years / 5 years for LANCOM Service Packs) and can be easily added using the item numbers. The service category of each LANCOM device can be found in the LANCOM price list.



  • LANCOM Service Pack 24/7
    Extended manufacturer support incl. 24/7 emergency hotline with next business day (NBD) advance replacement in case of defect for 1, 3, or 5 years as an option per device
    Availability: 24h / 7d, delivery: NBD
    Item numbers: S: 10230 / 10234 / 10238, M: 10231 / 10235 / 10239, L: 10232 / 10236 / 10240, XL: 10233 / 10237 / 10241
  • LANCOM Service Pack 10/5
    Extended manufacturer support with next business day (NBD) advance replacement in case of defect for 1, 3, or 5 years as an option per device
    Availability: 10h / 5d, delivery: NBD
    Item numbers: S: 10242 / 10243 / 10244, M: 10245 / 10246 / 10247, L: 10248 / 10249 / 10250, XL: 10251 / 10252 / 10253
  • LANCOM Warranty Advanced Option
    Warranty extension to 5 years within the EU with next business day (NBD) advance replacement in case of defect and extension with security updates until the End of Life status of the device as an option per device
    Item numbers: S: 10715, M: 10716, L: 1017, XL: 10718
  • LANCOM MSP-Care 24/7
    Extended manufacturer support incl. 24/7 emergency hotline for projects
    Availability: 24h / 7d
    (on request)
