LANCOM LN-1700B

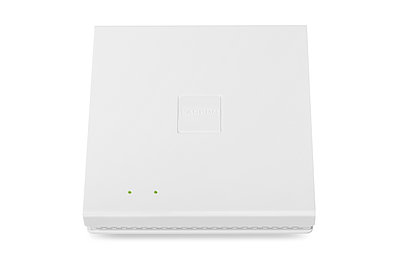

Product photo LANCOM LN-1700B

Enterprise-class Wi-Fi for high-density environments

Achieving an excellent Wi-Fi experience in areas with a large number of clients demands a future-proof infrastructure. This access point offers 11ac Wave 2 WLAN (Wi-Fi 5) for best-quality Wi-Fi in radio networks with large numbers of parallel users. A Bluetooth Low Energy radio module is also integrated to facilitate modern BLE beaconing-based applications. Reason enough for you to trust in reliable and secure Wi-Fi “Made in Germany”.

Technical features

  • Dual concurrent Wi-Fi – parallel operation at 2.4 GHz and 5 GHz with IEEE 802.11ac and IEEE 802.11n
  • Bluetooth Low Energy radio module for innovative beaconing applications
  • Power supply optionally by Power over Ethernet (IEEE 802.3at) or power-supply unit
  • Zero-touch deployment by LANCOM WLAN controller or LANCOM Management Cloud
  • Understated LANCOM design with integrated antennas
  • Easy and secure integration of external users with the Public Spot option
  • Available as individual items or as 10-piece bulk items for large installations
  • Suitable for use with medical electrical equipment in a non-life-supporting environment (EN 60601-1-2)

Advantages

Dual concurrent Wi-Fi with up to 1733 Mbps

The LANCOM LN-1700B features two Wi-Fi radio modules, one offering IEEE 802.11ac Wave 2 and the other offering IEEE 802.11n. This provides fast Wi-Fi to 11n-clients in the 2.4-GHz frequency band and also the growing number of modern 11ac-enabled devices in the 5-GHz band.

Integrated beaconing technology

The Bluetooth Low Energy radio module integrated into the LANCOM LN-1700B is the technical basis for modern BLE Beaconing applications such as push advertisement services to mobile devices (iBeacon). With future firmware updates additional services like asset tracking / management can be realized via partner solutions.

4x4 multi-user MIMO

Multi-user MIMO (MU-MIMO for short) simultaneously distributes all of the available spatial streams of the LANCOM LN-1700B between several different Wave 2 clients, rather than one after the other as was formerly the case. The available bandwidth is used efficiently and delays in the wireless network are substantially reduced.

160-MHz channel width

Increasing the channel width from 80 to 160 MHz doubles the performance for Wave 2 clients. By optimizing the use of the radio spectrum, a client can be supplied with a data rate of up to 1733 Mbps.

Active Radio Control for dynamic radio-field optimization

The LANCOM LN-1700B supports the Wi-Fi optimization feature LANCOM Active Radio Control. This intelligent combination of innovative features included with the LCOS operating system—such as Spectral Scan, Band Steering, Adaptive Noise Immunity, Adaptive RF Optimization, Airtime Fairness, and Client Steering—sustainably increases Wi-Fi performance and supports administrators with professional tools for Wi-Fi management.

Powerful WLAN diagnostics with Spectral Scan

The Spectral Scan function enables the LANCOM LN-1700B to search its radio field for interference sources, so providing a professional tool for efficient WLAN troubleshooting. By scanning the entire frequency spectrum, sources of interference in the radio field can be identified and displayed graphically.

LANCOM security for wireless networks

With numerous integrated security features such as IEEE 802.1X, this enterprise-class access point provides optimal security for networks. Administrators and employees alike benefit from professional security policies on the network.

Managed via LANCOM Management Cloud, WLAN controller, or stand-alone

The LANCOM LN-1700B offers the greatest possible versatility in operation: Managed through the LANCOM Management Cloud, it integrates into a holistic, automated network orchestration system based on software-defined networking technology. It is also able to operate with central management by LANCOM WLAN controller or even in stand-alone mode.

Understated LANCOM design with external antennas

The white LANCOM LN-1700B with external antennas has a fascinating, understatedt design. Its modern look is ideal for operation in any industry as it blends seamlessly into any environment. It also has connectors for external antennas for maximum flexibility and tailor-made Wi-Fi coverage, whatever your needs.

Maximum freedom of design for guest Internet access

The LANCOM Public Spot Option provides reliable and secure Internet access for guests, visitors, partners or customers, all based on a common infrastructure. The guest network is at all times strictly and securely separated from the internal network. There is no need for any additional hardware components, which makes the LANCOM Public Spot option the ideal solution for the provision of secure hotspots.

Connectors


Further information & news

Wi-Fi optimization at the push of a button: LANCOM Active Radio Control 2.0

With the new automation solution LANCOM Active Radio Control 2.0 (ARC 2.0), you rely on holistic, self-learning optimization of your Wi-Fi installation. Real usage data from your LANCOM access points integrated in the LANCOM Management Cloud (except LANCOM LW-500) provide the basis for a predicted, optimal channel distribution, channel width utilization, and transmission power.

All you have to do is activate the LANCOM Active Radio Control 2.0 Wi-Fi scan and have the predicted improvements displayed. One more click and the optimization is applied.

Get to know LANCOM Active Radio Control 2.0

Accessories & options

Service & support

Included services

  • 3 years hardware warranty
  • Technical manufacturer support as part of a support contract
    (LANcommunity partner, LANcare Direct, or LANcare Premium Support)

Optional services

Click below to get more information as well as the item numbers for convenient additional booking.

Click below to get more information as well as the item numbers for convenient additional booking.

Notes: Times are given in hours (h) or minutes (m) per days (d). The products are available for different service categories (S, M, L, XL) as well as validity and can be easily added using the item numbers. The service category of each LANCOM device can be found in the LANCOM price list.


  • LANcare Direct 10/5
    Direct manufacturer support and security updates for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    Item numbers: S: 10740 / 10741 / 10742, M: 10743 / 10744 / 10745, L: 10746 / 10747 / 10748, XL: 10749 / 10750 / 10751

  • LANcare Direct Advanced 10/5
    Direct manufacturer support, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10764 / 10765 / 10766, M: 10767 / 10768 / 10769, L: 10770 / 10771 / 10772, XL: 10773 / 10774 / 10775

  • LANcare Direct 24/7
    Direct manufacturer support incl. 24/7 emergency hotline and security updates for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    Item numbers: S: 10752 / 10753 / 10754, M: 10755 / 10756 / 10757, L: 10758 / 10759 / 10760, XL: 10761 / 10762 / 10763

  • LANcare Direct Advanced 24/7
    Direct manufacturer support incl. 24/7 emergency hotline, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10776 / 10777 / 10778, M: 10779 / 10780 / 10781, L: 10782 / 10783 / 10784, XL: 10785 / 10786 / 10787

  • LANcare Basic
    Security updates and manufacturer support* until EOL as well as 5 years replacement service
    Availability: 8h / 5d, shipment: 5 days
    *support contract required, e. g. LANcommunity Partner or LANcare Direct
    Item numbers: S: 10720, M: 10721, L: 10722, XL: 10723

  • LANcare Advanced
    Security updates and manufacturer support* until EOL as well as 5 years advance relacement
    Availability: 8h / 5d, delivery: NBD
    *support contract required, e. g. LANcommunity Partner or LANcare Direct
    Item numbers: S: 10730, M: 10731, L: 10732, XL: 10733

  • LANcare Premium Support 10/5
    Manufacturer support and security updates for projects
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    (on request)

  • LANcare Premium Support 24/7
    Manufacturer support incl. 24/7 emergency hotline and security updates for projects
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    (on request)

All at a glance

Always keep track of all services and options for LANCOM hardware products with the practical Overview of the LANCOM Service & Support.
