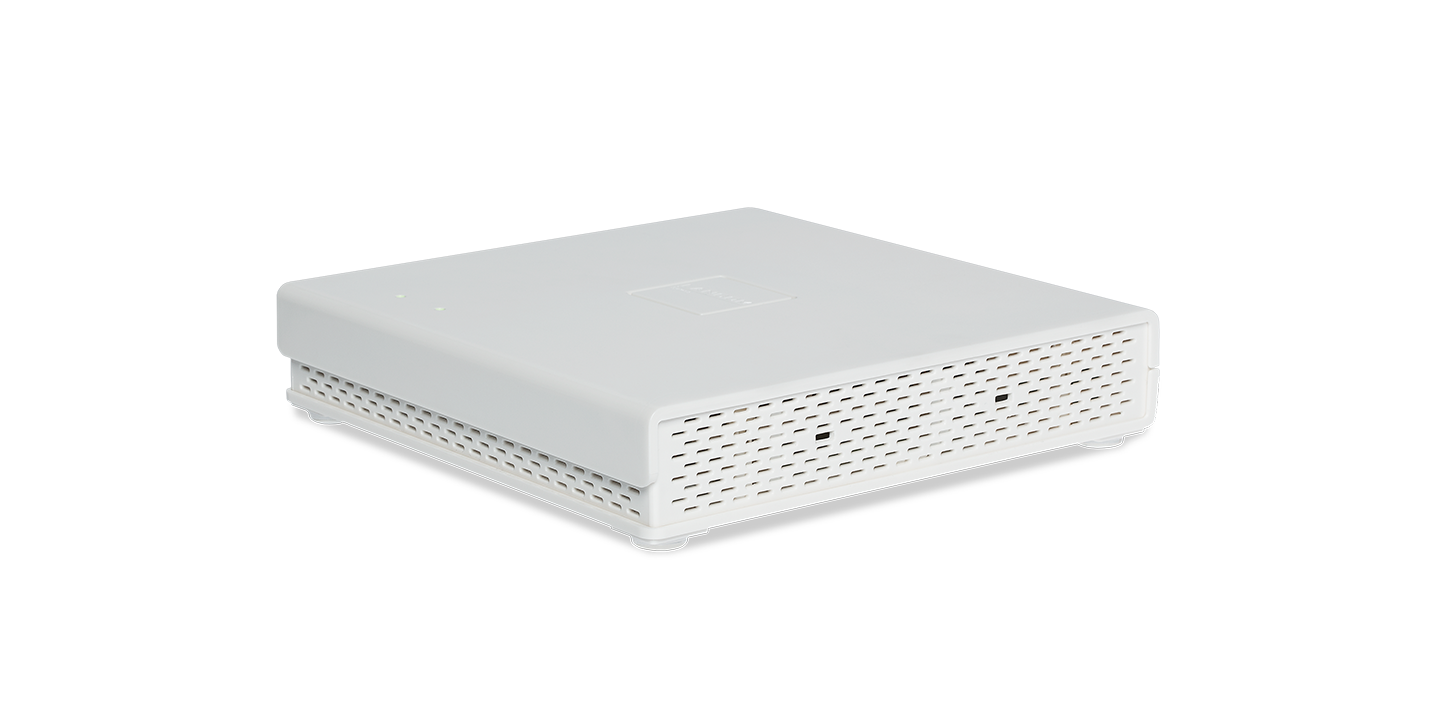

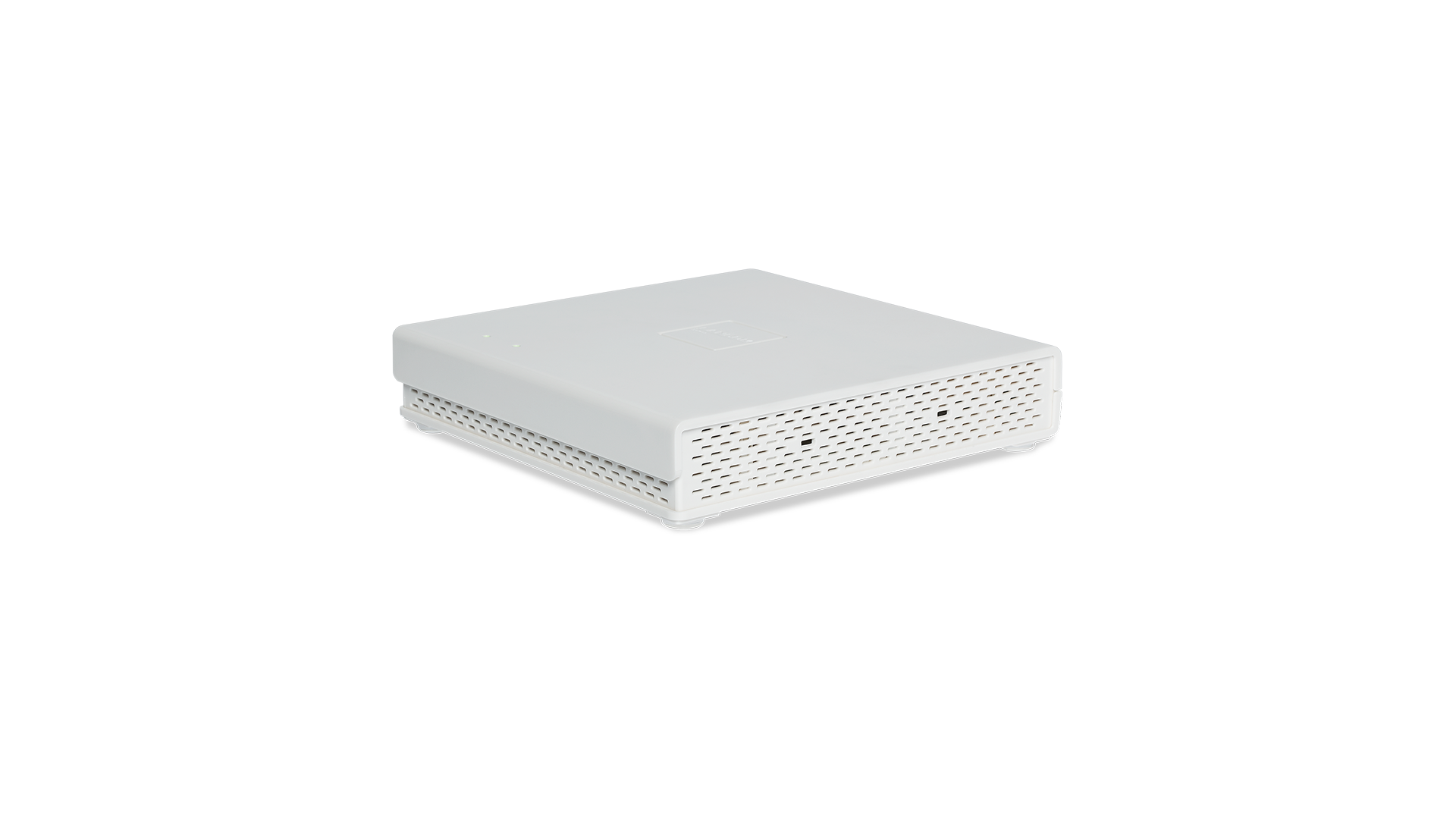

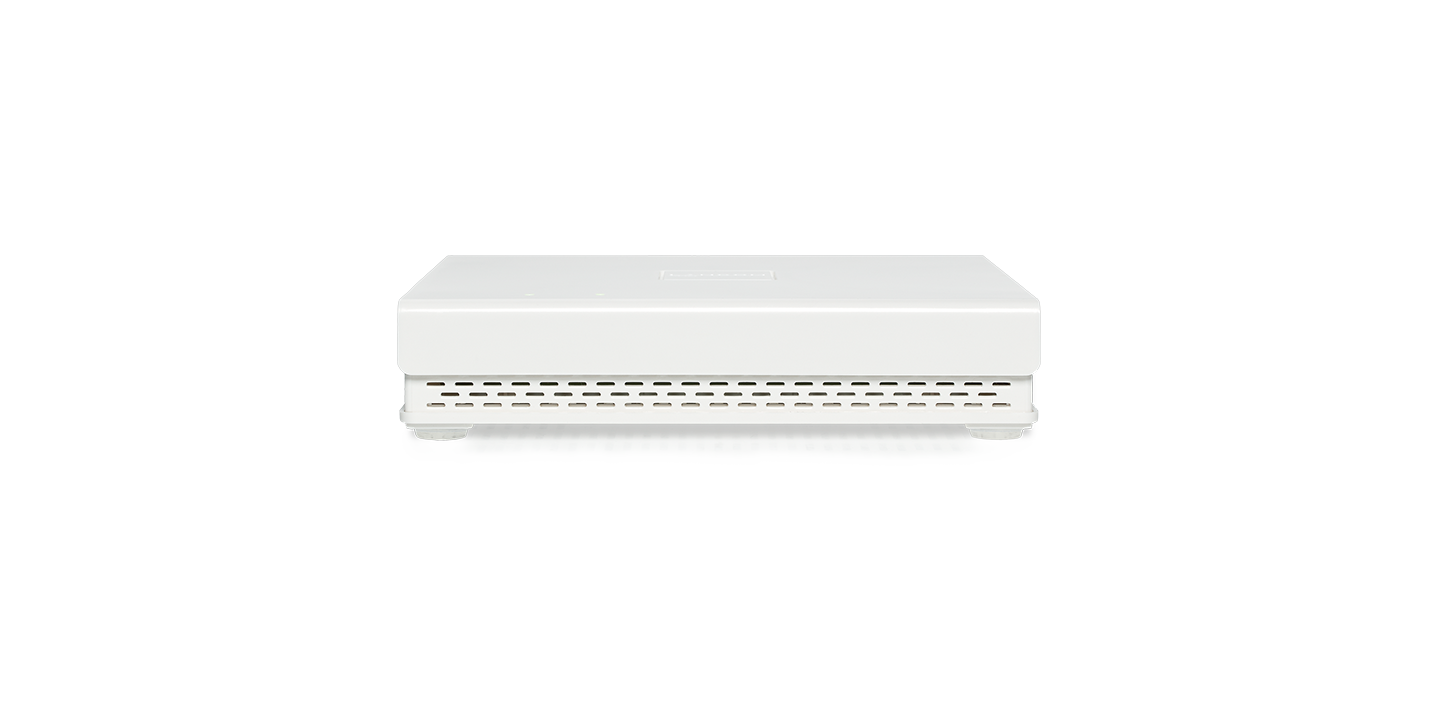

LANCOM LX-6500E

Combined power:
Wi-Fi 6E and ePaper

The LANCOM LX-6500E is your ticket to the VIP lounge in WLAN: In addition to the 2.4 GHz and 5 GHz frequency bands, you can now also access the 6 GHz band reserved exclusively for WLAN applications! The Wi-Fi 6E access point doubles the previously available radio spectrum, providing a power data rate of 8.4 Gbps, aggregated over all frequency bands. Its integrated ePaper module enables digital signage solutions for electronic room signage, price tags, and more to coexist with your WLAN without any problems. Experience an exclusive, particularly low-latency, high-throughput, and stable Wi-Fi, which performs perfectly even with bandwidth-hungry applications such as video streaming and high end device densities!

Technical features

  • Wi-Fi 6E access point with tri-band Wi-Fi – parallel operation in 2.4 GHz, 5 GHz and 6 GHz for up to 8.4 Gbps
  • 4x4 multi-user MIMO for simultaneous for simultaneous beam-steering for multiple clients in down- and uplink mode
  • Integrated radio module for energy-saving communication with LANCOM ePaper displays or electronic price labels*
  • OFDMA for efficient Wi-Fi channel usage
  • Significantly longer battery life thanks to TWT
  • Support of the security standard WPA3
  • IoT support: Bluetooth Low Energy (5.1) and USB 3.0
  • Suitable wall mount included
  • Integrated antennas
  • Power supply via Power over Ethernet (IEEE 802.3bt, PoE++, 4PPoE) or an optionally available power supply unit
  • 2x 2.5 Gigabit Ethernet PoE port (1x IEEE 802.3bt)
  • Automated operation via LANCOM Management Cloud (LMC)
  • WLAN controller support (including layer-3 tunneling)
  • Suitable for use with medical electrical equipment in a non-life-supporting environment (EN 60601-1-2)

* For more information, please feel free to contact us!

Highlights

Tri-band Wi-Fi 6E with up to 8,400 Mbps for your highest throughput and most reliable WLAN yet

Wi-Fi 6E (IEEE 802.11ax standard) delivers multi-gigabit speeds and smooth WLAN operation. The LANCOM LX-6500E opens up the newly released, interference-free 6 GHz frequency band for your network. This makes it possible to integrate clients in the 2.4 GHz and 5 GHz frequency bands as well as modern end devices in the 6 GHz band. The better distribution of clients to the radio spectra and channels that suit them leads to transmission rates of up to 4,800 Mbps in 6 GHz and, in parallel, up to 2,400 Mbps in 5 GHz and up to 1,150 Mbps in 2.4 GHz. The result: All available WLAN frequency bands are used efficiently and Wi-Fi operation remains stable and powerful.

Integrated ePaper radio module for digital signage with LANCOM Wireless ePaper Displays

Companies, public buildings, and conference venues can use digital signage to speed up and automate their processes and present a modern and efficient image. Digital door signs with room assignments, electronic price labels or shelf labels in warehouses, ePaper menu cards or info displays – Wireless ePaper Displays from LANCOM offer a wide range of applications. The radio module integrated in the LANCOM LX-6500E for controlling LANCOM Wireless ePaper Displays allows such digital signage projects to be implemented smoothly and cost-effectively without additional access points. The Wireless ePaper Access Point with Wi-Fi 6E provides both fast, reliable Wi-Fi and interference-free communication with the battery-operated Wireless ePaper Displays in parallel and without conflict.

Interference-free 6 GHz frequency band for even the most advanced devices and applications

A dedicated frequency band just for WLAN, free of interference, and perfect for business-critical, modern applications such as augmented reality (AR), virtual reality (VR), 4K and 8K video streaming, and cloud and collaboration tools – sounds like an exclusive VIP club in WLAN? The LANCOM LX-6500E gives you access to use the 6 GHz frequency band. With an extra 480 MHz of radio spectrum and the 6 additional 80 MHz channels or the 3 additional 160 MHz channels, modern high-end devices operate undisturbed in 6 GHz and older, overcrowded radio frequencies are offloaded. Double your previously available WLAN spectrum with the LX-6500E: as a Wi-Fi 6E access point, it handles channel widths of 20, 40, 80 MHz as well as 160 MHz with 4 streams, ensuring the lowest possible latency.

Learn more about Wi-Fi 6E

Advantages

Less data congestion with 4x4 multi-user MIMO in the downlink and uplink

Applications with high data throughputs could run even smoother and more reliably for you? Then rely on the increased capacity of the LX-6500E! Thanks to Wi-Fi 6E, the effective multi-user MIMO (MU-MIMO for short) can be used in the downlink as well as in the uplink, making the best possible use of…

Applications with high data throughputs could run even smoother and more reliably for you? Then rely on the increased capacity of the LX-6500E! Thanks to Wi-Fi 6E, the effective multi-user MIMO (MU-MIMO for short) can be used in the downlink as well as in the uplink, making the best possible use of the available total capacity in the radio spectrum. Waiting clients are distributed across all available spatial streams, thus minimizing bottleneck effects.

Carpooling in the radio field – OFDMA for more efficient data traffic

The radio field can be used even more optimally: Orthogonal Frequency Division Multiple Access (OFDMA) splits the frequency range of a Wi-Fi channel into several frequency blocks within a unit of time, creating subchannels (subcarriers) with a narrow channel width of up to 2 MHz. Small data packets,…

The radio field can be used even more optimally: Orthogonal Frequency Division Multiple Access (OFDMA) splits the frequency range of a Wi-Fi channel into several frequency blocks within a unit of time, creating subchannels (subcarriers) with a narrow channel width of up to 2 MHz. Small data packets, which among other things often originate from IoT devices, can thus no longer take up and block an entire channel of 20, 40 or even 80 MHz width. By bundling several subchannels, the LX-6500E also creates a kind of carpool for data packets and thus enables radio traffic to flow as freely and smoothly as possible.

Flexible operation via cloud, WEBconfig, or WLAN controller

You control your Wi-Fi and you choose how you manage it: Via the LANCOM Management Cloud, WEBconfig, or a WLAN controller. Cloud operation makes the LANCOM LX-6500E part of a user-friendly, holistic, and automated network orchestration. Stand-alone operation also offers fast configuration and…

You control your Wi-Fi and you choose how you manage it: Via the LANCOM Management Cloud, WEBconfig, or a WLAN controller. Cloud operation makes the LANCOM LX-6500E part of a user-friendly, holistic, and automated network orchestration. Stand-alone operation also offers fast configuration and comprehensive management & monitoring of the LX-6500E with an intuitive, clearly structured WEBconfig. As a third option, management can also be selected centrally via a WLAN controller.

Higher battery runtimes of clients with TWT

Wi-Fi 6E significantly reduces the power consumption of clients such as smartphones, tablets, or notebooks with Target Wake Time (TWT): Access point and client now negotiate when exactly the receiver will wake up to receive the data packets, instead of assuming that the devices are always in a battery-consuming permanent receive state.

Flexible power supply via PoE or power supply unit

The LANCOM LX-6500E can be operated flexibly on any PoE-powered Ethernet port via Power over Ethernet (PoE) in accordance with IEEE 802.3bt. For optimum operation, ideally a corresponding PoE switch (4PPoE, PoE++) is used. Alternatively, you can supply the access point with power via the optionally available power supply unit.

Further IoT support via BLE and USB

With the LANCOM LX-6500E, you can easily dive into the world of the Internet-of-Things (IoT). Support for Bluetooth Low Energy (5.1) and USB 3.0 opens up many possibilities for you to communicate with modern WLAN sensors in devices or objects and use innovative applications such as asset tracking.

Connenctors


Further information & news

Wi-Fi optimization at the push of a button: LANCOM Active Radio Control 2.0

With the new automation solution LANCOM Active Radio Control 2.0 (ARC 2.0), you rely on holistic, self-learning optimization of your Wi-Fi installation. Real usage data from your LANCOM access points integrated in the LANCOM Management Cloud (except LANCOM LW-500) provide the basis for a predicted, optimal channel distribution, channel width utilization, and transmission power.

All you have to do is activate the LANCOM Active Radio Control 2.0 Wi-Fi scan and have the predicted improvements displayed. One more click and the optimization is applied.

Get to know LANCOM Active Radio Control 2.0

Wi-Fi 6E: 6 GHz band for interference-free Wi-Fi

Wi-Fi 6E transfers the existing Wi-Fi 6 features to the 6 GHz band and thus plays out its advantages to the full, especially in high-density environments: Simultaneous and interference-free operation of many WLAN end devices or IoT devices is favored by Wi-Fi 6E with highest data rates and minimal latency.

How you can benefit from the new technology with the Wi-Fi 6(E)-enabled LANCOM devices is shown on the Wi-Fi 6 and Wi-Fi 6E technology page.

Digital Signage with LANCOM

Door signs, price labels, shelf labels, menu cards – information that used to have to be laboriously put on paper and continuously updated can now be transmitted quickly, standardized, and automated with digital signage. As electronic shelf labels, digital advertising posters or menus, and electronic door signs for meeting rooms, classrooms, and treatment rooms, the wireless ePaper displays from LANCOM can be effortlessly integrated into the WLAN and synchronized with calendar and merchandise management systems.

Learn more about Digital Signage with LANCOM

Options & accessories

Service & support

Included services

  • 3 years hardware warranty
  • Technical manufacturer support as part of a support contract
    (LANcommunity partner, LANcare Direct, or LANcare Premium Support)

Optional services

Click below to get more information as well as the item numbers for convenient additional booking.

Click below to get more information as well as the item numbers for convenient additional booking.

Notes: Times are given in hours (h) or minutes (m) per days (d). The products are available for different service categories (S, M, L, XL) as well as validity and can be easily added using the item numbers. The service category of each LANCOM device can be found in the LANCOM price list.


  • LANcare Direct 10/5
    Direct manufacturer support and security updates for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    Item numbers: S: 10740 / 10741 / 10742, M: 10743 / 10744 / 10745, L: 10746 / 10747 / 10748, XL: 10749 / 10750 / 10751

  • LANcare Direct Advanced 10/5
    Direct manufacturer support, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10764 / 10765 / 10766, M: 10767 / 10768 / 10769, L: 10770 / 10771 / 10772, XL: 10773 / 10774 / 10775

  • LANcare Direct 24/7
    Direct manufacturer support incl. 24/7 emergency hotline and security updates for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    Item numbers: S: 10752 / 10753 / 10754, M: 10755 / 10756 / 10757, L: 10758 / 10759 / 10760, XL: 10761 / 10762 / 10763

  • LANcare Direct Advanced 24/7
    Direct manufacturer support incl. 24/7 emergency hotline, security updates, and advance relacement for 1, 3, or 5 years
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2), delivery: NBD
    Item numbers: S: 10776 / 10777 / 10778, M: 10779 / 10780 / 10781, L: 10782 / 10783 / 10784, XL: 10785 / 10786 / 10787

  • LANcare Basic
    Security updates and manufacturer support* until EOL as well as 5 years replacement service
    Availability: 8h / 5d, shipment: 5 days
    *support contract required, e. g. LANcommunity Partner or LANcare Direct
    Item numbers: S: 10720, M: 10721, L: 10722, XL: 10723

  • LANcare Advanced
    Security updates and manufacturer support* until EOL as well as 5 years advance relacement
    Availability: 8h / 5d, delivery: NBD
    *support contract required, e. g. LANcommunity Partner or LANcare Direct
    Item numbers: S: 10730, M: 10731, L: 10732, XL: 10733

  • LANcare Premium Support 10/5
    Manufacturer support and security updates for projects
    Availability: 10h / 5d, first reaction time: 2h (priority 1) up to 4h (priority 2)
    (on request)

  • LANcare Premium Support 24/7
    Manufacturer support incl. 24/7 emergency hotline and security updates for projects
    Availability: 24h / 7d, first reaction time: 30m (priority 1) up to 4h (priority 2)
    (on request)
