LANCOM DPSU-480/55

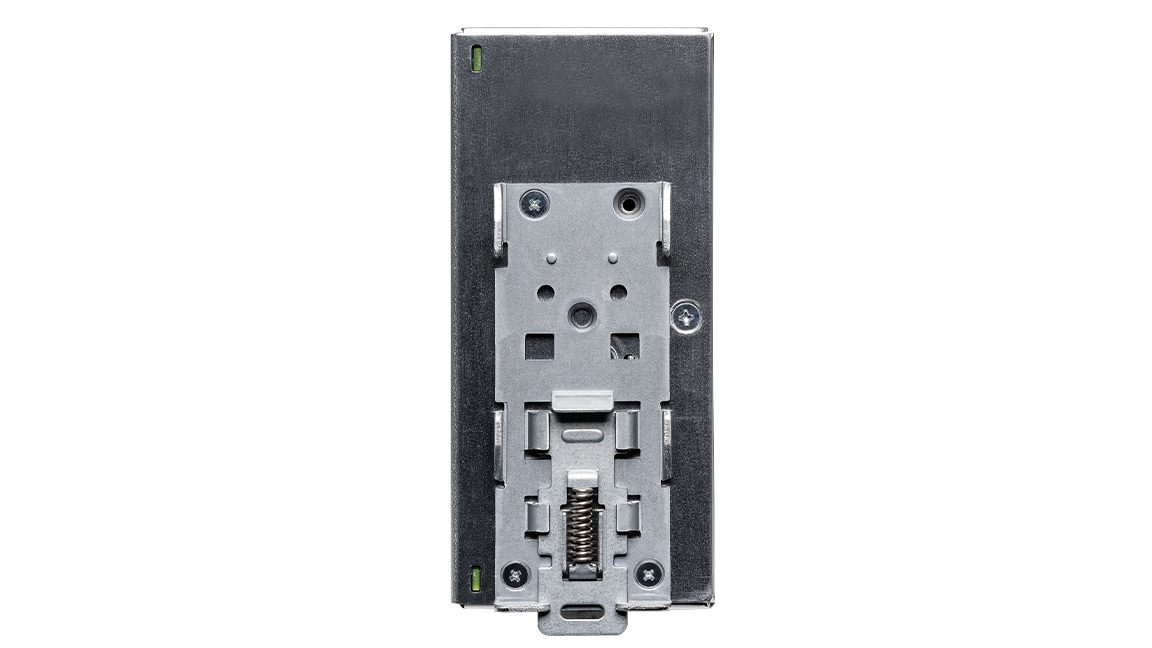

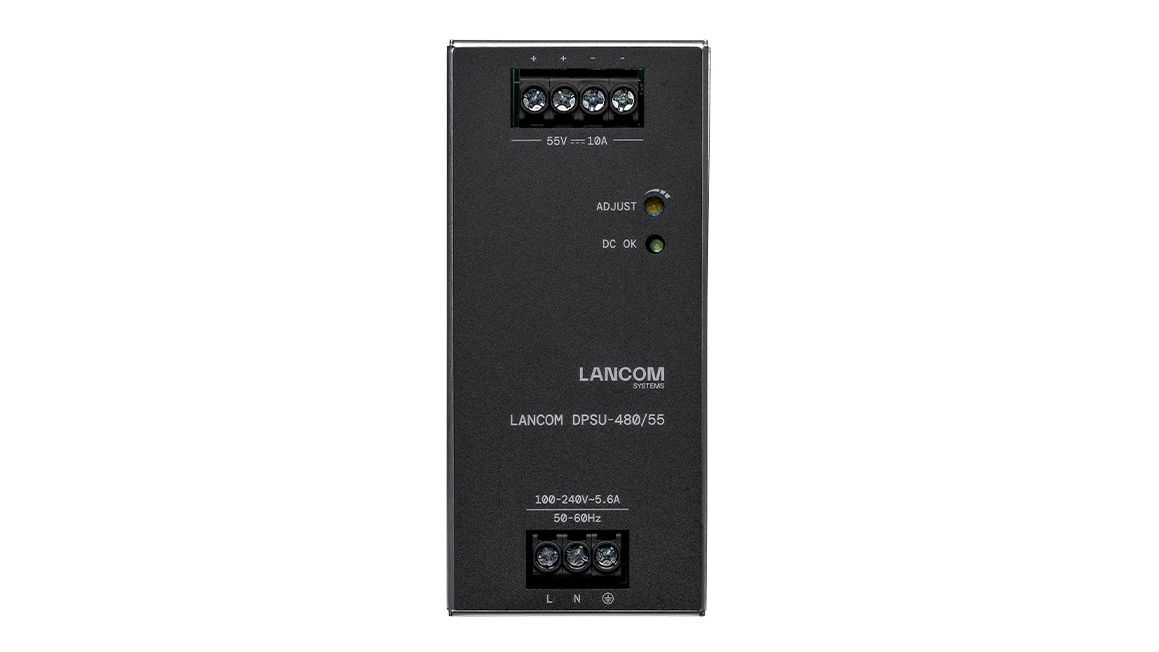

Product photo DPSU-480/55

DIN rail power supply unit for LANCOM industrial access switch

The power supply unit LANCOM DPSU-480/55 is ideal for reliably powering the industrial access switch LANCOM IGS-3510XUP, even in demanding industrial environments with strong temperature fluctuations, vibrations, and dirt. The standardized DIN rail mounting and a robust and compact design in combination with an extended operating temperature of -30 °C to +50 °C make the 480 W power supply unit an efficient power provider for the PoE-capable industrial access switch.

Technical features

  • 480 watts power supply unit for 1-phase systems in DIN rail mounting
  • Compatible with the Industrial Access Switch LANCOM IGS-3510XUP
  • Input voltage: 100 VAC to 240 VAC
  • Output voltage: 55 VDC @ 10 A
  • Over current protection
  • Over voltage protection
  • Short circuit protection
  • Over temperature protection
  • Operating temperature: -30 °C to +50 °C at 230 VAC with -40 °C cold start

Downloads & links

Datasheet

Mounting instructions
