LANCOM Transceiver Modules

Product photo LANCOM SFP transceiver modules

Flexible connections for your switches, routers, and firewalls

LANCOM switches, routers, and firewalls with integrated SFP ports are characterized by maximum versatility in use. Be it for high-speed fiber-optic networking or as a copper-cabled Ethernet port: LANCOM Transceiver modules provide the specialized connections you need for your LANCOM device. And thanks to the tried-and-tested compatibility with LANCOM products, LANCOM Transceiver offer the best connections and highest reliability.

Fiber-optic transceiver modules

The LANCOM transceiver modules for fiber-optic networking of components in Gigabit speed are compatible with SFP ports of all of the switches, routers and Unified Firewalls listed in the table below.

LANCOM SFP-SX-LC1

Medium distances of up to 550 m
[Translate to English:] SFP-Modul SX-LC1
  • 1000BASE-SX standard (SFP)
  • Up to 1 Gbps link speed
  • Full-duplex mode
  • Supports 50/125 µm (550 m cable length) and 62.5/125 µm (300 m cable length) multimode fiber
  • Wavelength 850nm
  • Operating temperature 0–70 °C
  • LC connector
  • Support of digital diagnostic monitoring (DDM)*
  • Also available as 10-piece bulk package

LANCOM SFP-SX2-LC1

Medium distances of up to 2 km
  • 1000BASE-SX standard (SFP)
  • Up to 1 Gbps link speed
  • Full-duplex mode
  • Supports 50/125 µm (2 km cable length) multi mode fiber
  • Wavelength 1310 nm
  • Operating temperature 0–70 °C
  • LC connector
  • Support for digital diagnostic monitoring (DDM)*

LANCOM SFP-LX-LC1

Distances of up to 10 km
[Translate to English:] SFP-Modul LX-LC1
  • 1000BASE-LX standard (SFP)
  • Up to 1 Gbps link speed
  • Full-duplex mode
  • Supports 9/125 µm (10 km cable length) single mode fiber
  • Wavelength 1310nm
  • Operating temperature 0–70 °C
  • LC connector
  • Support of digital diagnostic monitoring (DDM)*
  • Also available as 10-piece bulk package

* This functionality is only supplied by SFP modules of the latest generation (to be recognized from the LANCOM logo) and not in connection with LANCOM R&S®Unified Firewalls.

LANCOM SFP-SX-LC10

Medium distances of up to 300 m
[Translate to English:] SFP-Modul SX-LC10
  • 10GBASE-SR/SW standard (SFP+)
  • Up to 10 Gbps link speed
  • Full-duplex mode
  • Supports 50/125 µm (300 m cable length) multimode fiber
  • Wavelength 850 nm
  • Operating temperature 0–70 °C
  • LC connector
  • Support of digital diagnostic monitoring (DDM)*
  • Also available as 10-piece bulk package

LANCOM SFP-LX-LC10

Distances of up to 10 km
[Translate to English:] SFP-LX-LC10
  • 10GBASE-LR/LW standard (SFP+)
  • Up to 10 Gbps link speed
  • Full-duplex mode
  • Supports 9/125 µm (10 km cable length) singlemode fiber
  • Wavelength 1310 nm
  • Operating temperature 0–70 °C
  • LC connector
  • Support of digital diagnostic monitoring (DDM)*
  • Also available as 10-piece bulk package

LANCOM SFP-LR40-LC10

Distances of up to 40 km
[Translate to English:] LANCOM SFP-LR40-LC10
  • 10GBase-ER standard (SFP+) module
  • Up to 10 Gbps link speed
  • Full duplex mode
  • Support 9/125 µm single mode fiber (max. distance 40 km)
  • Wavelength 1550 nm, EML transmitter
  • LC connector
  • Connection to SFP+ ports
  • Swappable during system operation
  • Also available as 10-piece bulk package

* This functionality is only supplied by SFP modules of the latest generation (to be recognized from the LANCOM logo) and not in connection with LANCOM R&S®Unified Firewalls.

LANCOM SFP-SR-LC25

Medium distances of up to 100 m
[Translate to English:] LANCOM SFP-SR-LC25
  • 25GBASE-SR/SW SFP module
  • Up to 25 Gbps link speed
  • Supports 50 µm and 125 µm multi mode fiber (max. distance 100 m)
  • Wavelength 850 nm
  • LC connector
  • Connection to SFP28 ports
  • Swappable during system operation

LANCOM SFP-LR-LC25

Distances of up to 10 km
[Translate to English:] Produktbild LANCOM SFP-Modul SFP-LR-LC25
  • 25GBASE-LR/LW SFP module
  • Up to 25 Gbps link speed
  • Supports 9 µm single mode fiber (max. distance 10 km)
  • Wavelength 1310 nm
  • LC connector
  • Connection to SFP28 ports
  • Swappable during system operation

LANCOM SFP-SR-MPO40

Medium distances of up to 300 m
[Translate to English:] LANCOM SFP-SR-MPO40
  • 40GBASE-SR/SW SFP module (QSFP+)
  • Up to 40 Gbps link speed
  • Supports 50/125 µm multi mode fiber (max. distance 300 m)
  • Wavelength 850 nm
  • Module equipped with MPO port for connection to QSFP+-Port
  • Swappable during system operation

LANCOM SFP-LR-LC40

Distances of up to 10 km
[Translate to English:] LANCOM SFP-LR-LC40
  • 40GBASE-LR/LW-SFP module (QSFP+)
  • Up to 40 Gbps link speed
  • Supports 9 µm single mode fiber (max. distance 10 km)
  • Wavelength 1310 nm
  • LC connector
  • Connection to QSFP+ ports
  • Swappable during system operation
  • Also available as 10-piece bulk package

LANCOM SFP-SR-MPO100

Medium distances of up to 100 m
  • 100GBASE-SR4 QSFP module (QSFP28)
  • Up to 100 Gbps link speed
  • Supports 50/125 µm multi mode fiber (max. distance: OM3: 70 m, OM4: 100 m)
  • Wavelength 850 nm (4 channels)
  • Operating temperature 0-70 °C
  • MPO port (MPO 12-connector)
  • Connection to QSFP28 ports
  • Swappable during system operation
  • Also available as 10-piece bulk package

LANCOM SFP-LR-LC100

Distances of up to 10 km
Product photo LANCOM SFP-LR-LC100
  • 100GBASE-LR4 QSFP module (QSFP28)
  • Up to 100 Gbps link speed
  • Supports 9/125 µm single mode fiber (max. distance 10 km)
  • Wavelength 1310 nm (4 channels)
  • Operating temperature 0-70 °C
  • LC-PC/UPC connector
  • Connection to QSFP28 ports
  • Swappable during system operation

Bidirectional fiber-optic transceiver modules

Bidirectional transceiver modules require only a single optical fiber for data transmission, which simplifies network provisioning, cabling, and configuration.

LANCOM SFP-BiDi1550-SC1

For 1G fiber-optic networking of LANCOM products
Product photo LANCOM SFP-BiDi1550-SC1
  • Transmitting and receiving via only one optical fiber with two separate
  • wavelengths (1310 nm / 1550 nm)
  • SC/UPC connector
  • Up to 1 Gbps link speed
  • Full duplex operation
  • Supports 9/125 µm (20 km cable length) single mode fiber
  • Support for Digital Diagnostic Monitoring (DDM)
  • Swappable during system operation (hot-pluggable)

LANCOM SFP-BiDi1310-LC10

For 10G fiber-optic networking of LANCOM switches
Product photo LANCOM SFP-BiDi1310-LC10
  • Transmitting and receiving via only one optical fiber with two separate
  • wavelengths (1270 nm / 1330 nm)
  • LC/UPC connector
  • Up to 10 Gbps link speed
  • Full duplex operation
  • Supports 9/125 µm (20 km cable length) single mode fiber
  • Support for Digital Diagnostic Monitoring (DDM)
  • Swappable during system operation (hot-pluggable)

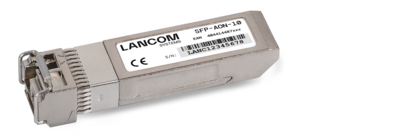

LANCOM SFP-AON-1

For connection to active fiber optic lines (FTTH)

LANCOM SFP-GPON-1

For connection to passive fiber optic lines (FTTH)

Copper transceiver modules

In order to use a SFP port of the devices listed in the table below for Gigabit speed over copper lines, we offer the following transceiver modules:

LANCOM SFP-CO1

1G media converter for using a SFP port for copper lines
LANCOM SFP modul SFP-CO1
  • RJ45 Ethernet transceiver 1000BASE-T
  • Up to 1 Gbps link speed
  • Full-duplex mode
  • Operating temperature 0–70 °C
  • Also available as 10-piece bulk package

Note: For operating LANCOM SFP-CO1 in a LANCOM switch, a firmware LCOS SX 3.30 RU3 or higher is required. The firmware is available in our download section.

LANCOM SFP-CO10-MG

10G media converter for using CAT6A cables in SFP ports for copper lines
Product photo LANCOM SFP-CO10-MG
  • Multi-Gigabit Ethernet copper SFP module
  • Up to 10 Gbps link speed
  • Cable length up to 30 m when using CAT6A cables
  • Multi-Gigabit (10/5/2.5/1) Ethernet capable
  • Swappable during system operation
  • Also available as 10-piece bulk package

Supported devices

The optical transceivers (SFP modules) offered here have been tested and approved across all models by LANCOM quality assurance. This means that you receive the full warranty and manufacturer support for these modules. Please note that support for third-party accessories (SFP) is excluded.

Notes:

  • The modules SFP-SX-LC1, SFP-LX-LC1, and SFP-SX2-LC1 are downward compatible with the 1 Gbps SFP interfaces of all LANCOM R&S®Unified Firewalls and LANCOM switches.
  • The module SFP-CO1 is not suitable for LANCOM GS-13xx, LANCOM 190x, and LANCOM 2326x(+), as these products are equipped with combo ports.

Compatibility of transceiver modules with LANCOM switches



SFP-SX-LC1 /

SFP-SX2-LC1 /

SFP-LX-LC1

SFP-SX-LC10 /

SFP-LX-LC10 /

SFP-LR40-LC10

SFP-SR-LC25 /

SFP-LR-LC25

SFP-SR-MPO40 /

SFP-LR-LC40

SFP-SR-MPO100 /

SFP-LR-LC100

SFP-

BiDi1550-SC1

SFP-

BiDi1310-LC10

SFP-CO1

SFP-CO10-MG

CS-8132F





YS-7154CF





XS-6128QF





max. 4 per switch

XS-5116QF







max. 4 per switch

XS-5110F





max. 4 per switch

XS-4500 series



max. 4 per switch

GS-4500 series







max. 2 per switch

XS-3000 series





max. 1 per switch

GS-3000 series





max. 1 per switch

GS-2328F







GS-2326P+





GS-2326+





GS-2310 series





Compatibility of transceiver modules with LANCOM routers und WLAN controllers



SFP-SX-LC1 /

SFP-SX2-LC1 /

SFP-LX-LC1

SFP-SX-LC10 /

SFP-LX-LC10 /

SFP-LR40-LC10

SFP-CO1

SFP-BiDi1550-SC1

SFP-AON-1

SFP-GPON-1

ISG-8000

ISG-5000

1900 series

1800 series

1790EF (EOS)

WLC-2000, WLC-60

Compatibility of transceiver modules with LANCOM R&S®Unified Firewalls and LANCOM UF Extension Modules



SFP-SX-LC1 /

SFP-LX-LC1

SFP-SX-LC10 /

SFP-LX-LC10

SFP-SR-MPO40 /

SFP-LR-LC40

SFP-CO1

SFP-AON-1

R&S®UF-760

with UF Extension Module 4x 1G SFP (UF-X60)

with UF Extension Modules 2x 10G SFP+ / 4x 10G SFP+ (UF-X60)

with UF Extension Module 2x 40G QSFP+ (UF-760)

R&S®UF-360

with UF Extension Module 4x 1G SFP (UF-X60)

with UF Extension Modules 2x 10G SFP+ / 4x 10G SFP+ (UF-X60)

R&S®UF-260

R&S®UF-T60

R&S®UF-910 / UF-900 (EOS)

with Extension Modules 4x 1G SFP / 2x 10G SFP+ (UF-500, UF-9XX)

R&S®UF-500 (EOS)

with Extension Modules 4x 1G SFP / 2x 10G SFP+ (UF-500, UF-9XX)
