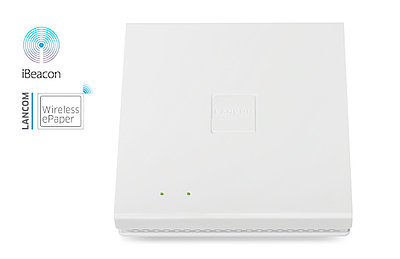

LANCOM LN-1700UE
Gigabit Wi-Fi combined with digital signage technology
Fast, future-proof, and patented innovation -– the LANCOM LN-1700UE is an all-round solution?that operates different wireless technologies in parallel.
In high-density environments with many parallel users, you benefit from high-performance Wi-Fi with up to 1733 Mbps. With digital signage support from the manufacturers VUSION and PDi Digital, as well as a USB port for connecting additional IoT components, it enables the creation of fast enterprise Wi-Fi networks in combination with modern digital signage and Internet of Things solutions.
- Dual concurrent WLAN – parallel operation at 2.4 and 5 GHz with up to 1733 Mbps in IEEE 802.11ac Wave 2 (Wi-Fi 5) and 450 Mbps in IEEE 802.11n (Wi-Fi 4)
- 4x4 Multi-User MIMO for simultaneous beam-steering for multiple clients
- Integrated radio module for energy-efficient communication with digital displays for price labeling or IIoT applications *
- USB 2.0 port for the integration of future IoT radio systems
* For more information, please feel free to contact us!
- Power supply optionally via Power over Ethernet (IEEE 802.3at) or power-supply unit
- Zero-touch deployment by LANCOM WLAN controller or LANCOM Management Cloud
- Straight-lined design with integrated antennas design with integrated antennas
- User-friendly and secure integration of external users through the LANCOM Public Spot Option
Dual concurrent Wi-Fi with up to 1733 Mbps
The LANCOM LN-1700UE features two Wi-Fi radio modules, one offering IEEE 802.11ac Wave 2 (Wi-Fi 5) and the other offering IEEE 802.11n (Wi-Fi 4). This provides fast Wi-Fi to 11n-clients in the 2.4-GHz frequency band and also the growing number of modern 11ac-enabled devices in the 5-GHz band.
LANCOM security for wireless networks
With numerous integrated security features such as IEEE 802.1X, this enterprise-class access point provides optimal security for networks. Administrators and employees alike benefit from professional security policies on the network.
Control of digital displays
In addition to two Wi-Fi radio modules, the LANCOM LN-1700UE also has a radio module for controlling digital displays from the manufacturers VUSION and PDi Digital, making modern, digital signage possible. As price labeling in retail, as a control or information display in the warehouse or for scannable, interactive labeling of automated components in an industrial environment, electronic signage can streamline work processes and save resources. Thanks to patented technology, fast, reliable Wi-Fi and the control of the displays work in parallel and without interference.
IoT-ready
The aim of the IoT ("Internet of Things") is to capture information about physical "things", mostly by wireless, and to make it accessible over the network.The integrated USB port of the LANCOM LN-1700UE provides you with the basis of integrating future IoT radio systems into your existing WLAN infrastructure.
4x4 multi-user MIMO
Multi-user MIMO (MU-MIMO for short) simultaneously distributes all of the available spatial streams of the LANCOM LN-1700UE between several different Wave 2 clients, rather than one after the other as was formerly the case. The available bandwidth is used efficiently and delays in the wireless network are substantially reduced.
Active Radio Control for dynamic radio-field optimization
The LANCOM LN-1700UE supports the Wi-Fi optimization feature LANCOM Active Radio Control. This intelligent combination of innovative features included with the LCOS operating System - such as Spectral Scan, Band Steering, Adaptive Noise Immunity, Adaptive RF Optimization, Airtime Fairness, and Client Steering - sustainably increases Wi-Fi performance and supports administrators with professional tools for Wi-Fi management.
Managed via LANCOM Management Cloud, WLAN controller, or stand-alone
The LANCOM LN-1700UE offers the greatest possible versatility in operation: Managed through the LANCOM Management Cloud, it integrates into a holistic, automated network orchestration system based on software-defined networking technology. It is also able to operate with central management by LANCOM WLAN controller or even in WebGUI mode.
Maximum freedom of design for guest Internet access
The LANCOM Public Spot Option, the LN-1700UE provides reliable and secure Internet access for guests, visitors, partners or customers, all based on a common infrastructure. The guest network is at all times strictly and securely separated from the internal network. There is no need for any additional hardware components, which makes the LANCOM Public Spot option the ideal solution for the provision of secure hotspots.
Wi-Fi out of the box
“The sound planning and implementation of a professional Wi-Fi according to the needs of the companies contributes to providing a reliable and secure wireless IT network connection. If the number of devices with their data transfer requirements exceeds the capacity of the IT network, the performance suffers, the susceptibility to interference increases and work processes are slowed down or even interrupted. Data loss and economic damage such as loss of productivity and revenue are the consequences. Outdated IT networks with low radio frequencies can no longer meet the growing data transfer challenges and quickly turn into bottlenecks.” – techconsult survey from 2023
Wi-Fi optimization at the push of a button: LANCOM Active Radio Control 2.0
With the new automation solution LANCOM Active Radio Control 2.0 (ARC 2.0), you rely on holistic, self-learning optimization of your Wi-Fi installation. Real usage data from your LANCOM access points integrated in the LANCOM Management Cloud (except LANCOM LW-500) provide the basis for a predicted, optimal channel distribution, channel width utilization, and transmission power.
All you have to do is activate the LANCOM Active Radio Control 2.0 Wi-Fi scan and have the predicted improvements displayed. One more click and the optimization is applied.
Everything NIS2-compliant and digitally sovereign?
Does your technical equipment fulfil the NIS2 requirements? Does it support your digital sovereignty?
The EU directive on network and information security for enterprises, NIS2, may also affect you and sets strict security standards that could require action.
A plus point: measures for NIS2 compliance also strengthen your digital sovereignty. Put your network to the test now!
Included services
- 3 years replacement service (return & replace)
- Technical manufacturer support for LANcommunity partners and end customers with LANcare Direct or LANcare Premium Support
All at a glance
Always keep track of all services and options for LANCOM hardware products with the practical Overview of the LANCOM Service & Support.
