Professional entry into highly efficient Wi-Fi 6

With the LANCOM LW-600 you get high-throughput performance of the latest Wi-Fi 6 generation, accompanied by an excellent price-performance ratio. This access point is the perfect solution wherever powerful Wi-Fi is required for a small to medium-sized number of users. Thanks to its modern, unobtrusive design, it fits harmoniously into environments like hotels, small offices, and doctor's offices or small schools. It can be conveniently managed by integrating it into the LANCOM Management Cloud (LMC) or as a stand-alone device using the intuitive web interface (WEBconfig). WLAN controller-based operation is also possible.

Technical features

  • Dual concurrent Wi-Fi – parallel operation at 2.4 GHz and 5 GHz with Wi-Fi 6 (IEEE 802.11ax)
  • 2x2 multi-user MIMO for simultaneous beam-steering for multiple clients in down- an uplink mode
  • Discreet smoke detector design with integrated antennas
  • Intuitive web interface (WEBconfig) for easy management and monitoring
  • Automated operation via the LANCOM Management Cloud (LMC)
  • WLAN controller support (including layer-3 tunneling)
  • Support of the security standard WPA3
  • Uncompromising and future-proof standards for warranty, support, and software lifecycle management
  • Suitable for use with medical electrical equipment in a non-life-supporting environment (EN 60601-1-2)


Dual concurrent Wi-Fi with an aggregated datarate of up to 1,775 Mbps

The LANCOM LW-600 offers the Wi-Fi 6 standard (IEEE 802.11ax) for fast wireless LAN for clients in the 2.4- and 5-GHz bands. Wi-Fi 6 technology achieves transmission rates of up to 1,200 Mbps at 5 GHz and simultaneously up to 575 Mbps at 2.4 GHz.

2x2 Multi-User MIMO for downlinks and uplinks

Multi-user MIMO (MU-MIMO for short) simultaneously distributes all of the available spatial streams of the LANCOM LW-600 between several different clients, rather than one after the other as was formerly the case. The available bandwidth is used efficiently and delays in the wireless network are substantially reduced. With Wi-Fi 6, MU-MIMO is not, as before, only usable in the downlink but now also in the uplink as well.

Modern web interface for stand-alone operation

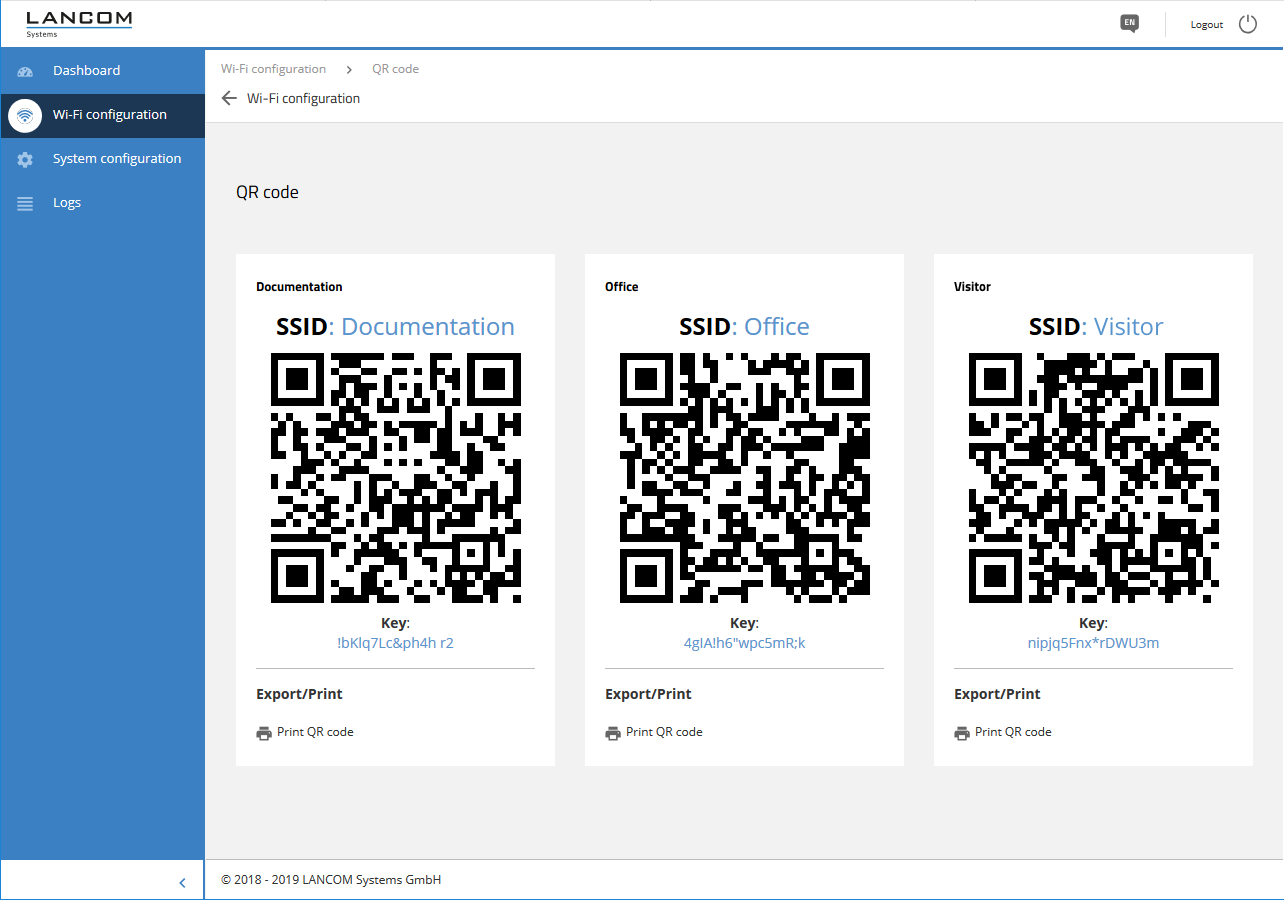

For stand-alone operation, the intuitive web interface of the new WEBconfig provides the best overview for comprehensive management and monitoring. The device is set up in a few moments. Modern dashboards clearly display the current Wi-Fi status and enable the simple configuration of individual Wi-Fi networks (SSID) and the associated network keys. Other options include smart features such as the easy integration of new clients using QR codes.

Operates via the LANCOM Management Cloud

The LANCOM LW-600 offers unsurpassed user-friendliness: Managed through the LANCOM Management Cloud, it integrates into a holistic, automated network orchestration system based on software-defined networking technology. Zero-touch deployment also enables quick and easy network integration as well as automatic assignment of the configuration—without manual effort. After network authentication, the access point immediately receives the right configuration. WLAN anomaly detection is also possible. This function supports the administrator in securing network availability by allowing the LANCOM Management Cloud to identify anomalies in the Wi-Fi and to offer recommendations for solutions that the administrator can implement if desired.

Operation via a WLAN controller

The LANCOM LW-600 offers the best possible flexibility in terms of operating mode. In addition to stand-alone operation or integration into the LANCOM Management Cloud, management can also be performed centrally via a WLAN controller.

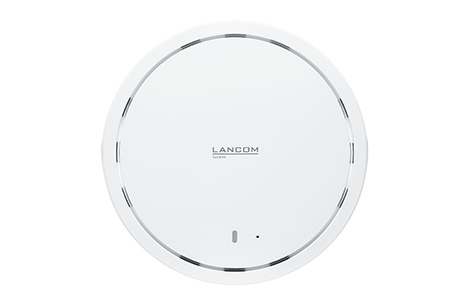

Modern smoke detector design

The white, understated housing of the LANCOM LW-600 is ideally suited for discreet use in hotel floors, meeting rooms or classrooms. It fits seamlessly into any environment.

Flexible power supply

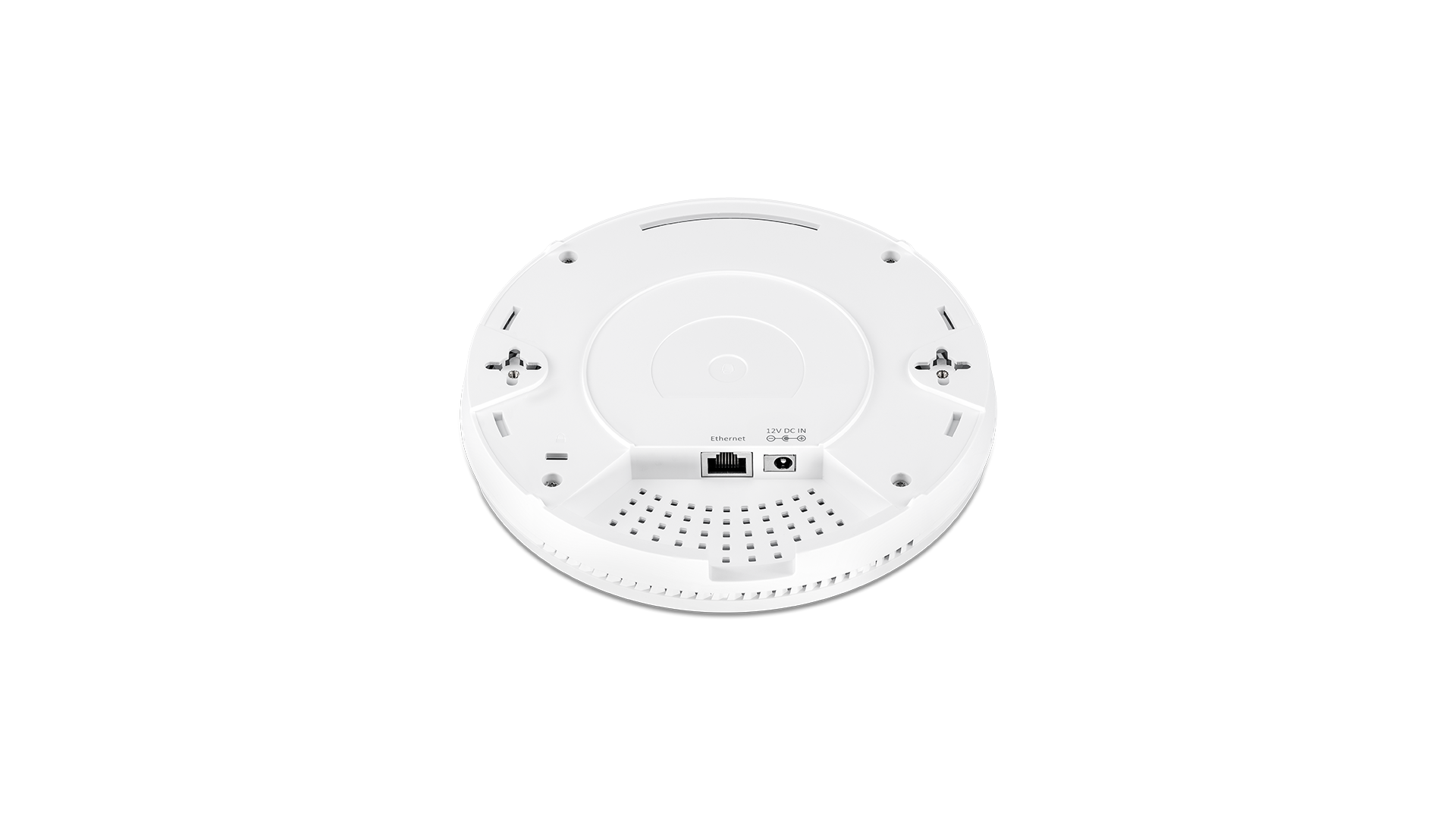

Thanks to the power supply via power over Ethernet as per IEEE 802.3af, the LANCOM LW-600 operates at any PoE-powered Ethernet port. Alternatively, the access point operates with a power supply unit supplied with various plug adapters (EU, UK, US, AU).

Wi-Fi security standard WPA3

WPA3, the successor of WPA2, offers important upgrades and security features for small ("WPA3-Personal") and large networks ("WPA3-Enterprise"). WPA3-Personal uses the modern and secure authentication method Simultaneous Authentication of Equals (SAE).

Secure integration of external users

Offer your guests a secure and user-friendly hotspot with the LANCOM LW-600. This requires the access point to be operated directly on a Public Spot-enabled LANCOM device or via the LANCOM Management Cloud together with a Public Spot-enabled LANCOM device in your network. As a hotspot provider, rest assured that your internal network remains fully isolated from the hotspot.

Uncompromising additional services for maximum future security

The LANCOM LW-600 supports the fast WLAN standard IEEE 802.11ax (Wi-Fi 6), so that you are technically well equipped for future challenges. LANCOM Systems gives you a 3-year warranty on the LW-600, which can easily be extended to 5 years with the Warranty Basic Option S or the Warranty Advanced Option S. And you also benefit from the high LANCOM standards on the software side: several times a year you receive free major releases of the LCOS LX operating system with new, future-proof features. Even if a product is no longer avail­able, we offer free major releases, critical security fixes (security updates) based on the last available software version, and free technical manufac­turer support as part of the LANCOM software lifecycle management for at least another 2 years.

powered by:


Further information & news

Wi-Fi 6: More throughput, lower latency times

What exactly do these key words behind the new Wi-Fi standard Wi-Fi 6 signify? Especially in so-called "high-density environments", i.e. in areas with large numbers of Wi-Fi clients, Wi-Fi 6, alias IEEE 802.11ax, brings more stability and reliability to intensively used wireless LANs by making more efficient use of the available bandwidths and channels

How you can benefit from the technology with the ax-enabled LANCOM devices is shown in our Wi-Fi 6 video, on the technology page, and in the whitepaper:

Whitepaper: The Wi-Fi standard Wi-Fi 6

Accessories & options

Service & support

Included services

  • 3 years hardware warranty
  • Free technical support for end customers with valid warranty directly from LANCOM
  • Free technical support for LANcommunity partners with valid warranty directly from LANCOM (availability: 8-10h / 5d, response time: 4h-1d (depending on partner level))

Charged warranty extension to 5 years is optionally available.

Optional services

Click below to get more information on these service & support products as well as the item numbers for convenient additional booking.

Click below to get more information on these service & support products as well as the item numbers for convenient additional booking.


Notes: Times are given in hours (h) per days (d). The options are available for different service categories (S, M, L, XL) and can be easily added using the item numbers. The service category of each LANCOM device can be found in the LANCOM price list.


  • LANcare Advanced
    Service package per device with security updates and support entitlement (support access required) until EOL (min. 5 years), 5 years advance replacement with delivery of the replacement device within one business day
    Availability: 8h / 5d, delivery: NBD
    Item numbers: S: 10730, M: 10731, L: 10732, XL: 10733
  • LANcare Basic
    Service package per device with security updates and support entitlement (support access required) until EOL (min. 5 years), 5 years replacement service with shipment of the replacement device within 5 days
    Availability: 8h / 5d, shipment: 5 days
    Item numbers: S: 10720, M: 10721, L: 10722, XL: 10723
  • LANCOM MSP-Care 24/7
    Extended manufacturer support incl. 24/7 emergency hotline for projects
    Availability: 24h / 7d
    (on request)
